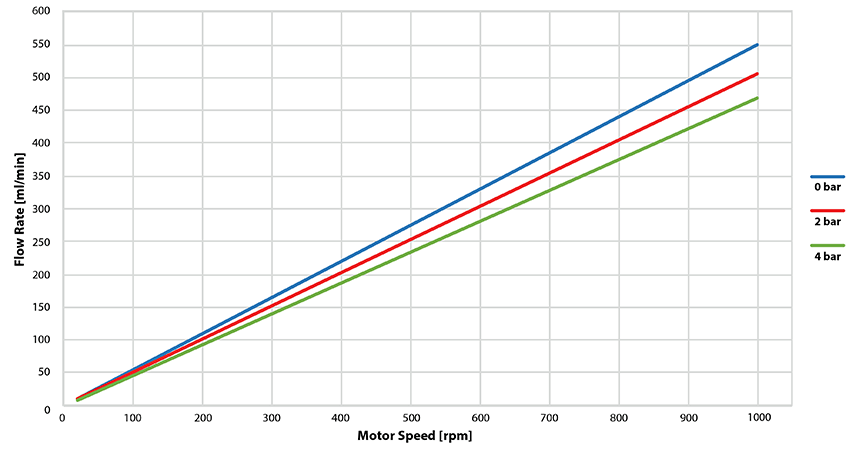

Flow Rate Maximum

Eccentric Shaft 3°

30 lph (500 mlpm)

30 lph (500 mlpm)

Flow Rate Minimum

Eccentric Shaft 3°

0.06 lph (1 mlpm)

0.06 lph (1 mlpm)

Pressure

Temperature of Fluid < 40°C (104°F)

4 bar (58 psi)

4 bar (58 psi)

Temperature of Fluid > 40°C (104°F)

4 bar (58 psi)

4 bar (58 psi)

Maximum Temperature

Fluid

60°C (146°F)

60°C (146°F)

Minimum Temperature

Fluid

4°C (39,2°F)

4°C (39,2°F)

Pump Speed Range

rpm

1 – 1,000

1 – 1,000

Suction Lift Dry

Eccentric Shaft 3°

1 m (3.28 ft)

1 m (3.28 ft) 

Volume Specifications

Approximated Volume per Revolution at Free Output

0,59 ml (3°)

0,59 ml (3°)

Approximated Filling Volume Without Connectors

5.2 ml

5.2 ml 

Connection Specification (Standard)

Connectors

Hosebarb 4 mm

Hosebarb 4 mm

Position of Connectors

Front

Front

Product Wetted Materials (Standard)

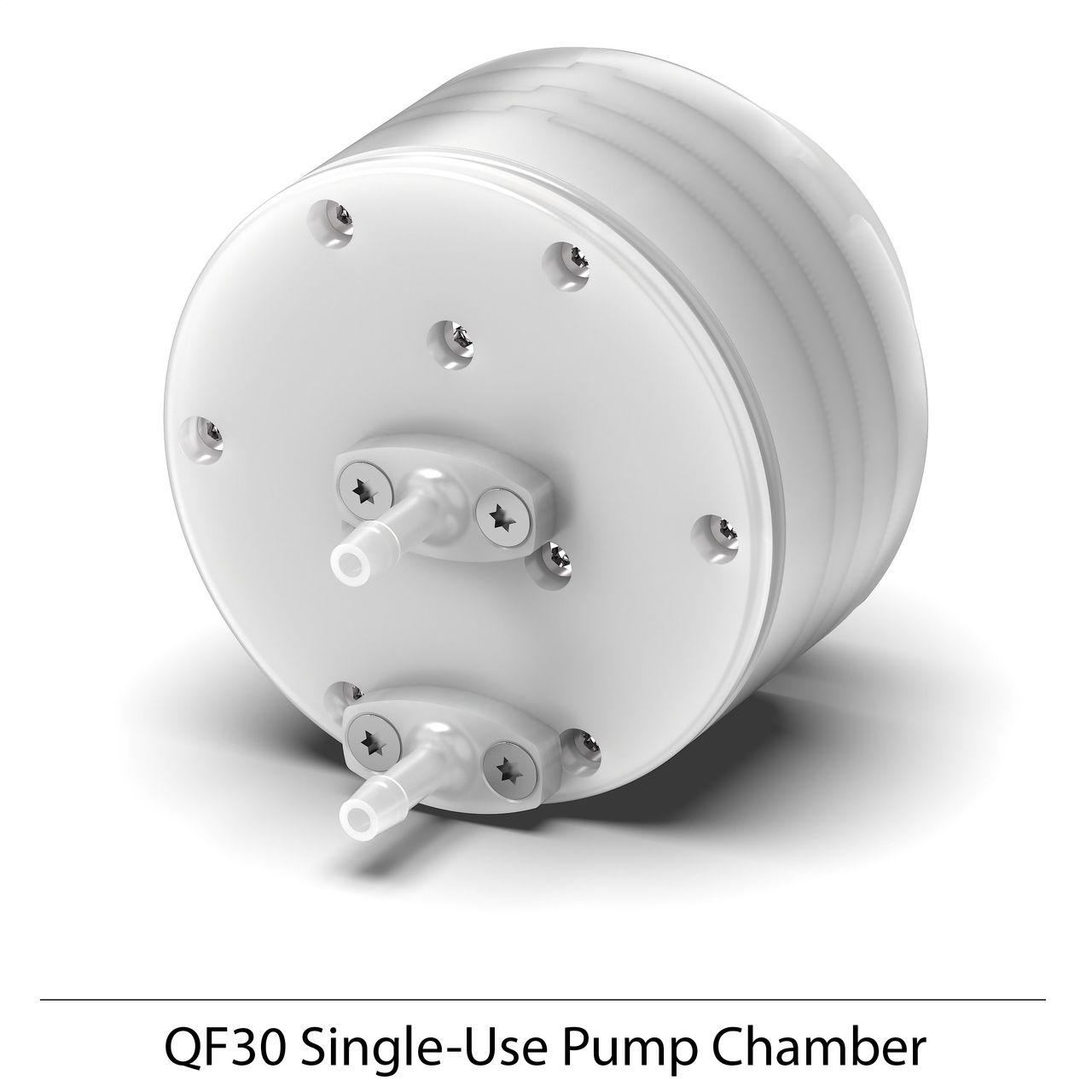

Pump Chamber

PP

PP

Valve Plate

PP

PP

Diaphragms

TPE

TPE

Valves

EPDM

EPDM

O-rings

EPDM

EPDM

Certificates/Proofs (Optional)

Elastomer (product wetted)

USP <88> Cl. VI; FDA21CFR177;

BSE/TSE Safe

USP <88> Cl. VI; FDA21CFR177;

BSE/TSE Safe

Motor

Type

Brushless DC

—

Rated Speed

3500 min-1

3000 min-1

Voltage

100-264 VAC

3 x 230V / 3 x 400V

Power

250 W

—

Pump Dimension with Motor and Housing

Length*

342 mm (13.46")

287 mm (11.30")

Width*

200 mm (7.87")

100 mm (3.94")

Height*

217 mm (8.54")

130 mm (5.12")

Pump Weight with Motor and Housing

8,7 kg (19.1 lb)

6.1 kg (13.4 lb)
