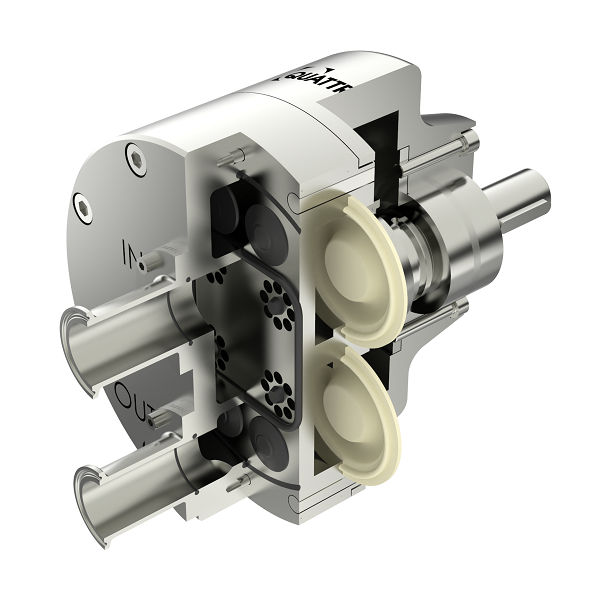

Designed for the gentle and safe transfer of sensitive liquids. The unique pumping mechanism uses four diaphragms driven by an eccentric shaft connected to an electric motor. This design ensures smooth, low-pulsation flow without the use of mechanical seals, minimizing the risk of contamination.

• Flow rates of 0.06-16,000L/h
• Pump heads available in Single-Use and Multiple-Use
• Linear flow characteristic and gentle, low-pulsation operation with minimal particle generation
• Available as bench top and OEM versions and as various drive options (HT, Q-Control, ATEX)
• Ideal for critical applications in biopharma manufacturing, including Tangential Flow Filtration (TFF), Chromatography (RFC), and Sterile Virus Filtration

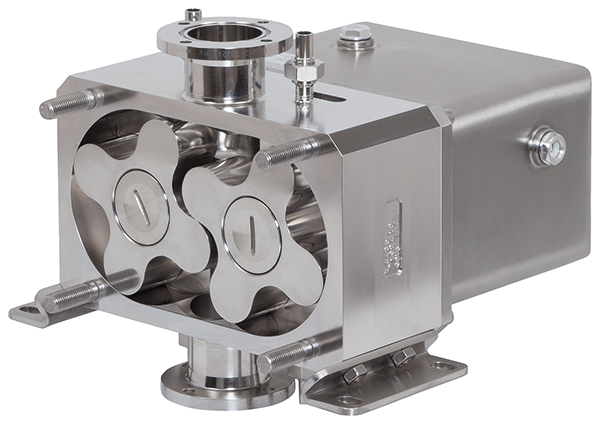

Rotary lobe pumping technology offers ideal conditions for use in commercial processes with large flow rates. The contactless running of the pump elements in these multi-use pumps is perfect for aseptic applications due to the complete elimination of abrasion and product contamination.

• Sterility by design with full CIP/SIP compatibility
• Regulatory confidence built in, using FDA- and biopharma grade seals
• Interchangeable front-loaded single or double mechanical seal layout
• Application-specific lobe design and selection
