Product Information
|
Standard Motor |
QF1200SU-AC |
QF1200SU-M |

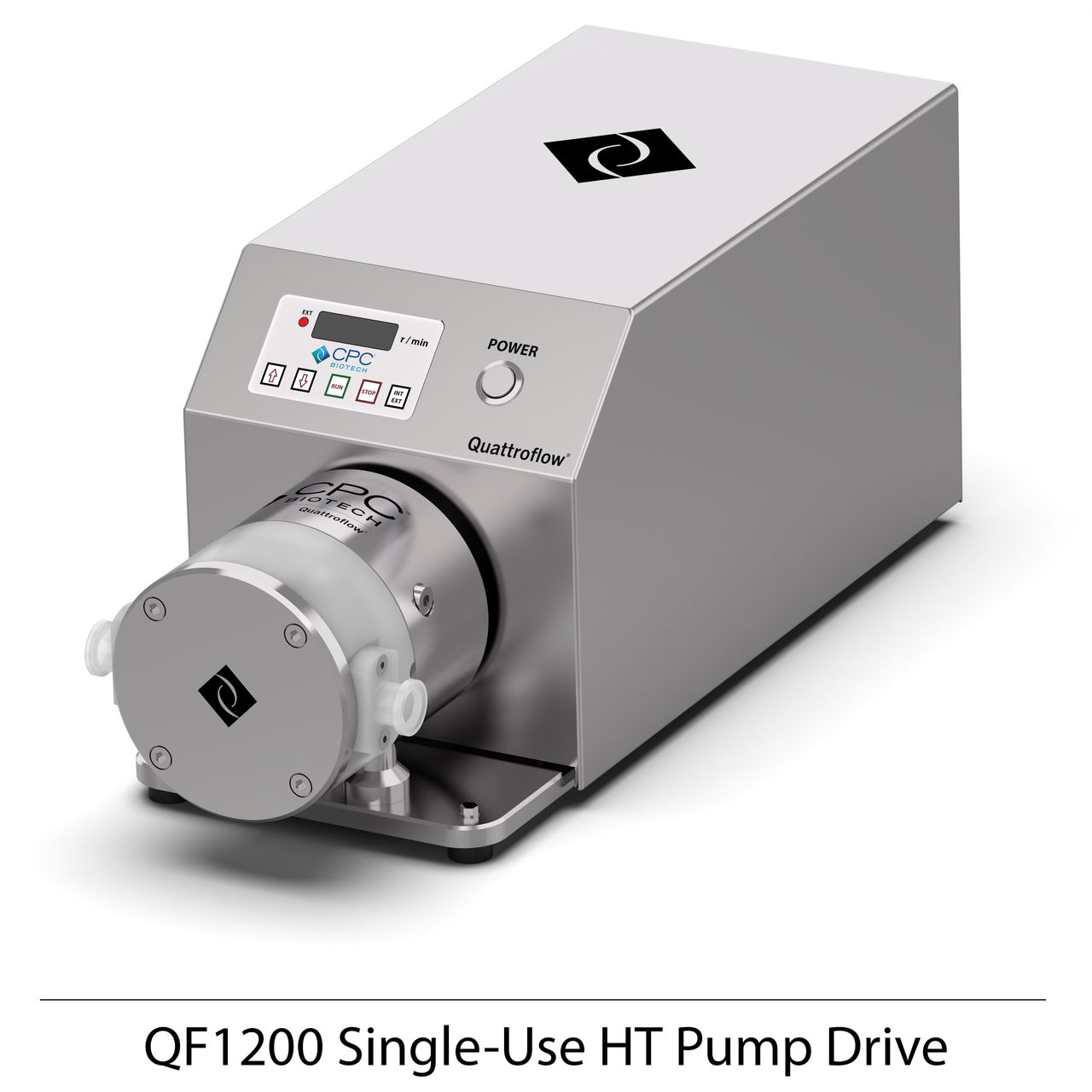

QF1200SU-HT |
QF1200SU-OEM |

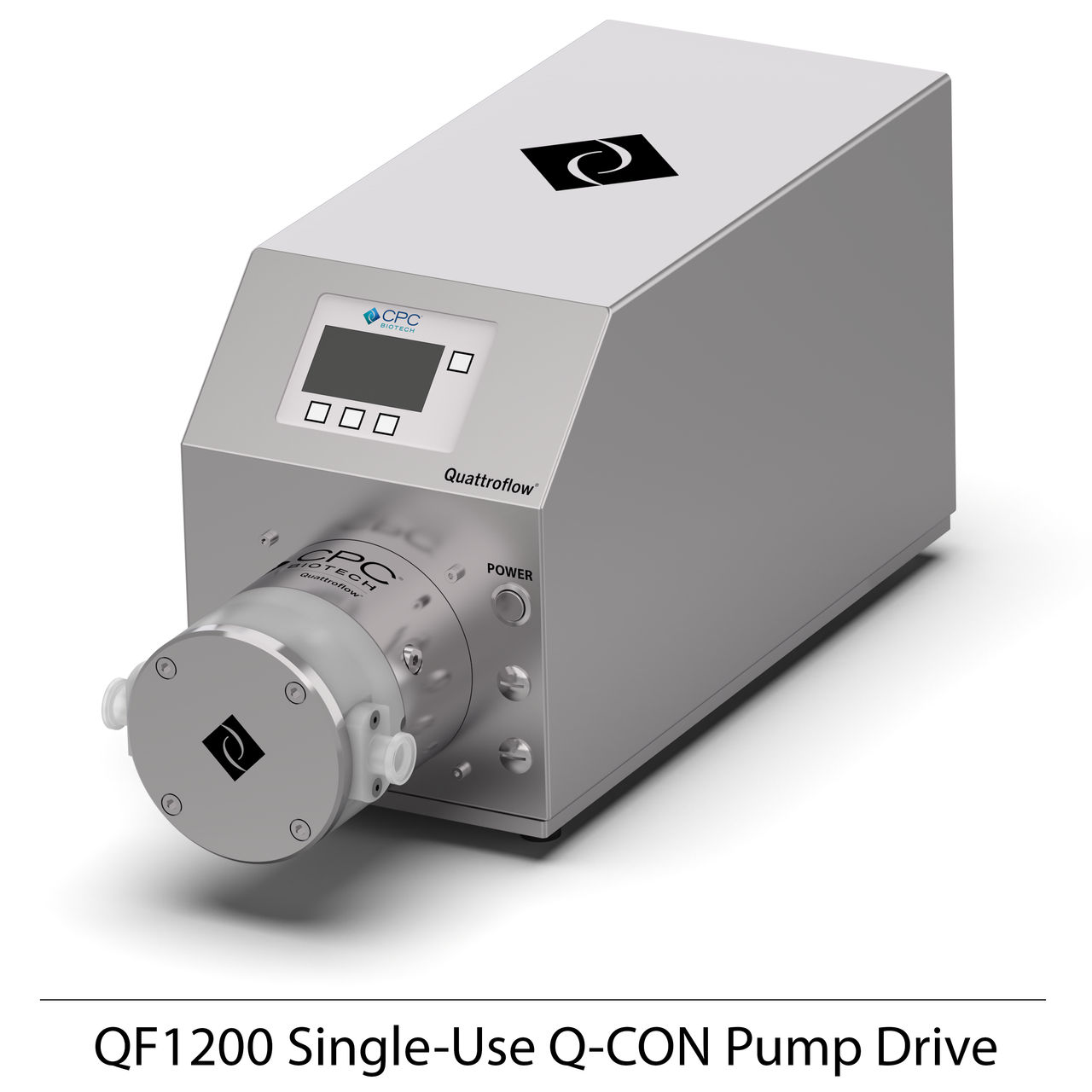

QF1200SU-QCON |
|
|---|---|---|---|---|---|---|
|
Flow Rate Maximum |
Eccentric Shaft 3° |
750 lph (12.5 lpm) |
750 lph (12.5 lpm) |
750 lph (12.5 lpm) |
750 lph (12.5 lpm) |
|
|
Eccentric Shaft 5° |
1200 lph (20 lpm) |
1200 lph (20 lpm) |
1200 lph (20 lpm) |
1200 lph (20 lpm) |
1200 lph (20 lpm) |
|
|
Flow Rate Minimum* |
Eccentric Shaft 3° |
10 lph (0.167 lpm) |
10 lph (0.167 lpm) |
10 lph (0.167 lpm) |
10 lph (0.167 lpm) |
|
|
Eccentric Shaft 5° |
20 lph (0.333 lpm) |
20 lph (0.333 lpm) |
6 lph (0.1 lpm) |
6 lph (0.1 lpm) |
6 lph (0.1 lpm) |
|
|
Pressure |
Temperature of Fluid < 40°C (104°F) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
|
Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
|
|
Maximum Temperature |
Fluid |
60°C (140°F) |
50°C (122°F) |
60°C (140°F) |
60°C (140°F) |
60°C (140°F) |
|
Autoclave |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
|
|
Pump Speed Range |
rpm |
30 – 2,400 |
30 – 2,400 |
10 – 2,400 |
10 – 2,400 |
10 – 2,400 |
|
Suction Lift Dry at 1800 rpm |
Eccentric Shaft 3° |
2.5 – 3 m (8.2-9.8 ft) |
2-2.5 m (6.6-8.2 ft) |
- |
- |
|
|
Eccentric Shaft 5° |
4 – 4.5 m (13.1-14.7 ft) |
3-3.5 m (9.8-11.5 ft) |
4 – 4.5 m(13.1-14.7 ft) |
4 - 4.5 m (13.1 - 14.7 ft) |
4 – 4.5 m(13.1-14.7 ft) |
|
|
Volume Specifications |
Approximated Volume per Revolution at Free Output |
9.6 ml (5°)5.8 ml (3°) |
9.6 ml (5°)5.8 ml (3°) |
9.6 ml (5°) |
9.6 ml |
9.6 ml (5°) |
|
Filling Volume Without Connectors |
75 ml |
75 ml |
75 ml |
75 ml |
75 ml |
|
|
Connection Specification (Standard) |
Connectors |
3/4" TC |
3/4" TC |
3/4" TC |
3/4" TC |
3/4" TC |
|
Position of Connectors |
Inline |
Front |
Inline |
Inline |
Inline |
|
|
Number of Flow Directions |
4 |
4 |
4 |
4 |
4 |
|
|
Product Wetted Materials (Standard) |
Pump Chamber |
PP |
PE injection molded** |
PP |
PP |
PP |
|
Valve Plate |
PP |
PE injection molded** |
PP |
PP |
PP |
|
|
Diaphragms |
TPE |
TPE |
TPE |
TPE |
TPE |
|
|
Valves |
EPDM |
EPDM |
EPDM |
EPDM |
EPDM |
|
|
O-rings |
EPDM |
EPDM |
EPDM |
EPDM |
EPDM |
|
|
Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; FDA21CFR177; |
USP <88> Cl. VI; FDA21CFR177; |
USP <88> Cl. VI; FDA21CFR177; |
USP <88> Cl. VI; FDA21CFR177; |
USP <88> Cl. VI; FDA21CFR177; |
|
Motor (Standard) |
Rated speed |
1375 min-1 (50 Hz) |
1375 min-1 (50 Hz) |
2200 min-1 |
2400 min-1 |
2200 min-1 |
|
Voltage |
230/400 V |
230/400 V |
110 – 230 V |
3 x 230V / 3 x 400V |
110 – 230 V |
|
|
Power |
0.37 kW |
0.37 kW |
0.485 kW |
- |
0.485 kW |
|
|
Pump Dimension with Motor and Housing |
Length |
497 mm (19.56") |
503 mm (19.8") |
499 mm (19.65") |
387 mm (15.24") |
586mm (23,07) |
|
Width |
159 mm (6.26") |
159 mm (6.26") |
200 mm (7.87") |
159 mm (6.26") |
200 mm (7.87") |
|
|
Height |
210 mm (8.27") |
210 mm (8.27") |
220 mm (8.66") |
163 mm (6.42") |
264mm (10,39) |
|
|
Pump Weight with Motor and Housing |
|
21 kg (46 lb) |
20 kg (44 lb) |
21 kg (46 lb) |
13.6 kg (30 lb) |
26,2kg (57,58 lb) |
Other connection specifications, materials, and motors available on request.
* When using pump with control box 20 lph (0.333 lpm) and 40 lph (0.667 lpm)
** Connectors PP

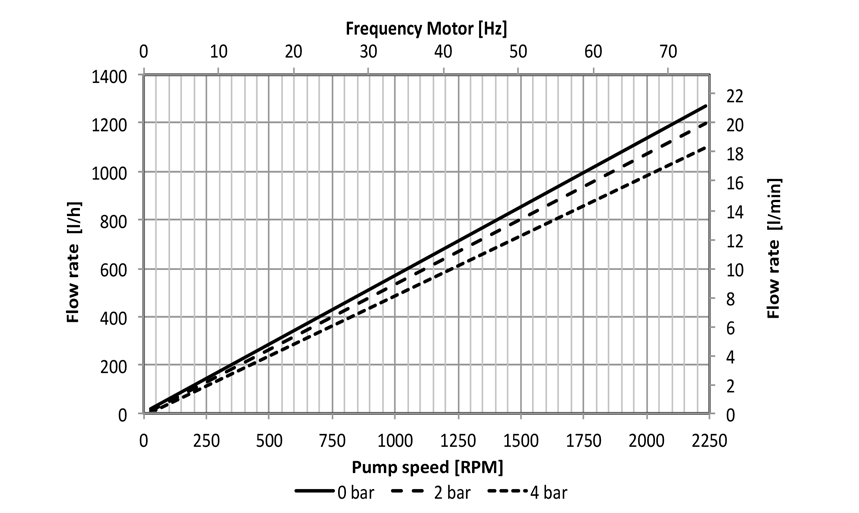

QF1200SU Eccentric Shaft 5° – Liter

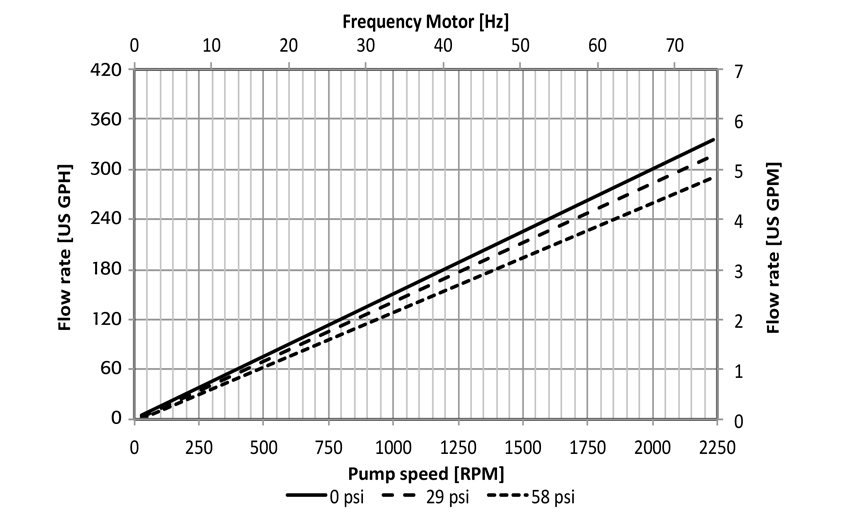

QF1200SU Eccentric Shaft 5° – Gallon

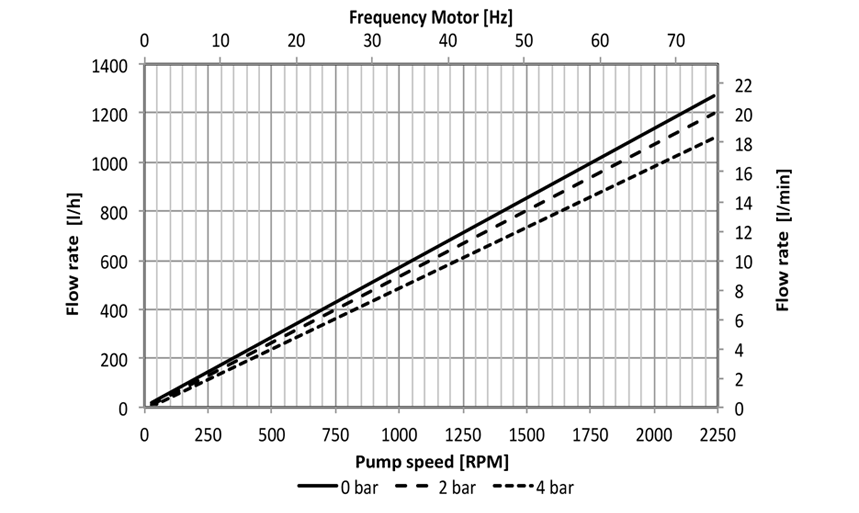

QF1200SU-M Eccentric Shaft 5° – Liter

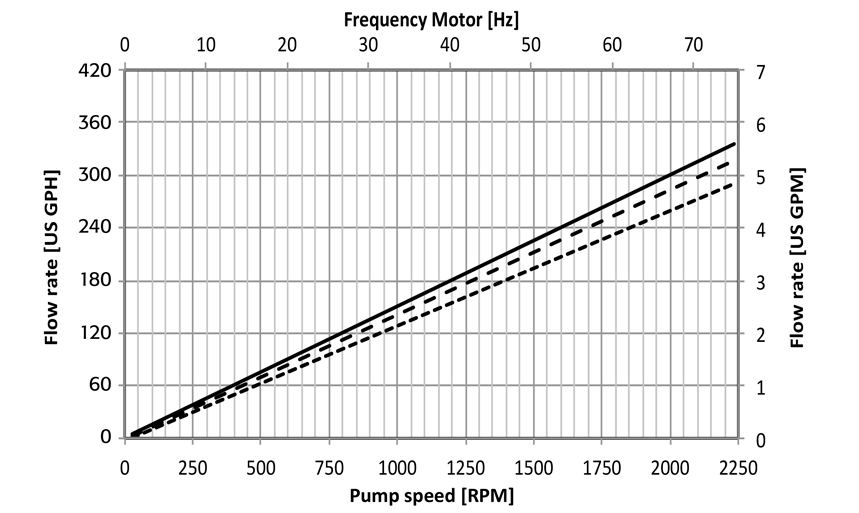

QF1200SU-M Eccentric Shaft 5° – Gallon

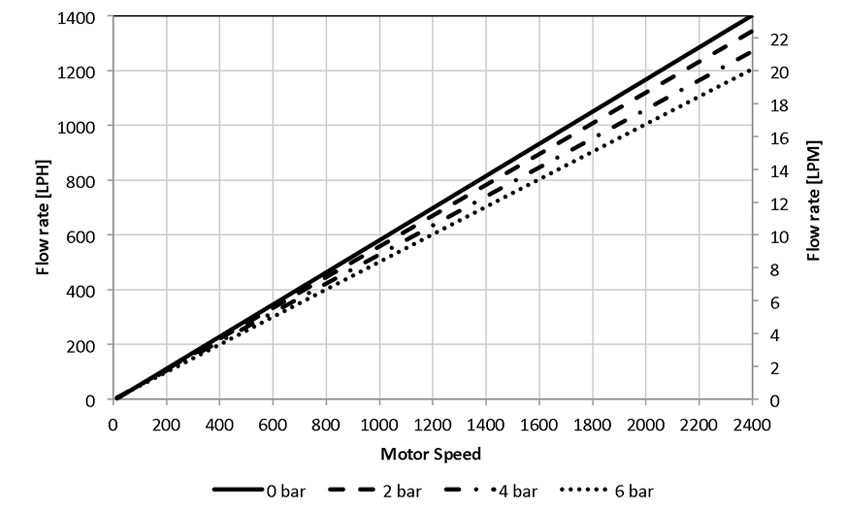

QF1200SU-HT Eccentric Shaft 5° – Liter

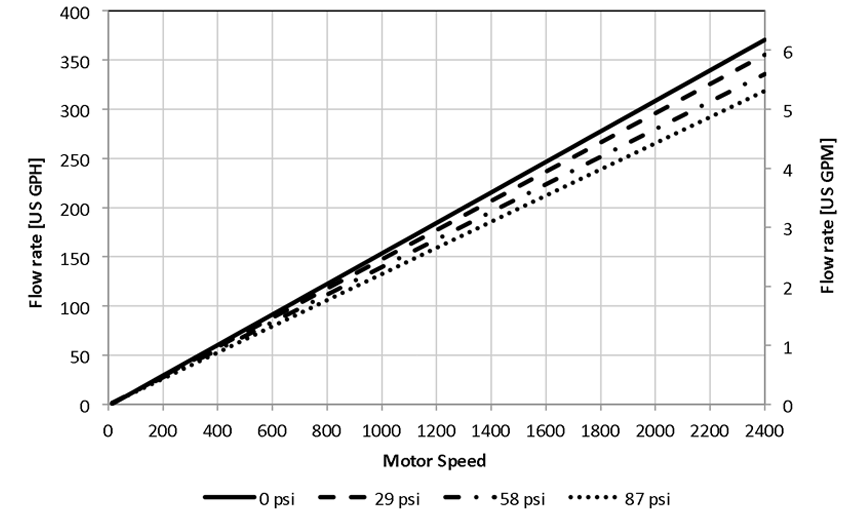

QF1200SU-HT Eccentric Shaft 5° – Gallon
