Flow Rate Maximum

Eccentric Shaft 5°

2,500 lph (41 lpm)

2,500 lph (41 lpm)

2,500 lph (41 lpm)

Flow Rate Minimum

Eccentric Shaft 5°

50 lph (0.8 lpm)

25 lph (0.41 lpm)

25 lph (0.41 lpm)

Pressure

Temperature of Fluid < 40°C (104°F)

4 bar (58 psi)

4 bar (58 psi)

4 bar (58 psi)

Temperature of Fluid > 40°C (104°F)

4 bar (58 psi)

4 bar (58 psi)

4 bar (58 psi)

Maximum Temperature

Fluid

60°C (140°F)

60°C (140°F)

60°C (140°F)

Autoclave

130°C (266°F)

130°C (266°F)

130°C (266°F)

Pump Speed Range

rpm

30-1750

20-1800

20-1800

Suction Lift Dry at Maximum
Speed

Eccentric Shaft 5°

4 - 4.5 m (13.1 - 14.7 ft)

4 - 4.5 m (13.1 - 14.7 ft)

4 - 4.5 m (13.1 - 14.7 ft)

Volume Specifications

Approximated Volume per Revolution at
Free Output

27 ml

27 ml

27 ml

Approximated Filling Volume Without
Connectors

210 ml

210 ml

210 ml

Connection Specification
(Standard)

Connectors

1" TC

1" TC

1" TC

Position of Connectors

Front

Front

Font

Product Wetted Materials
(Standard)

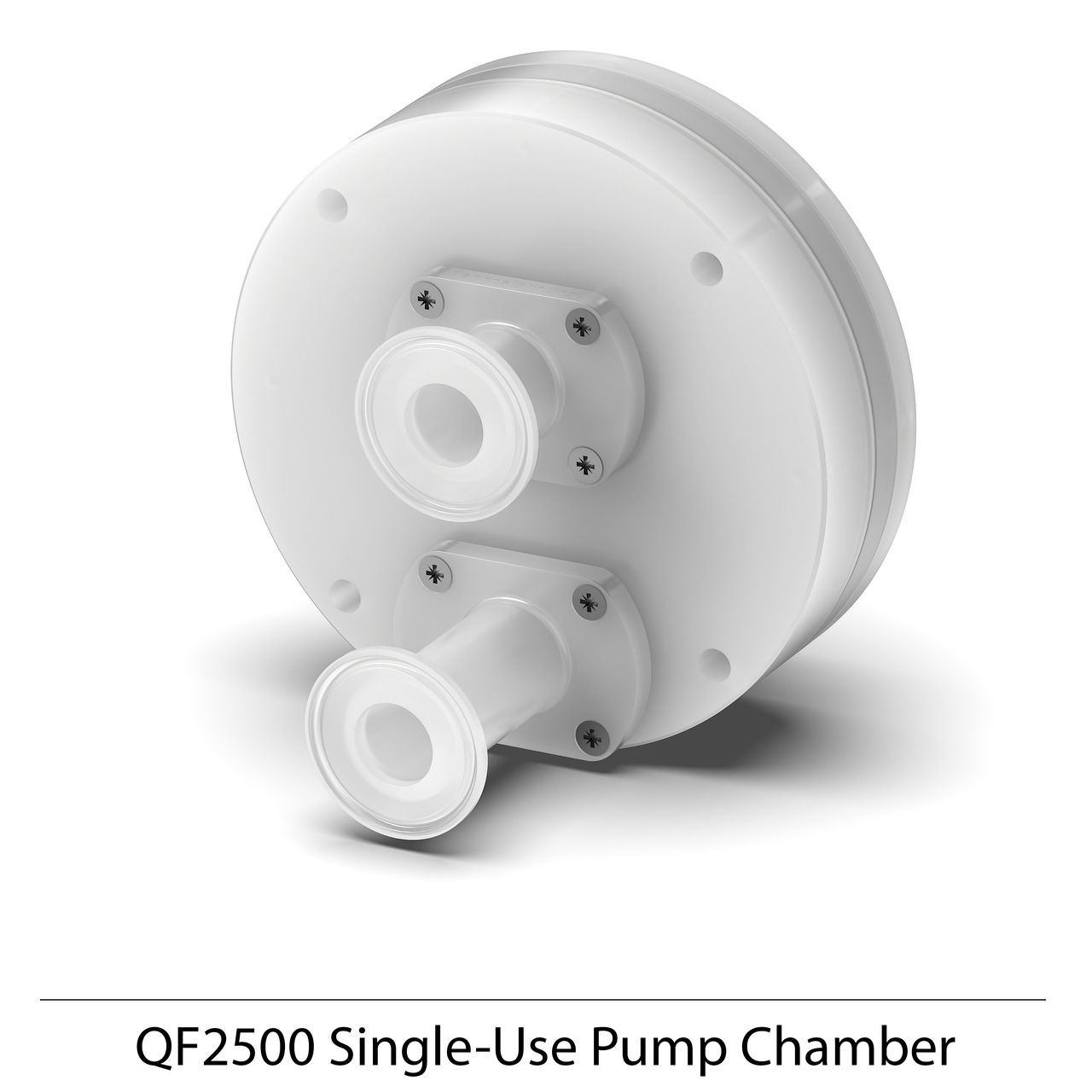

Pump Chamber

PP

PP

PP

Valve Plate

PP

PP

PP

Diaphragms

TPE

TPE

TPE

Valves

EPDM

EPDM

EPDM

O-rings

EPDM

EPDM

EPDM

Certificates/Proofs (Optional)

Elastomere (product wetted)

USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe

USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe

USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe

Motor (Standard)

Rated speed @ 50Hz

1445 min-1

1800 min-1

1800 min-1

Voltage

230/400 V

400 V

3 x 230V / 3 x 400V

Power

1.5 kW

1.5 kW

-

Pump Dimension with Motor and
Housing

Length

815 mm (32.09")

824 mm (32.44")

516 mm (20.32")

Width

215 mm (8.46")

275 mm (10.83")

187 mm (7.36")

Height

295 mm (11.61")

382.5 mm (15.06")

210 mm (8.27")

Pump Weight with Motor and
Housing

56 kg (123 lb)

60 kg (148 lb)

23.4 kg (51.6 lb)
