Product Information
|
Description |
Unit |
QF5kSU-AC |
QF5kSU-HT |
QF5kSU-QCON |
QF5kSU-CD |
||
|---|---|---|---|---|---|---|---|
|
Flow Rate |
Eccentric Shaft 5° |
Min. |
lph |
200 |
50 |
||
|
Flow Rate |
Eccentric Shaft 5° |
Max. |
lph |
6,000 |
5,000 |
||
|
Pumping Pressure |
Media Temperature <40°C |
Max. |
bar |
4 |
|||
|
Pumping Pressure |
Media Temperature <40°C |
Continuous |
bar |
4 |
|||
|
Pumping Pressure |
Media Temperature <40°C |
Max. |
bar |
4 |
|||
|
Pumping Pressure |
Media Temperature >40°C |
Continuous |
bar |
4 |
|||
|
Pumping Pressure |
Neg. Inlet Pressure |
Continuous |
bar |
-0.2 |
|||
|
Temperature |
|
Min. |
°C (°F) |
4 (39) |
|||
|
Temperature |
|
Max. |
°C (°F) |
60 (140) |
|||
|
Pump Speed |
|
Min. |
rpm |
30 |
13 |
||
|
Pump Speed |
|
Max. |
rpm |
1,200 |
1,050 |
||
|
Displacement Volume |
Eccentric Shaft 5° |
|
ml/rev |
91 |
|||
|
Connection Specification |
Size |
|
Inch |
1.5" (TriClamp) |
|||
|
Dimensions |
Pump Unit |
Length |
mm |
870 |
851 |
950 |
320 |
|
Dimensions |
Pump Unit |
Width |
mm |
250 |
275 |
275 |
320 |
|
Dimensions |
Pump Unit |
Height |
mm |
333 |
385 |
404.5 |
440 |
|
Pump Weight |
Pump Unit |
|
kg |
85 |
100 |
105 |
60 |
|
IP-Protection Class |
Pump Unit |
|
--- |
55 |
54 |
54 |
55 |
|
Filling Volume |
Without Connection |
|
ml |
788 |
|||
|
Surface |
Product Wetted |
|
cm2 |
1,586 |
|||
|
Media |
Temperature |
Max. |
°C (°F) |
60 (140) |
|||
|
Sterilization |
Autoclave |
Max. |
°C (°F) |
130 (266) |
|||
|
Sterilization |
Gamma Irradiation |
Max. |
kGy |
50 |
|||
|
Material |
Product Wetted |
Pump Housing |
--- |
PP |
|||
|
Material |
Product Wetted |
Valve Plate |
--- |
PP |
|||
|
Material |
Product Wetted |
Diaphragm |
--- |
TPE |
|||
|
Material |
Product Wetted |
Valves |
--- |
EPDM |
|||
|
Material |
Product Wetted |
O-rings |
--- |
EPDM |
|||
Other connection specifications, materials, and motors available on request.
*3 x 230 V as an option

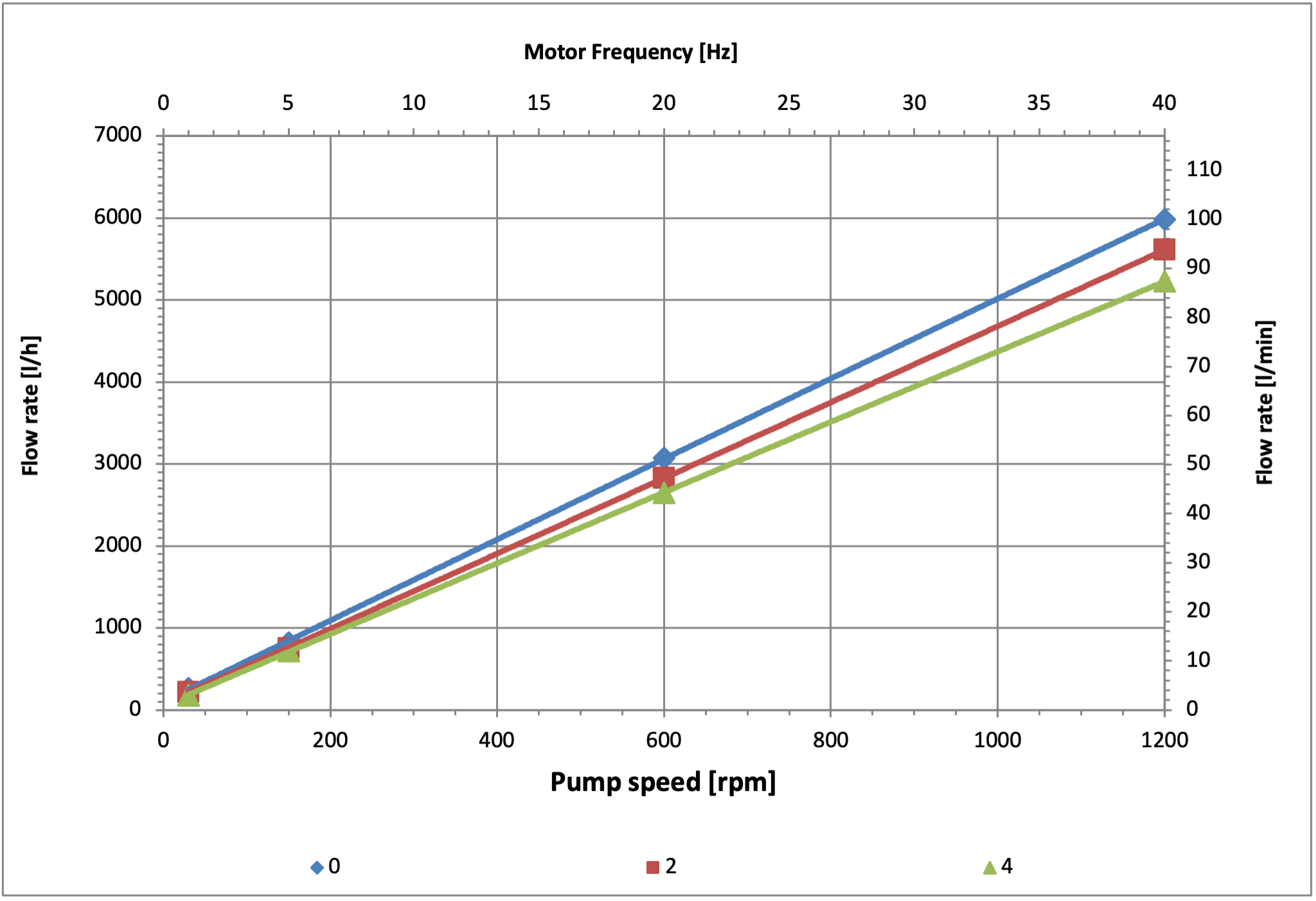

Quattroflow® QF5kSU Performance Chart

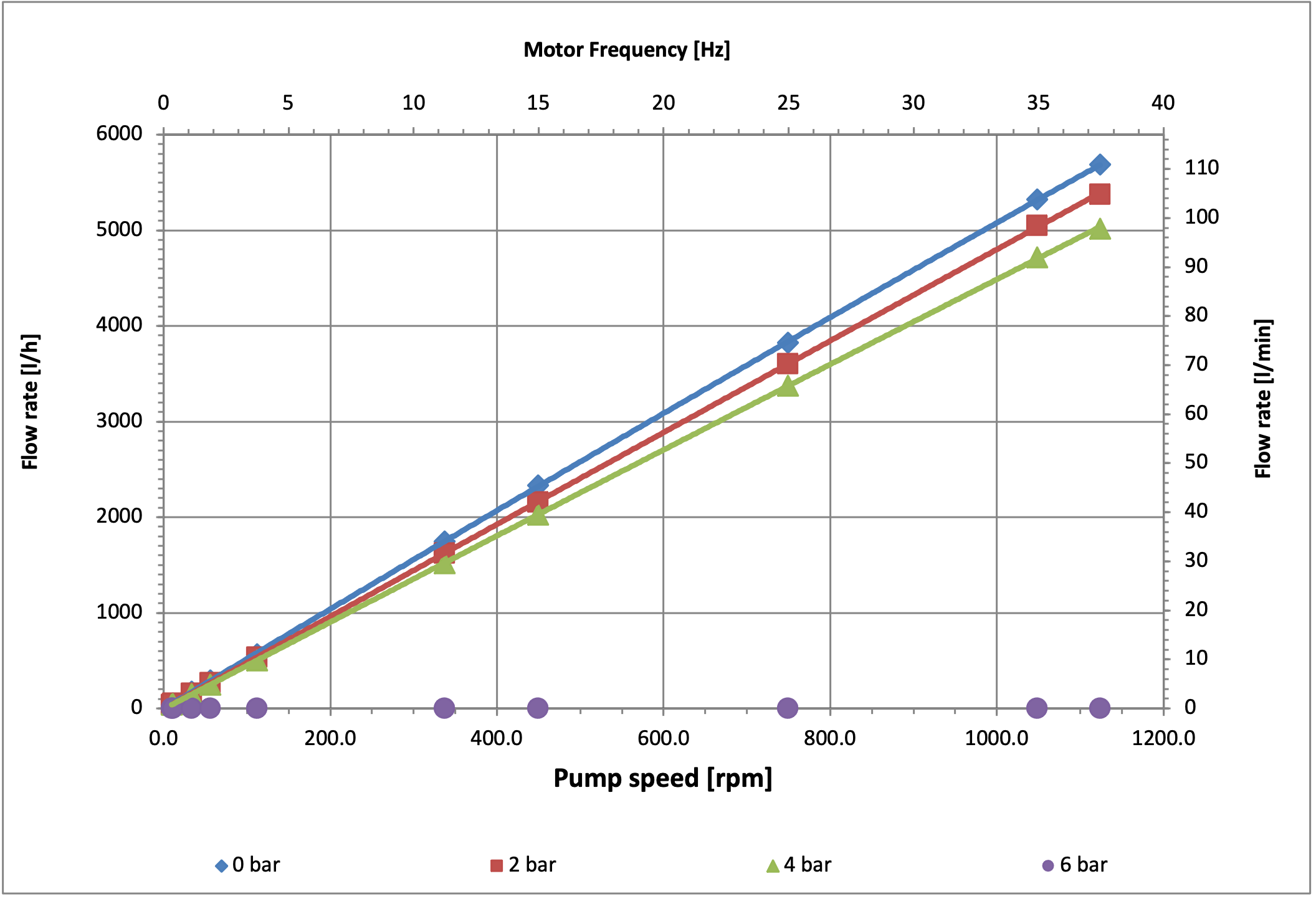

Quattroflow® QF5kCD Performance Chart

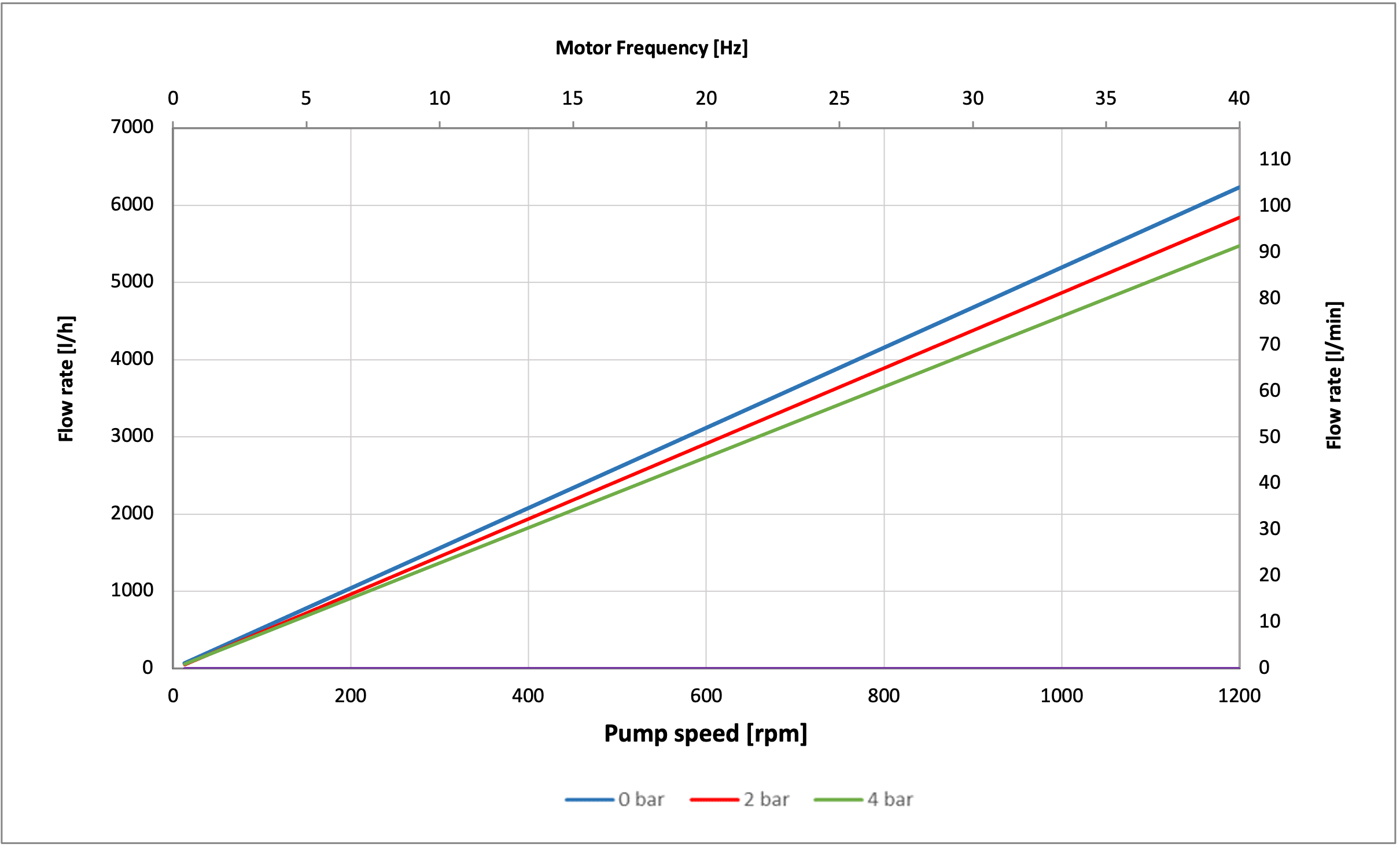

Quattroflow® QF5kHT Performance Chart
Brochures
Manuals
