Product Information
|
Description |

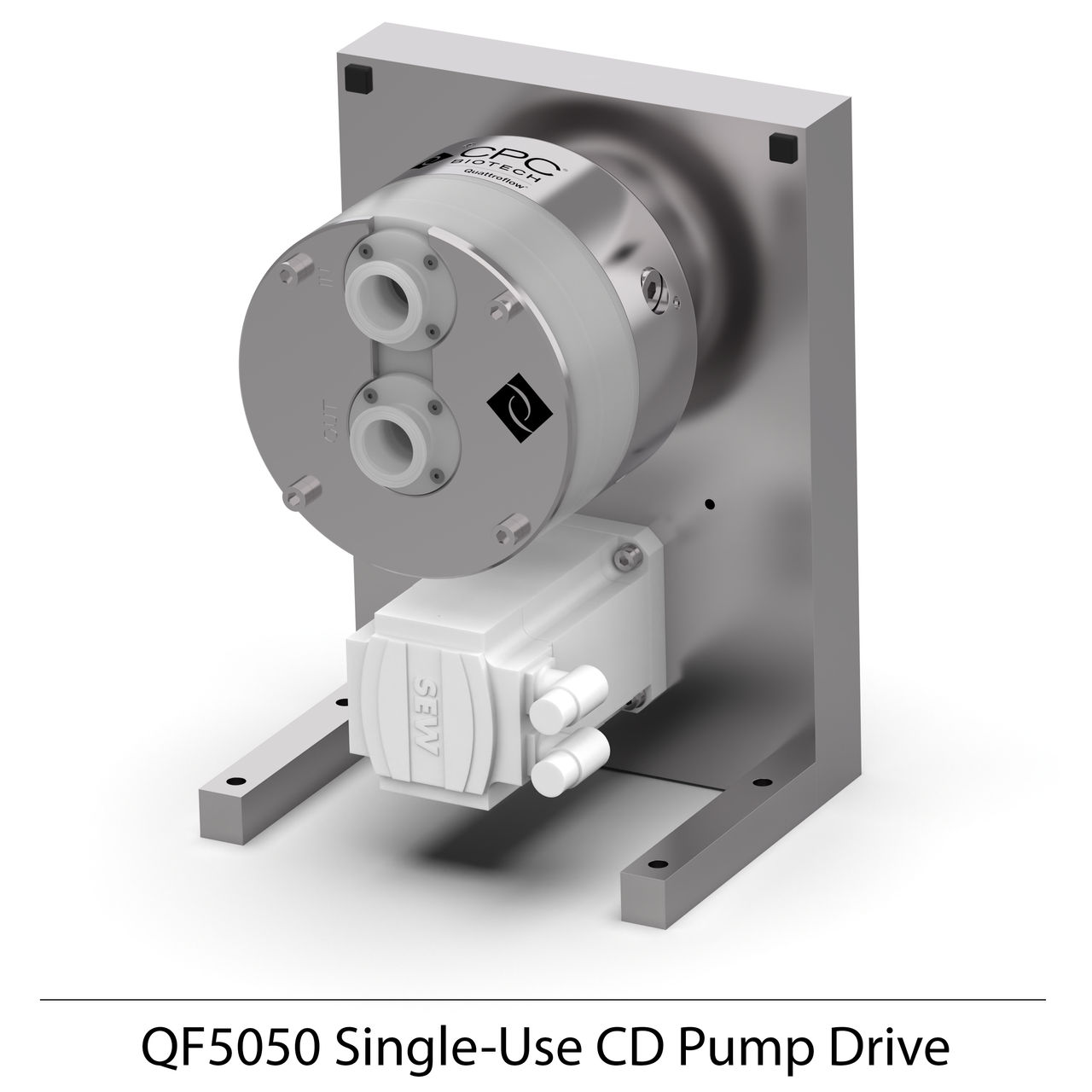

QF5050SU-CD |
|
|---|---|---|
|
Flow Rate Maximum |
Eccentric Shaft 6° |
5000 lph (83 lpm) |
|
Flow Rate Minimum |
Eccentric Shaft 6° |
50 lph (0.83.lpm) |
|
Pressure |
Temperature of Fluid < 40°C (104°F) |
4 bar (58 psi) |
|
Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
|
|
Maximum Temperature |
Fluid |
60°C (140°F) |
|
Autoclave |
130°C (266°F) |
|
|
Suction Lift Dry at 1,200 rpm |
Eccentric Shaft 6° |
4 – 4.5 m (13.1-14.7 ft) |
|
Volume Specifications |
Approximated Volume per |
95 ml |
|
Filling Volume Without Connectors |
820 ml |
|
|
Connection Specification (Standard) |
Connectors |
1.5" TC |
|
Position of Connectors |
Front |
|
|
Product Wetted Materials (Standard) |
Pump Chamber |
PP |
|
Valve Plate |
PP |
|
|
Diaphragms |
TPE |
|
|
Valves |
EPDM / SS316L |
|
|
O-rings |
EPDM |
|
|
Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; FDA21CFR177; |
|
Motor |
Rated speed |
3000 min -1 (2.66:1 reduction) |
|
Voltage |
400 V |
|
|
Power |
3 kW |
|
|
Pump Dimension with Motor and Housing |
Length |
440 mm (17.32") |
|
Width |
325 mm (12.80") |
|
|
Height |
320 mm (12.60") |
|
|
Pump Weight with Motor and Housing |
|
51 kg (112 lb) |
Other connection specifications, materials, and motors available on request.

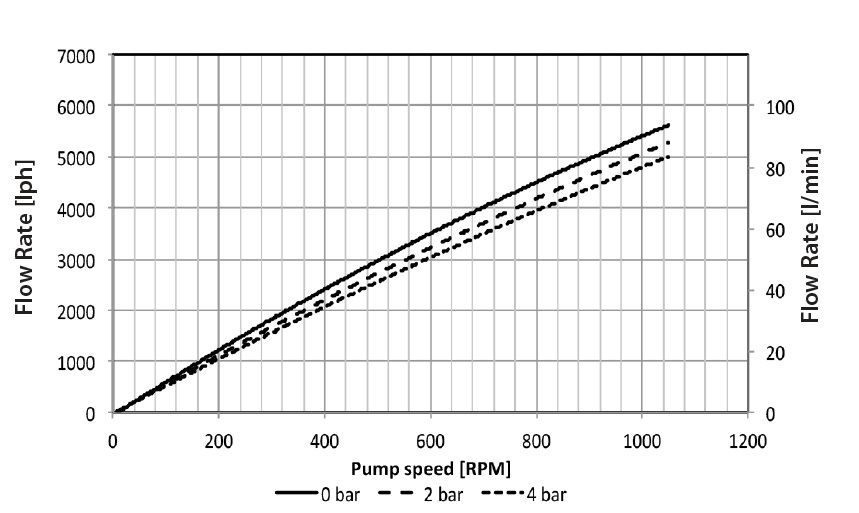

Flow Rate / Pump Speed in Liter (QF5050SU)

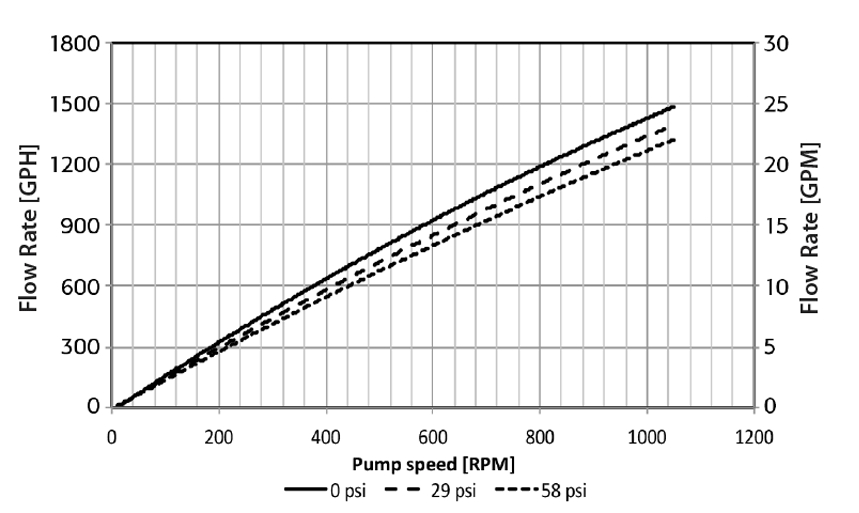

Flow Rate / Pump Speed in Gallons (QF5050SU)
