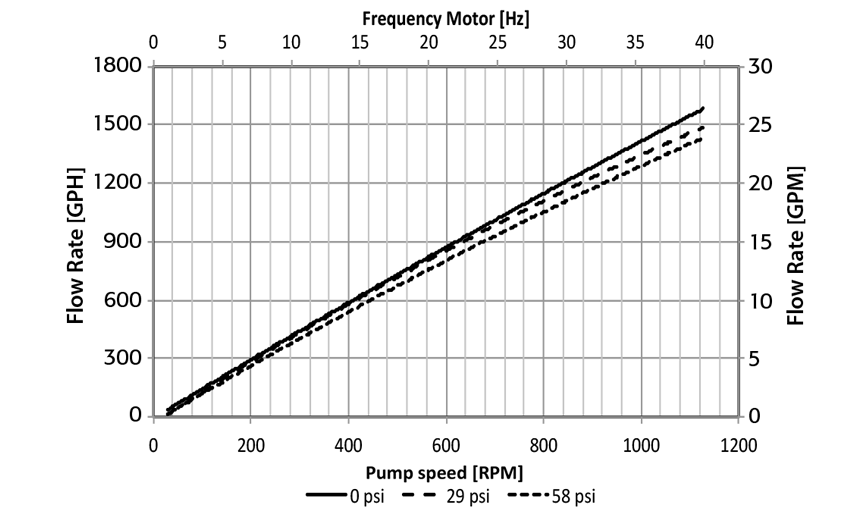

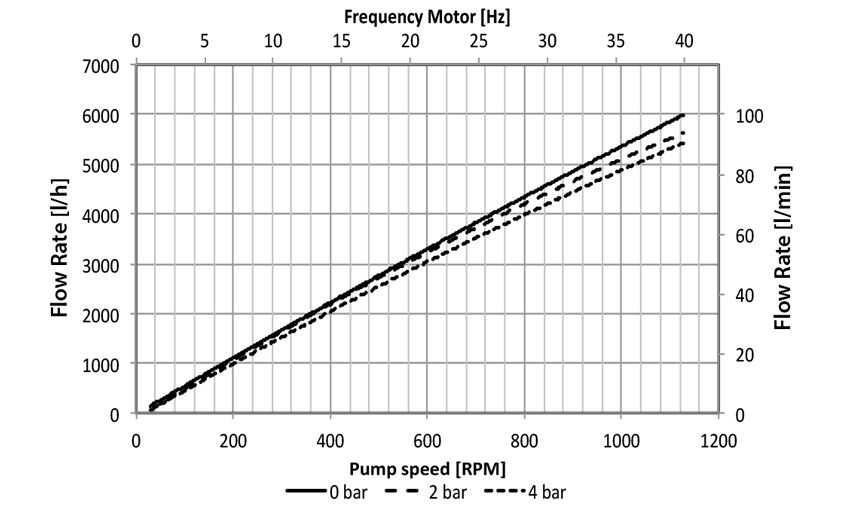

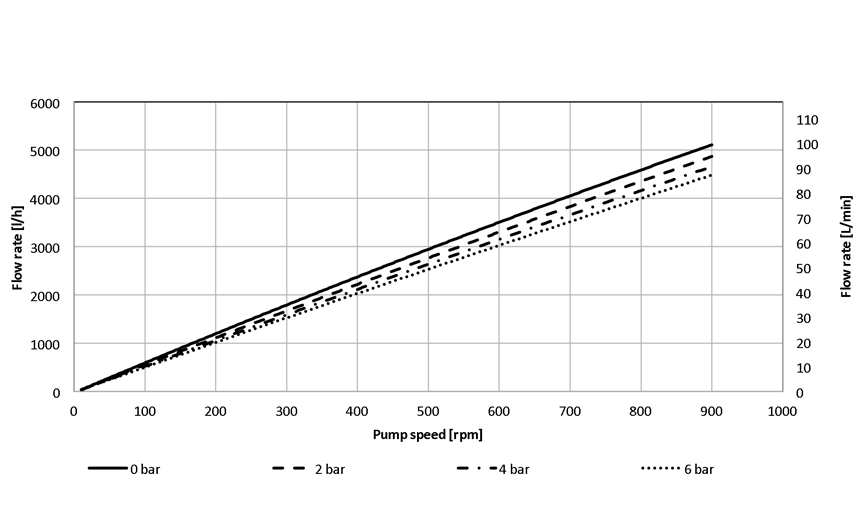

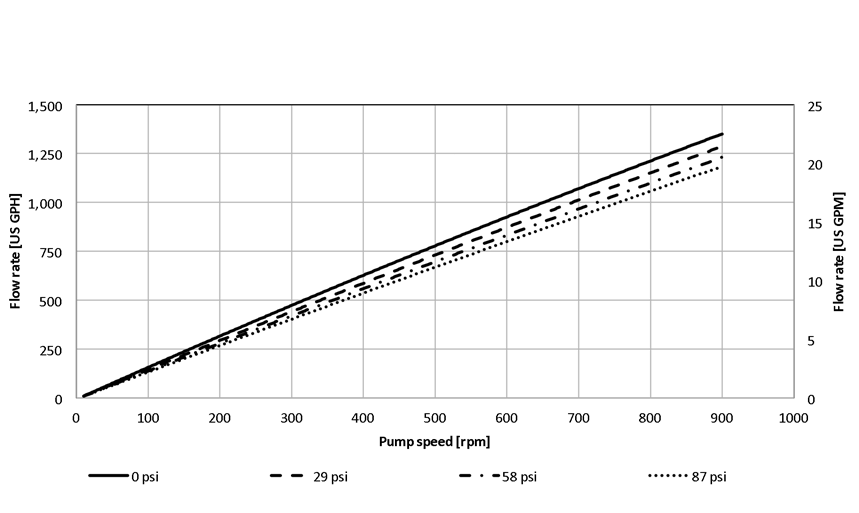

Flow Rate Maximum

Eccentric Shaft 6°

5000 lph (83 lpm)

5000 lph (83 lpm)

5000 Iph (83 Ipm)

5000 lph (83 lpm)

Flow Rate Minimum

Eccentric Shaft 6°

150 lph (2.5 lpm)

50 lph (0.83 lpm)

50 lph (0.83 lpm)

50 lph (0.83 lpm)

Pressure

Temperature of Fluid < 40°C (104°F)

4 bar (58 psi)

4 bar (58 psi)

4 bar (58 psi)

6 bar (87 psi)

Temperature of Fluid > 40°C (104°F)

4 bar (58 psi)

4 bar (58 psi)

4 bar (58 psi)

4 bar (58 psi)

Maximum Temperature

Fluid

60°C (140°F)

60°C (140°F)

60°C (140°F)

80°C (176°F)

Autoclave

130°C (266°F)

130°C (266°F)

130°C (266°F)

130°C (266°F)

Suction Lift Dry
at 1800 rpm

Eccentric Shaft 6°

4 – 4.5 m (13.1-14.7 ft)

4 – 4.5 m (13.1-14.7 ft)

4 – 4.5 m (13.1-14.7 ft)

4 - 4.5 m (13.1 - 14.7 ft)

Volume
Specifications

Approximated
Volume per Revolution
at Free Output

95 ml

95 ml

95 ml

95 ml

Filling Volume
Without Connectors

820 ml

820 ml

820 ml

820 ml

Connection Specification
(Standard)

Connectors

1.5" TC

1.5" TC

1.5" TC

1.5" TC

Position of Connectors

Front

Front

Front

Front

Product Wetted
Materials (Standard)

Pump Chamber

PP

PP

PP

SS316L

Valve Plate

PP

PP

PP

SS316L

Diaphragms

TPE

TPE

TPE

TPE

Valves

EPDM / SS316L

EPDM / SS316L

EPDM

EPDM/SS316L

O-rings

EPDM

EPDM

EPDM

EPDM

Certificates/Proofs
(Optional)

Elastomere (product wetted)

USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe; USP 87/381/661

USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe; USP 87/381/661

USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe; USP 87/381/661

USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe

Motor

Rated speed

1455 min-1 (50 Hz)

3000 min-1 (50 Hz)

3000 min-1 (50 Hz)

3000 min-1 (50 Hz)

Voltage

230/400 V

400 V

3 x 230V / 3 x 400V

400 V*

Power

2.2 kW

4.0 kW

-

4.0 kW

Pump Dimension
with Motor and
Housing

Length

852 mm (33.54")

790 mm (31.10")

670 mm (26.38")

893mm (35,16')

Width

250 mm (9.84")

275 mm (10.83")

225 mm (8.86")

275 mm (10.83")

Height

333 mm (13.11")

393 mm (15.47")

233 mm (9.17")

405mm (15,94')

Pump Weight with
Motor and Housing

105 kg (232 lb)

75 kg (165 lb)

50.4 kg (111 lb)

90 kg (198 lb)
