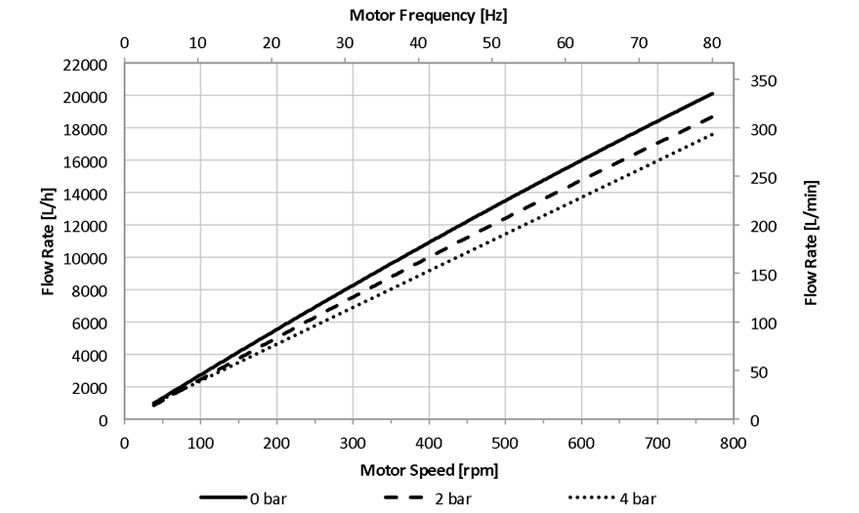

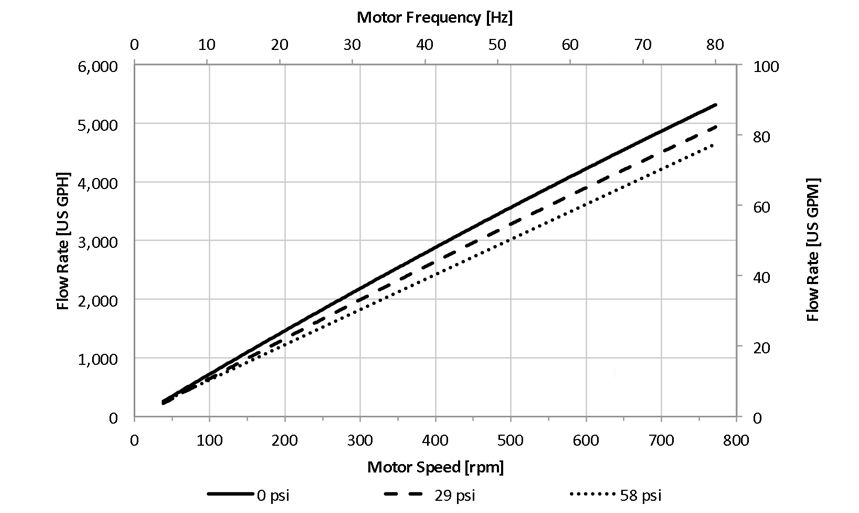

Flow Rate Maximum

Eccentric Shaft 7°

16000 lph (267 lpm)

Flow Rate Minimum

Eccentric Shaft 7°

1000 lph (16.7 lpm)

Pressure

Temperature of Fluid < 40°C (104°F)

4 bar (58 psi)

Temperature of Fluid > 40°C (104°F)

4 bar (58 psi)

Maximum Temperature

Fluid

60°C (140°F)

Suction Lift Dry 330 rpm

Eccentric Shaft 7°

4 – 4.5 m (13.1-14.7 ft)

Volume Specifications

Approximated Volume per
Revolution at Free Output

470 ml

Filling Volume Without Connectors

2950 ml

Connection Specification (Standard)

Connectors

2" TC

Position of Connectors

Front

Product Wetted Materials (Standard)

Pump Chamber

PP

Valve Plate

PP

Diaphragms

TPE

Valves

EPDM/SS316L

O-rings

EPDM

Certificates/Proofs (Optional)

Elastomere (product wetted)

USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe;
USP 87/381/661

Motor

Rated speed

1460/474 min-1 (50 Hz)

Voltage

230/400 V

Power

4 kW
