Product Information
|
Description |
Unit |

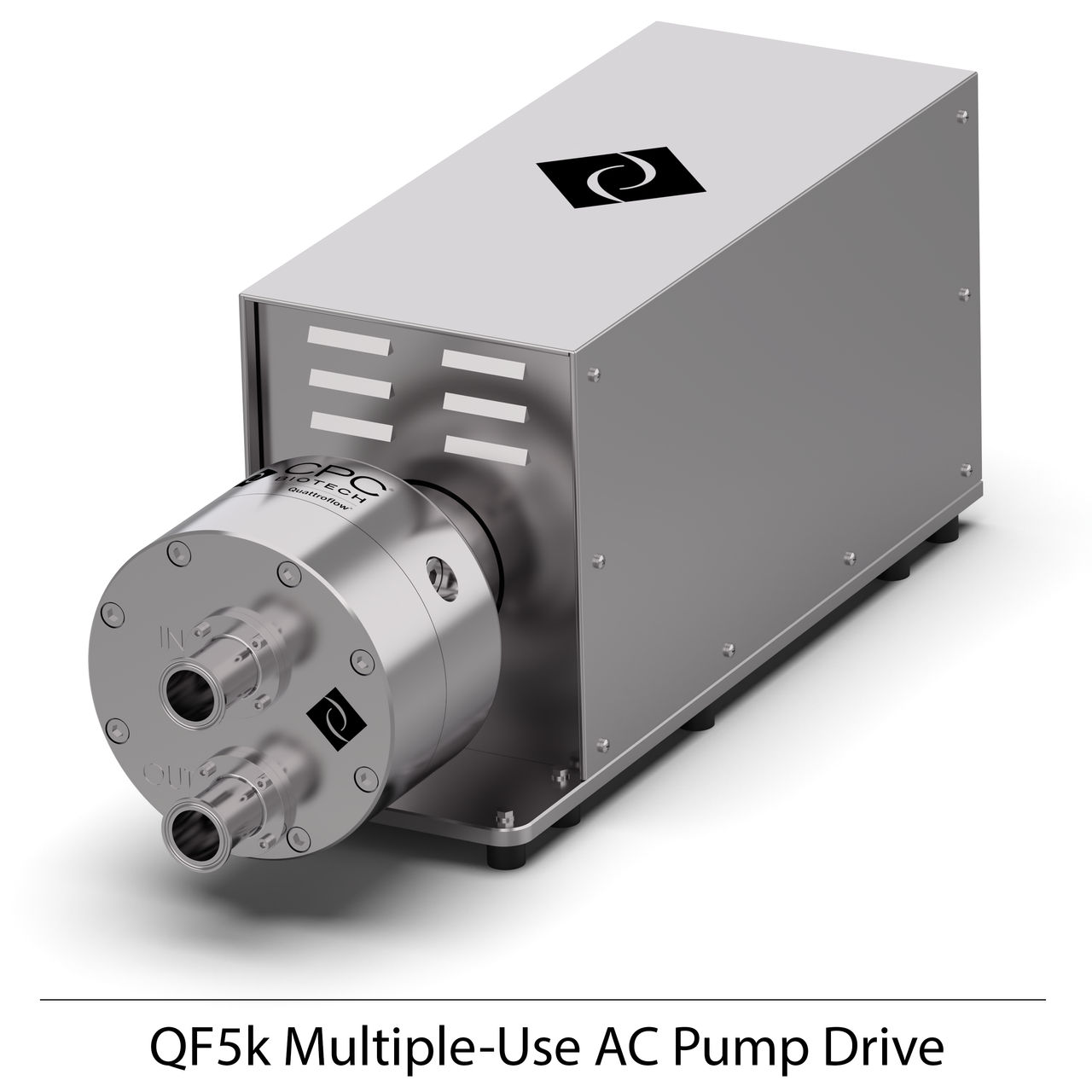

QF5kMU-AC |

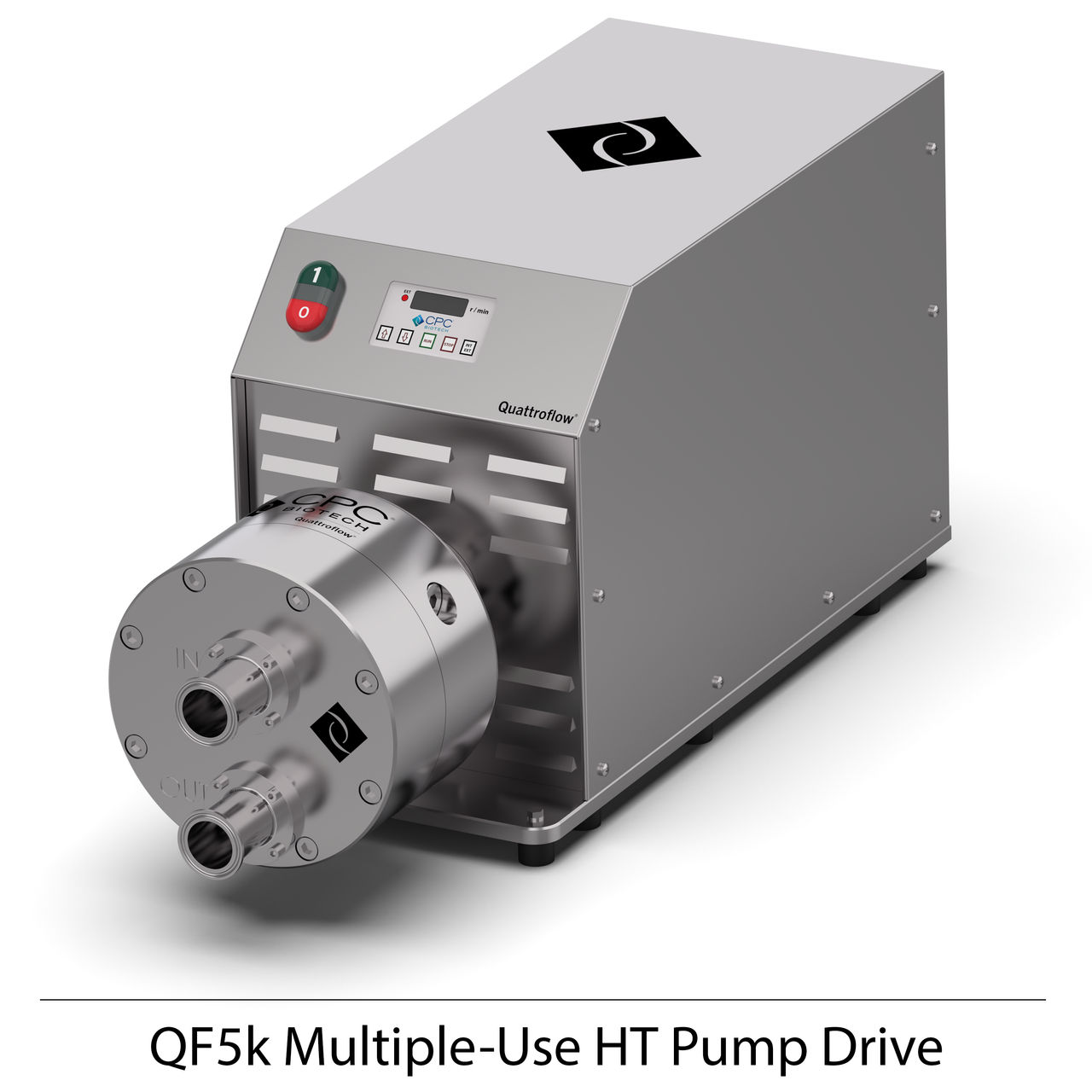

QF5kMU-HT |

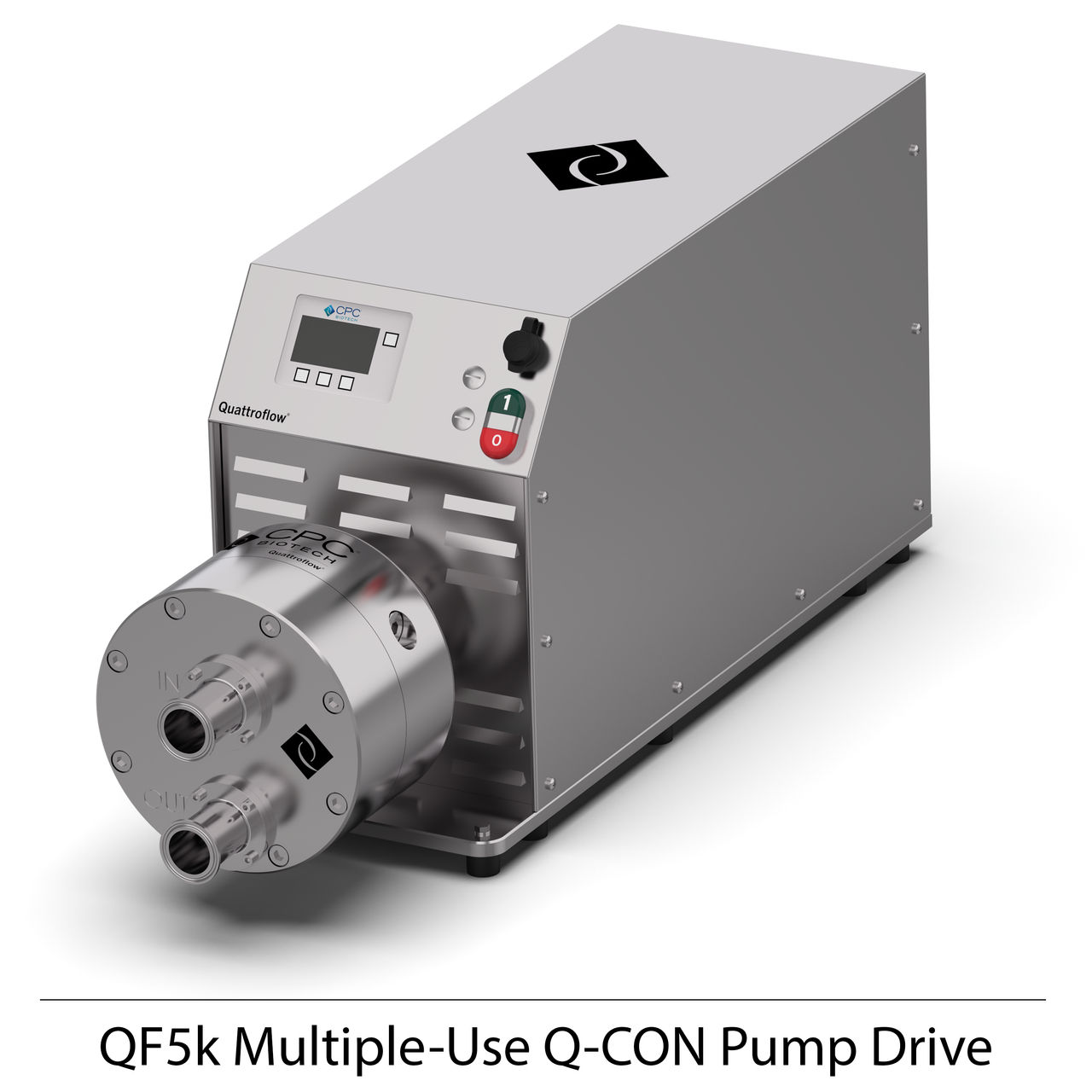

QF5kMU-QCON |

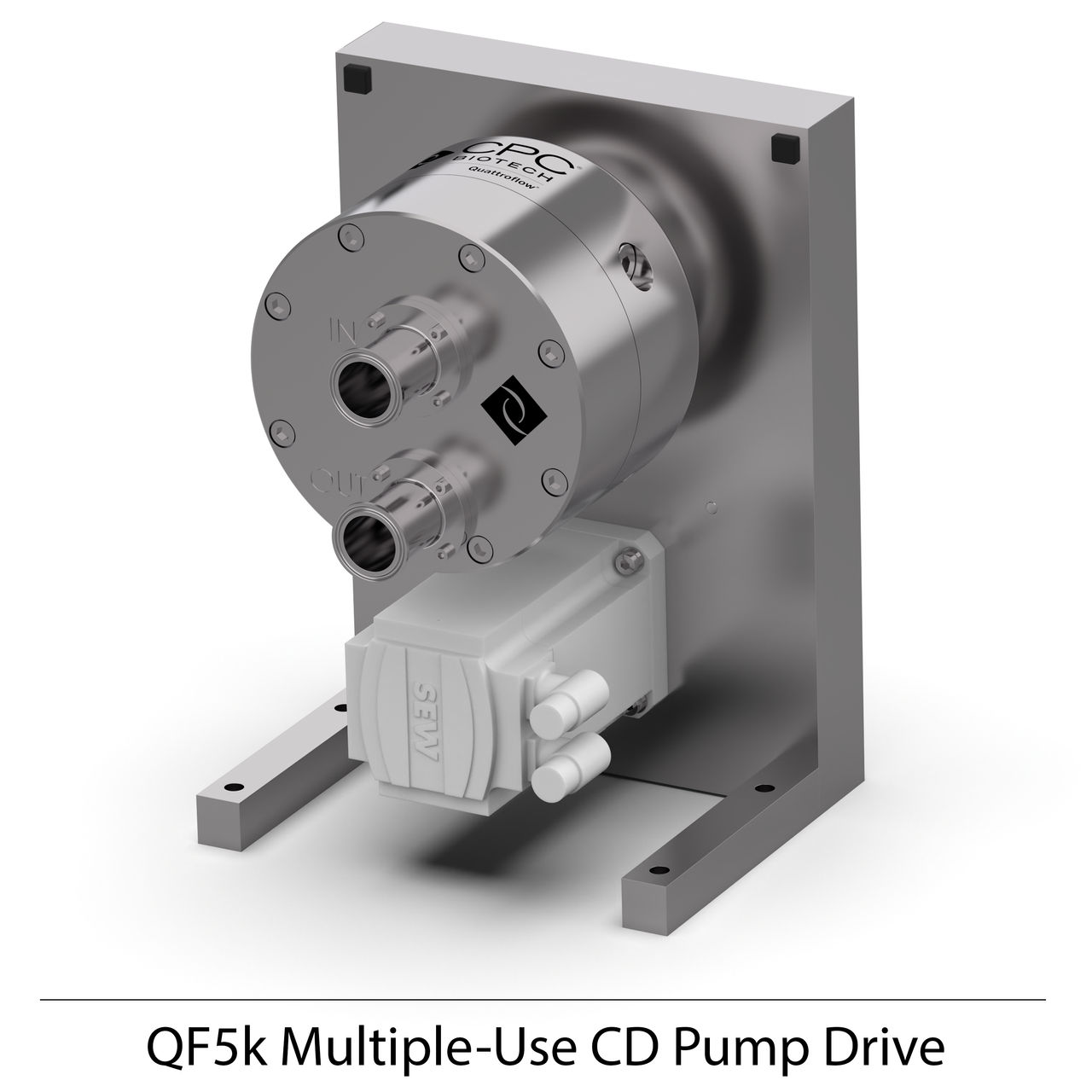

QF5kMU-CD |

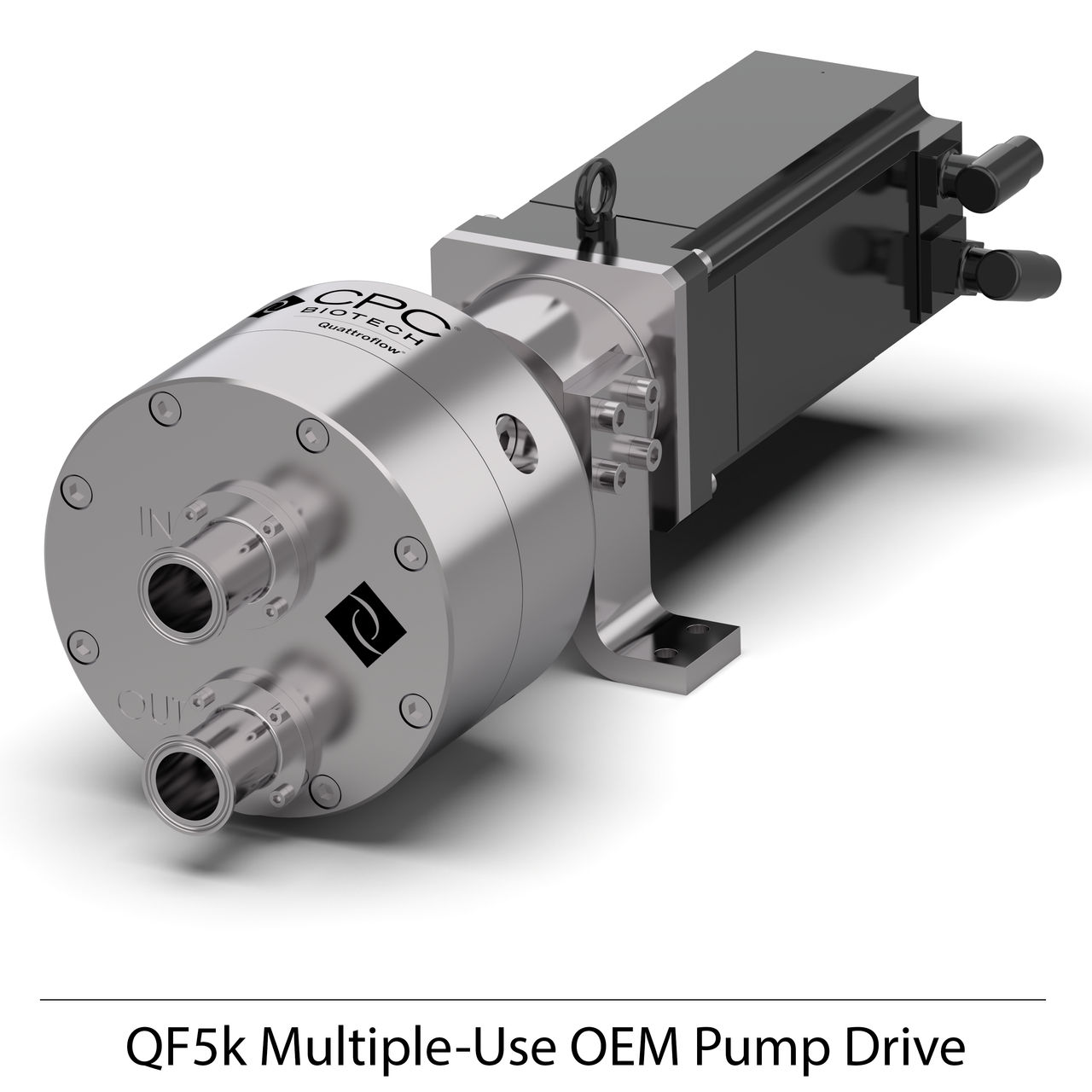

QF5KMU-OEM |

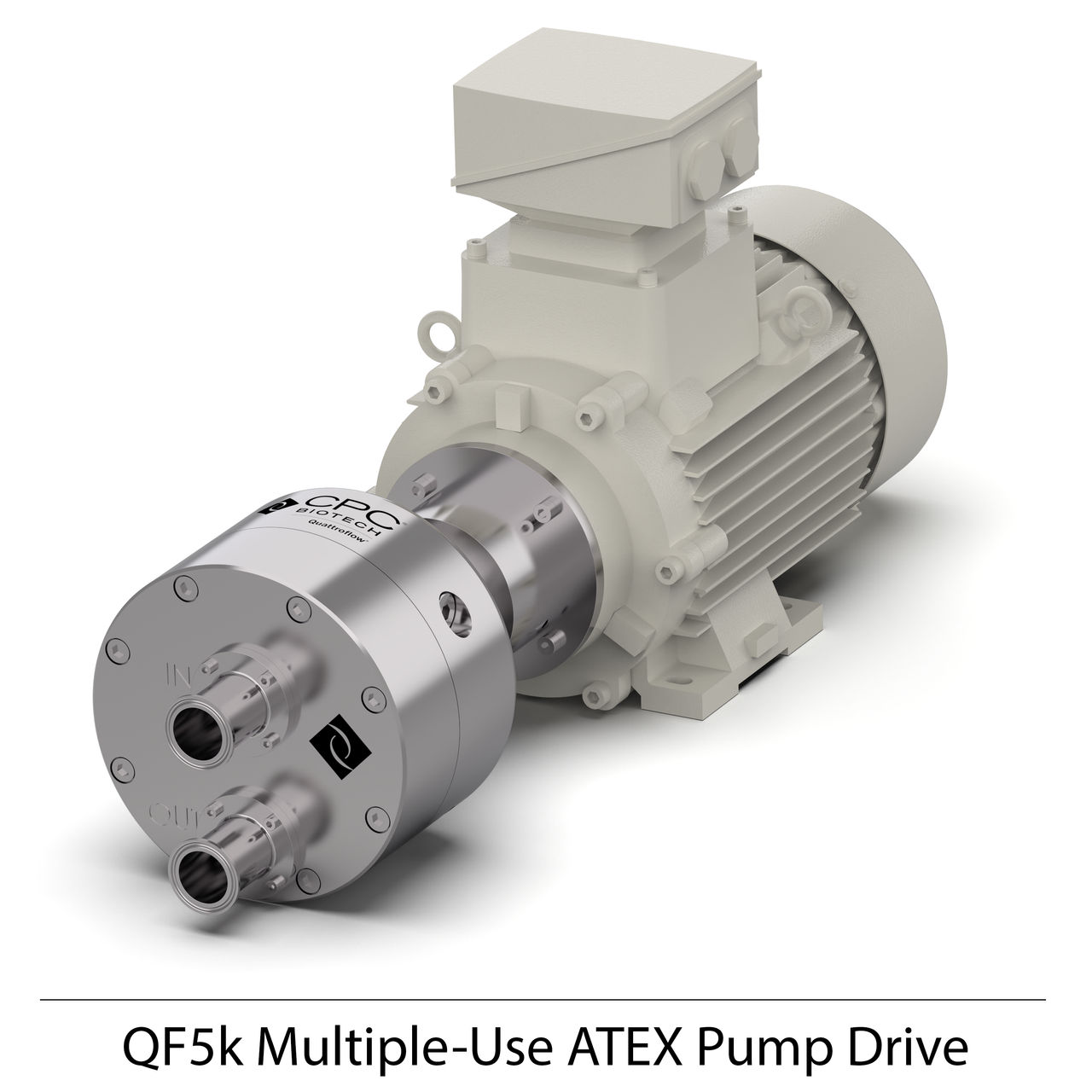

QF5kMU-ATEX |
||
|---|---|---|---|---|---|---|---|---|---|
|
Flow Rate |
Eccentric Shaft 5° |
Min. |
lph |
200 |
50 |
50 |
50 |
50 |
200 |
|
Eccentric Shaft 5° |
Max. |
lph |
6,000 |
6,000 |
6,000 |
5,000 |
6,000 |
6,000 |
|
|
Pumping Pressure |
Media Temperature <40°C |
Max. |
bar |
6 |
6 |
6 |
6 |
6 |
6 |
|
Media Temperature <40°C |
Continuous |
bar |
4 |
4 |
4 |
4 |
4 |
4 |
|
|
Media Temperature >40°C |
Max. |
bar |
4 |
4 |
4 |
4 |
4 |
4 |
|
|
Media Temperature >40°C |
Continuous |
bar |
4 |
4 |
4 |
4 |
4 |
4 |
|
|
Neg. Inlet Pressure |
Continuous |
bar |
-0.2 |
-0.2 |
-0.2 |
-0.2 |
-0.2 |
-0.2 |
|
|
Temperature |
Media |
Min. |
°C (°F) |
10 (50) |
10 (50) |
10 (50) |
10 (50) |
10 (50) |
10 (50) |
|
Media |
Max. |
°C (°F) |
80 (176) |
80 (176) |
80 (176) |
80 (176) |
80 (176) |
80 (176) |
|
|
Ambient Temperature |
Environment |
Min. |
°C (°F) |
10 (50) |
10 (50) |
10 (50) |
10 (50) |
10 (50) |
10 (50) |
|
Environment |
Max. |
°C (°F) |
30 (86) |
30 (86) |
30 (86) |
30 (86) |
30 (86) |
25/40 (77/104) |
|
|
Pump Speed |
|
Min. |
rpm |
30 |
13 |
13 |
13 |
13 |
72 |
|
|
Max. |
rpm |
1,200 |
1,200 |
1,200 |
1,050 |
1,050 |
1,200/900 |
|
|
Displacement Volume |
Eccentric Shaft 5° |
|
ml/rev |
91 |
91 |
91 |
91 |
91 |
91 |
|
Connection Specification |
Size |
|
Inch |
1.5" (TriClamp) |
1.5" (TriClamp) |
1.5" (TriClamp) |
1.5" (TriClamp) |
1.5" (TriClamp) |
1.5" (TriClamp) |
|
Dimensions |
Pump Unit |
Length |
mm |
872 |
851 |
950 |
261 |
694 |
840 |
|
Pump Unit |
Width |
mm |
257 |
281 |
281 |
320 |
225 |
250 |
|
|
Pump Unit |
Height |
mm |
333 |
385 |
405 |
410 |
233 |
391 |
|
|
Pump Weight with Motor and Housing |
Pump Unit |
|
kg |
95 |
110 |
115 |
70 |
66.4 |
123 |
|
IP-Protection Class (Total Pump) |
Pump Unit |
|
-- |
55 |
54 |
55 |
54 |
-- |
65 |
|
Filling Volume |
Without Connection |
|
ml |
788 |
788 |
788 |
788 |
788 |
788 |
|
Surface |
Product Wetted |
|
cm2 |
1,586 |
1,586 |
1,586 |
1,586 |
--- |
1,586 |
|
Media |
Temperature |
Max. |
°C (°F) |
90 (194) |
90 (194) |
90 (194) |
90 (194) |
90 (194) |
80 (176) |
|
Sterilization |
Autoclave |
Max. |
°C (°F) |
130 (266) |
130 (266) |
130 (266) |
130 (266) |
130 (266) |
130 (266) |
|
Gamma Irradiation |
Max. |
kGy |
n/a |
n/a |
n/a |
n/a |
--- |
-- |
|
|
Material |
Product Wetted |
Pump Housing |
--- |
SS316L |
SS316L |
SS316L |
SS316L |
SS316L |
SS316L |
|
Product Wetted |
Valve Plate |
--- |
SS316L |
SS316L |
SS316L |
SS316L |
SS316L |
SS316L |
|
|
Product Wetted |
Diaphragm |
--- |
TPE |
TPE |
TPE |
TPE |
TPE |
TPE |
|
|
Product Wetted |
Valves |
--- |
EPDM |
EPDM |
EPDM |
EPDM |
EPDM |
EPDM |
|
|
Product Wetted |
O-rings |
--- |
EPDM |
EPDM |
EPDM |
EPDM |
EPDM |
EPDM |
|
|
Certificates / Proofs (Optional) |
ATEX (Motor) |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
II 2G Ex db eb IIB T4 Gb |
|
ATEX (Pump) |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
II 2G Ex h IIC T4 Gb X |
|
|
ATEX (Coupling) |
--- |
--- |
--- |
--- |
--- |
--- |
--- |
II 2G Ex h IIC T4 Gb |
|
.png.thumb.1280.1280.png.rendition.src.1774872571502.png)

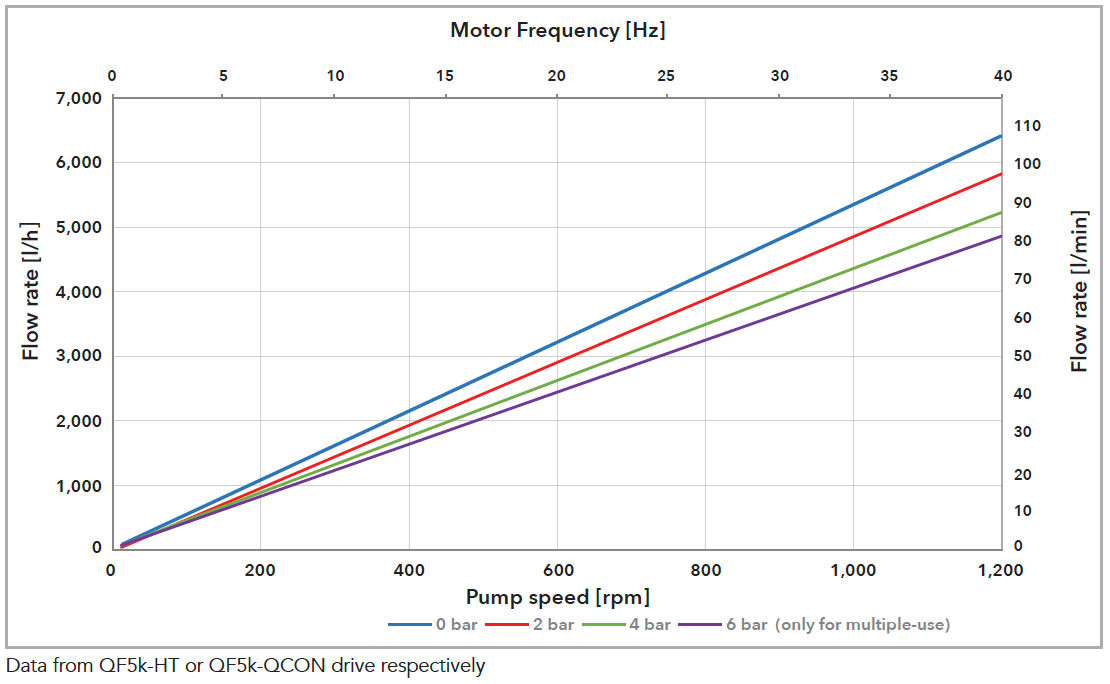

Performance Chart QF5kMU
