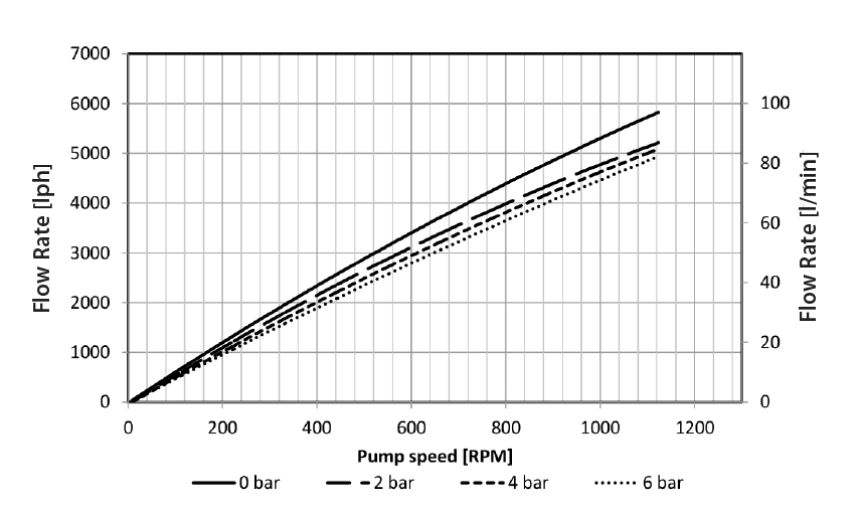

Flow Rate Maximum

Eccentric Shaft 6°

5000 lph (83 lpm)

Flow Rate Minimum

Eccentric Shaft 6°

50 lph (0.83.lpm)

Pressure

Temperature of Fluid < 40°C (104°F)

6 bar (87 psi)

Temperature of Fluid > 40°C (104°F)

4 bar (58 psi)

Maximum Temperature

Fluid

80°C (176°F)

CIP

90°C (194°F)

SIP

130°C (266°F)*

Autoclave

130°C (266°F)*

Suction Lift Dry at 1200 rpm

Eccentric Shaft 6°

4 – 4.5 m (13.1-14.7 ft)

Volume Specifications

Approximated Volume per
Revolution at Free Output

95 ml

Filling Volume Without Connectors

820 ml

Connection Specification (Standard)

Connectors

1.5" TC

Position of Connectors

Front

Product Wetted Materials (Standard)

Pump Housing

SS316L

Valve Plate

SS316L or PP

Diaphragms

TPE

Valves

EPDM/SS316L

O-rings

EPDM

Certificates/Proofs (Optional)

Elastomere (product wetted)

USP <88> Cl. VI; FDA21CFR177;
BSE/TSE Safe

Stainless Steel Parts (product wetted)

3.1; Surface Roughness; Ferrite Content

Motor (Standard)

Rated speed

3000 min -1(2.661 reduction)

Voltage

400 V

Power

3 kW

Pump Dimension with Motor and Housing

Length

440 mm (17.32")

Width

325 mm (12.80")

Height

320 mm (12.60")

Pump Weight with Motor and Housing

66 kg (146 lb)
