Product Information
|
|

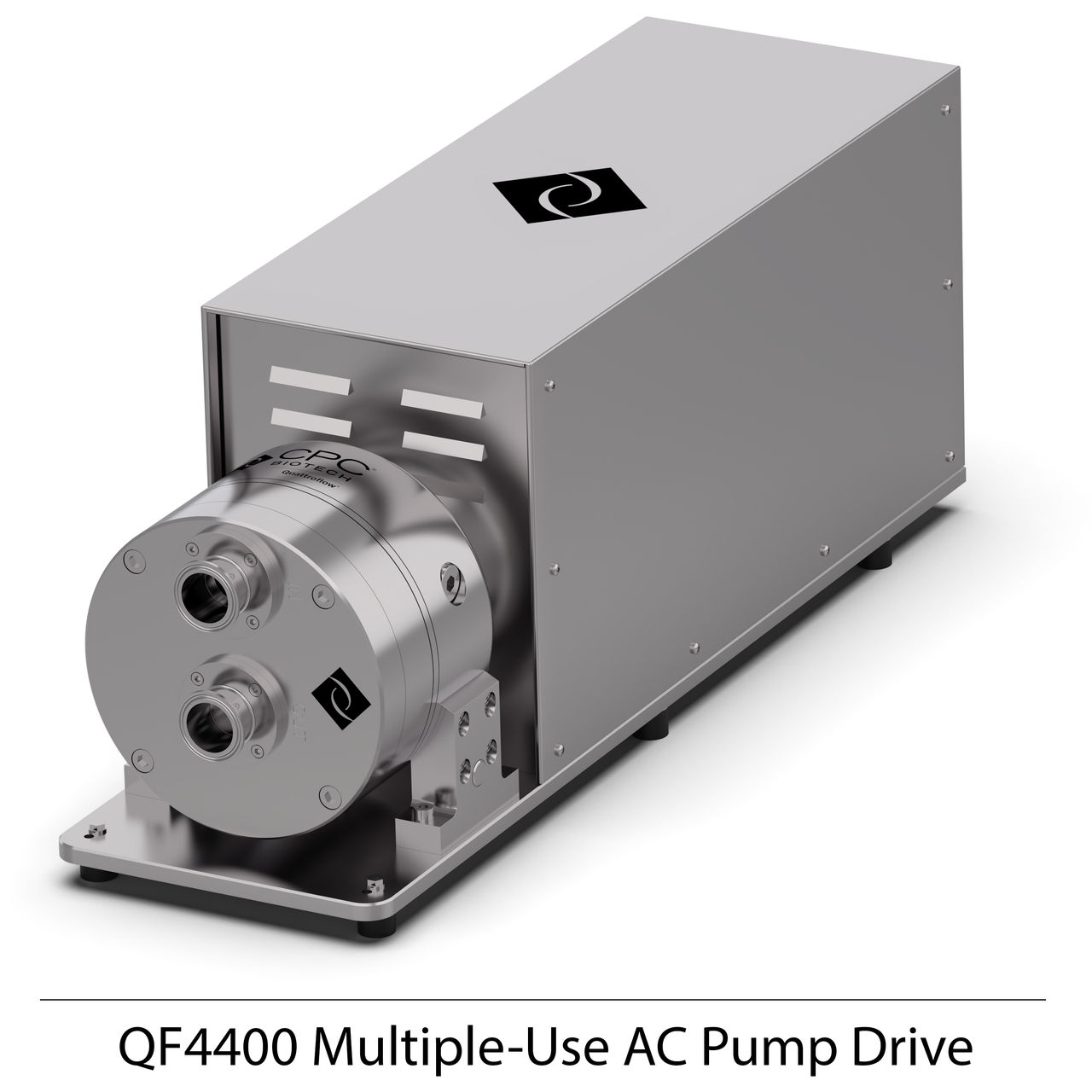

QF4400MU-AC |

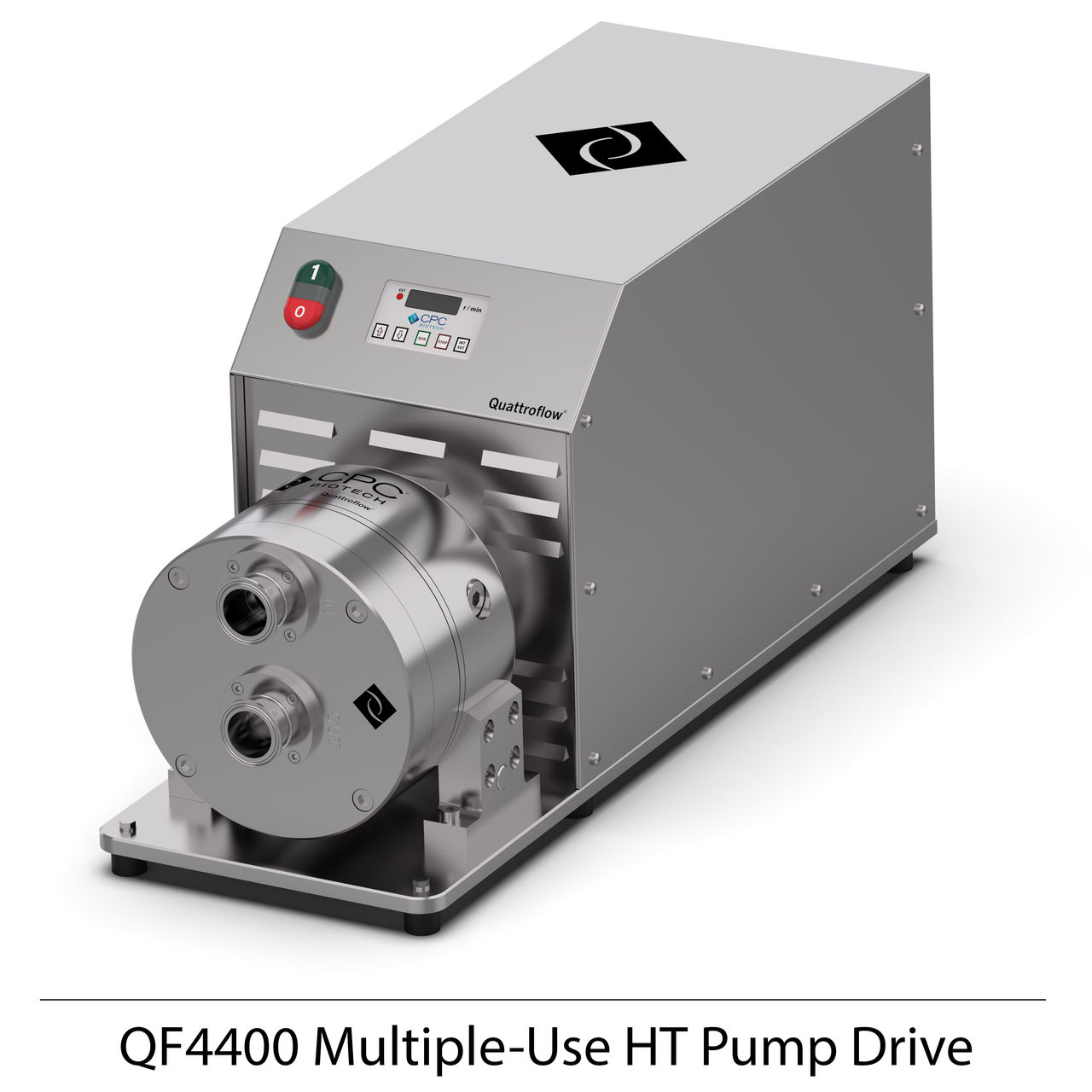

QF4400MU-HT |

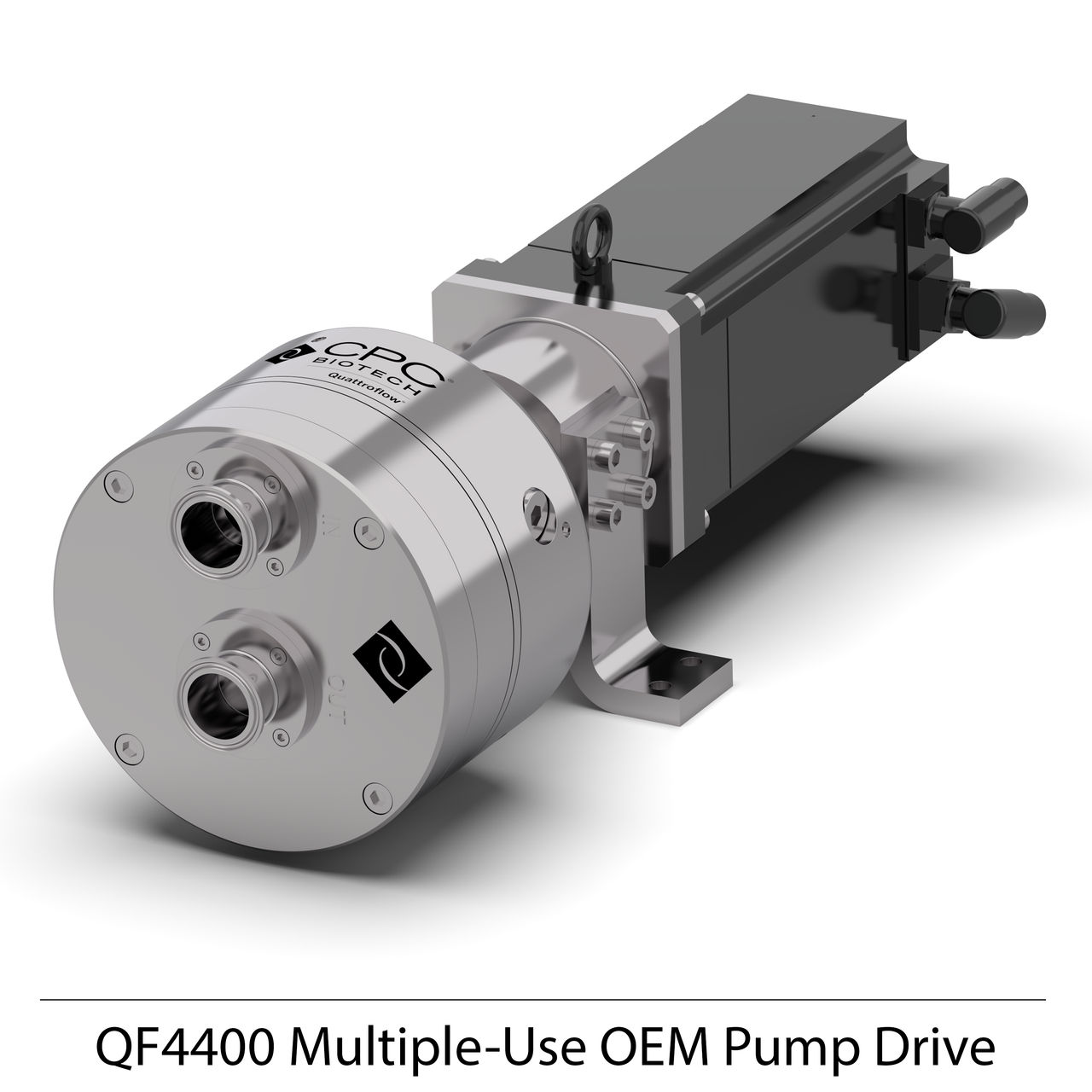

QF4400MU-OEM |

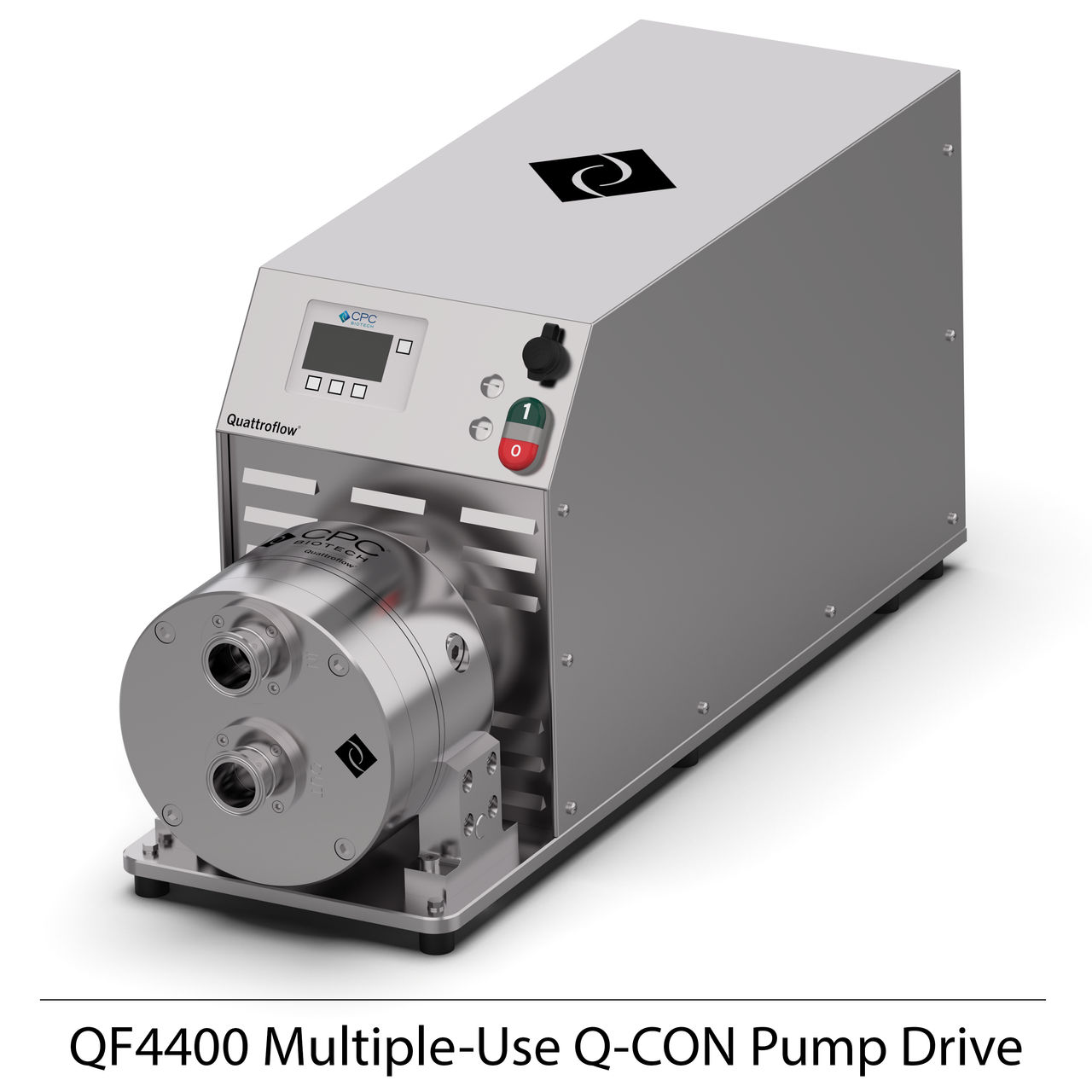

QF4400MU-QCON |
|
|---|---|---|---|---|---|
|
Flow Rate Maximum |
Eccentric Shaft 6° |
5000 lph (83 lpm) |
5000 lph (83 lpm) |
5000 lph (83 lpm) |
5000 lph (83 lpm) |
|
Flow Rate Minimum |
Eccentric Shaft 6° |
150 lph (2.5 lpm) |
50 lph (0.83 lpm) |
50 lph (0.83 lpm) |
50 lph (0.83 lpm) |
|
Pressure |
Temperature of Fluid < 40°C (104°F) |
6 bar (87 psi) |
6 bar (87 psi) |
6 bar (87 psi) |
6 bar (87 psi) |
|
Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
|
|
Maximum Temperature |
Fluid |
80°C (176°F) |
80°C (176°F) |
80°C (176°F) |
80°C (176°F) |
|
CIP |
90°C (194°F) |
90°C (194°F) |
90°C (194°F) |
90°C (194°F) |
|
|
SIP |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
|
|
Autoclave |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
|
|
Suction Lift Dry at 1200 rpm |
Eccentric Shaft 6 |
4 - 4.5 m (13.1 - 14.7 ft) |
4 - 4.5 m (13.1 - 14.7 ft) |
4 - 4.5 m (13.1 - 14.7 ft) |
4 - 4.5 m (13.1 - 14.7 ft) |
|
Volume Specifications |
Approximated Volume per Revolution at Free Output |
95 ml |
95 ml |
95 ml |
95 ml |
|
Filling Volume Without Connectors |
820 ml |
820 ml |
820 ml |
820 ml |
|
|
Connection Specification (Standard |
Connectors |
1.5" TC |
1.5" TC |
1.5" TC |
1.5" TC |
|
Position of Connector |
Front |
Front |
Front |
Front |
|
|
Product Wetted Materials (Standard) |
Pump Housing |
SS316L |
SS316L |
SS316L |
SS316L |
|
Valve Plate |
SS316L or PP |
SS316L |
SS316L |
SS316L |
|
|
Diaphragms |
TPE |
TPE |
TPE |
TPE |
|
|
Valves |
EPDM/SS316L |
EPDM/SS316L |
EPDM/SS316L |
EPDM/SS316L |
|
|
O-rings |
EPDM |
EPDM |
EPDM |
EPDM |
|
|
Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; |
USP <88> Cl. VI; |
USP <88> Cl. VI; |
USP <88> Cl. VI; |
|
Stainless Steel Parts (product wetted) |
3.1; Surface Roughness; Ferrite Content |
3.1; Surface Roughness; Ferrite Content |
3.1; Surface Roughness; Ferrite Content |
3.1; Surface Roughness; |
|
|
Motor (Standard) |
Rated speed |
1455 min-1 (50 Hz) |
3000 min-1 (50 Hz) |
3000 min-1 (50 Hz) |
3000 min-1 (50 Hz) |
|
Voltage |
230 V/400 V |
400 V* |
3 x 230V / 3 x 400V |
400 V* |
|
|
Power |
2.2 kW |
4.0 kW |
- |
4.0 kW |
|
|
Pump Dimension with Motor and Housing |
Length |
852 mm (33.54") |
790 mm (31.10") |
670 mm (26.38") |
893mm (35,16') |
|
Width |
250 mm (9.84") |
275 mm (10.83") |
225 mm (8.86") |
275 mm (10.83") |
|
|
Height |
333 mm (13.11") |
393 mm (15.47") |
233 mm (9.17") |
405mm (15,94') |
|
|
Pump Weight with Motor and Housing |
|
120 kg (265 lb) |
90 kg (198 lb) |
66.9 kg (147.5 lb) |
90 kg (198 lb) |
Other connection specifications, materials, and motors available on request.
*3 x 230 V as an option

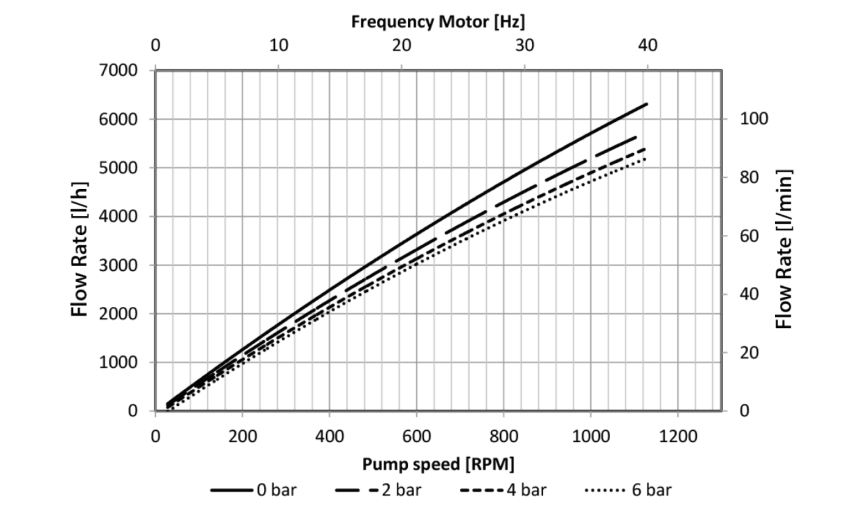

QF4400MU Eccentric Shaft 6° — Liter

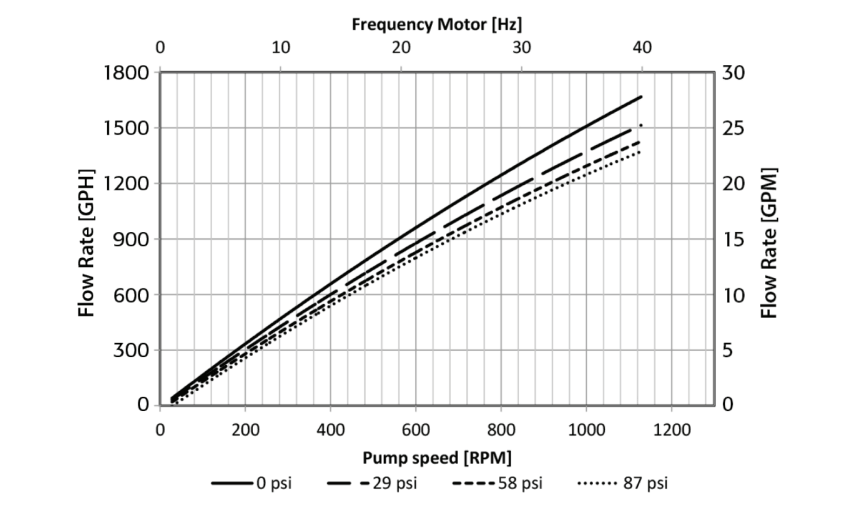

QF4400MU Eccentric Shaft 6° — Gallon

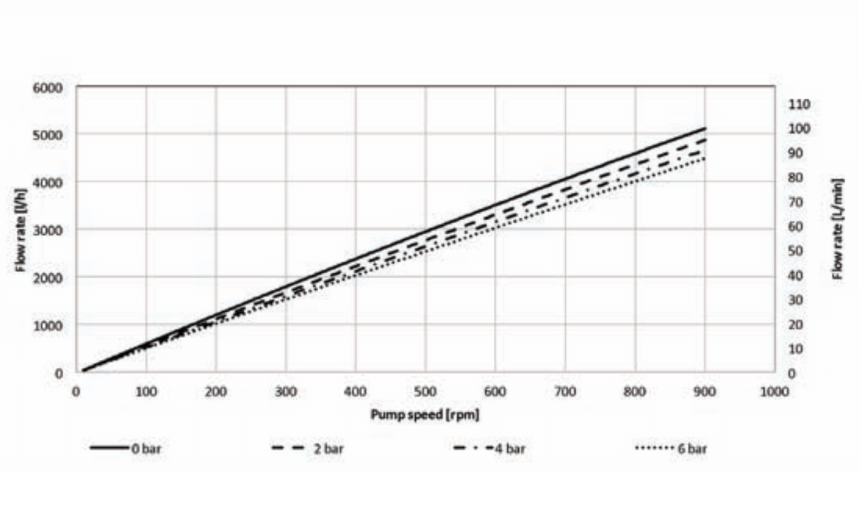

QF4400MU-HT Eccentric Shaft 6° — Liter

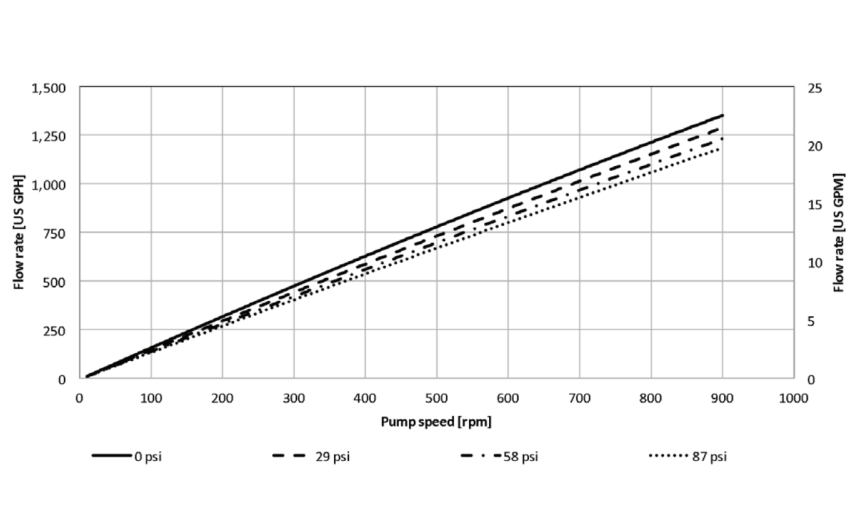

QF4400MU-HT Eccentric Shaft 6° — Gallon
Brochures
