Product Information
|
|
QF2500MU-AC |

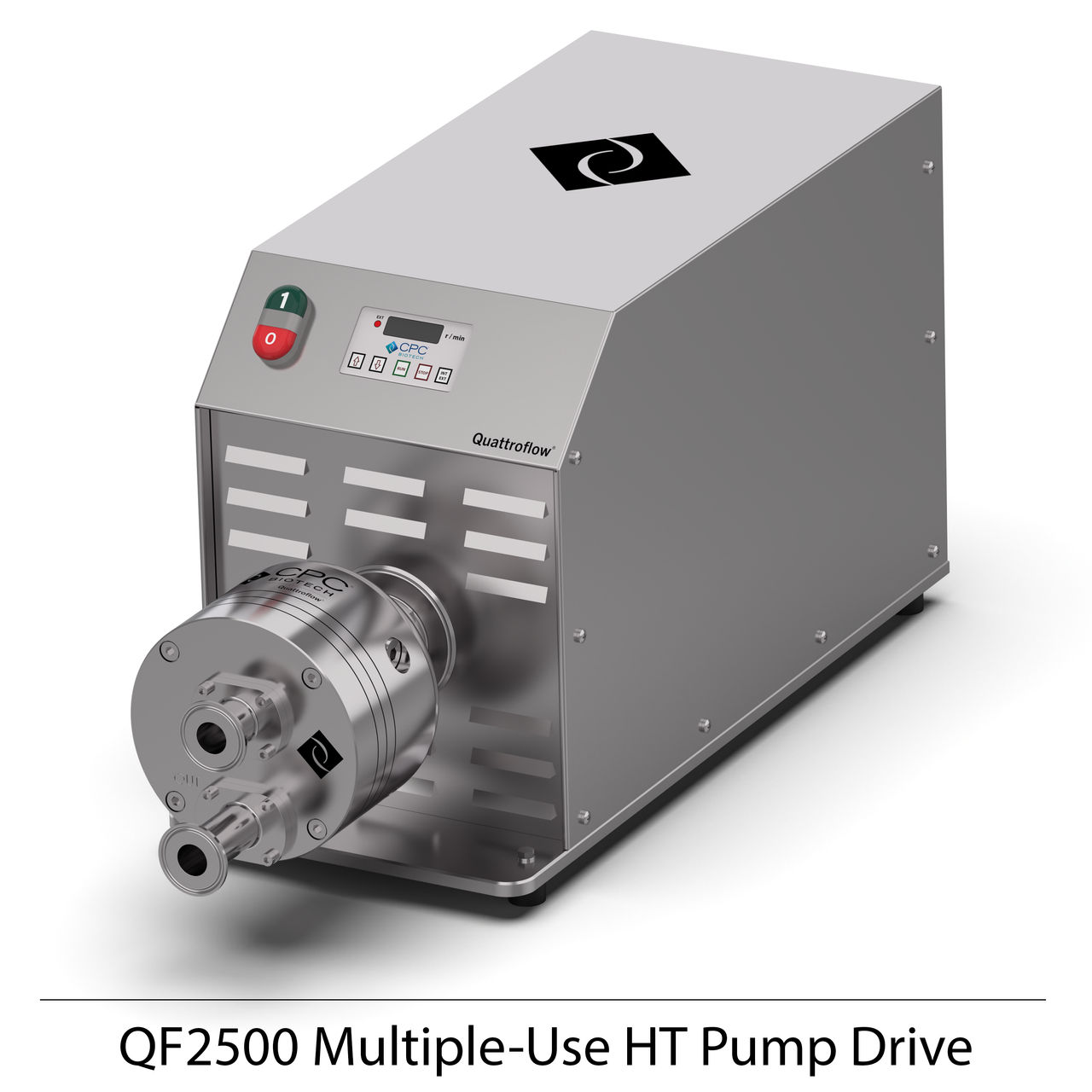

QF2500MU-HT |

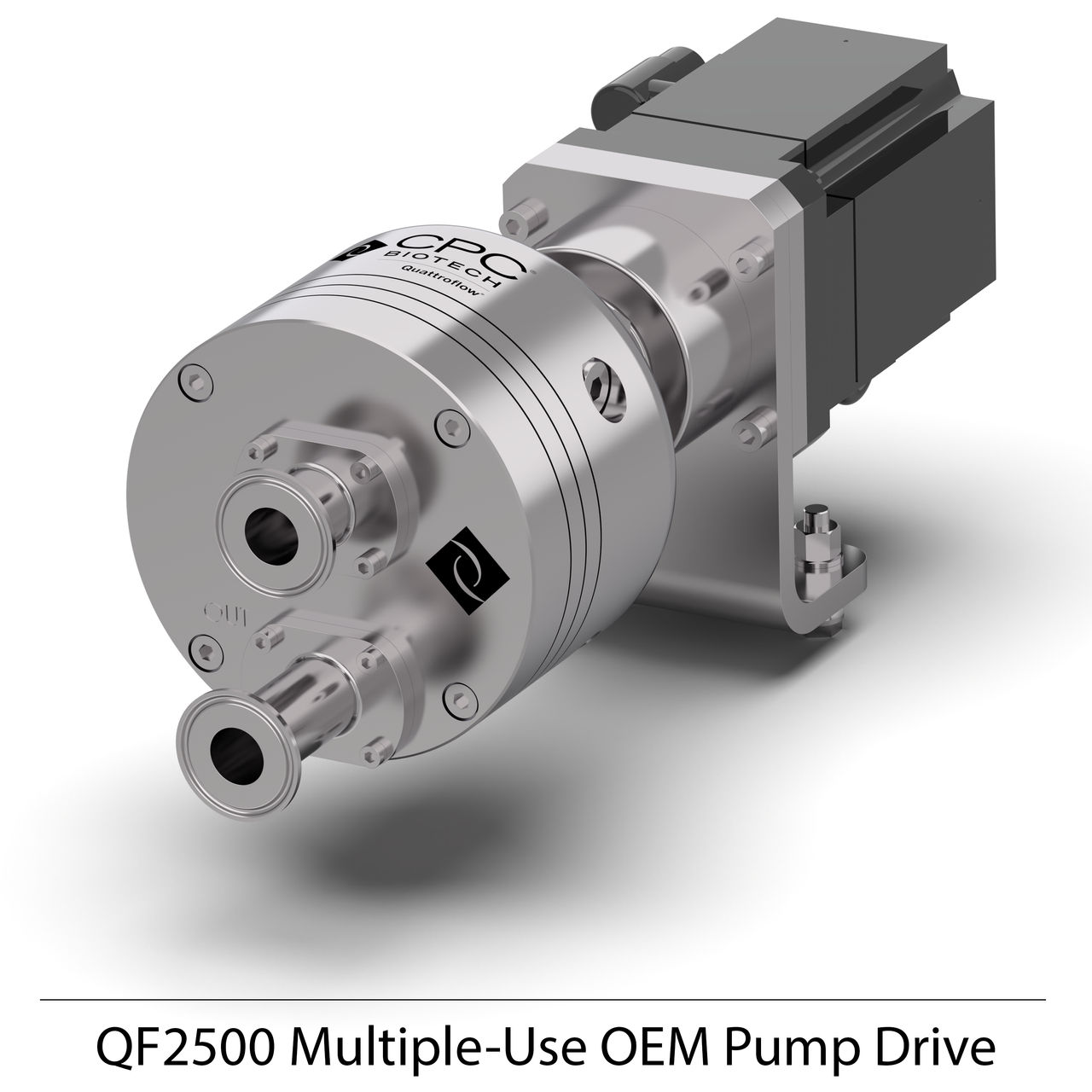

QF2500MU- OEM |
|
|

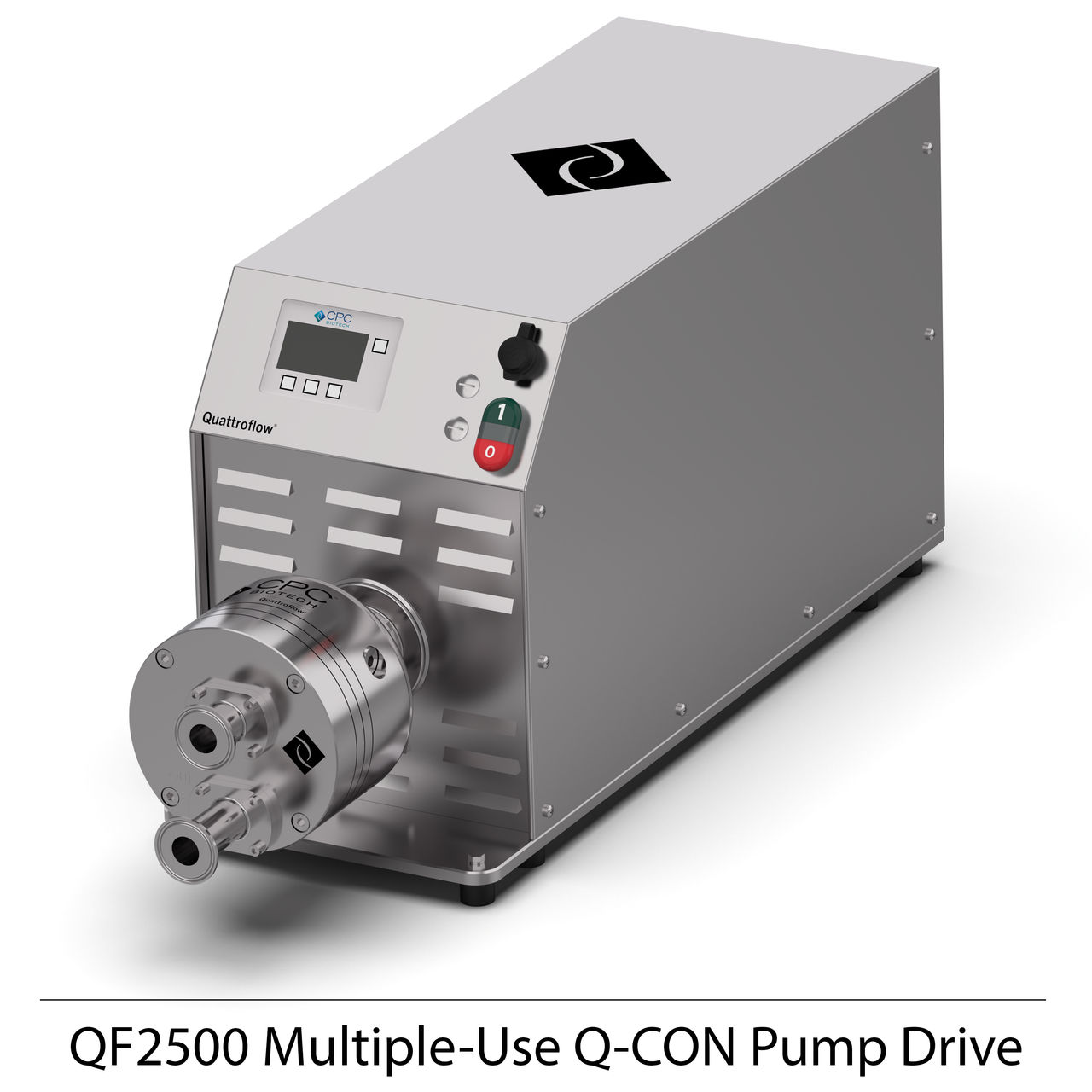

QF2500MU-QCON |
|
|---|---|---|---|---|---|---|---|
|
Flow Rate Maximum |
Eccentric Shaft 5° |
2,500 lph (41 lpm) |
2,500 lph (41 lpm) |
2,500 lph (41 lpm) |
2,500 lph (41 lpm) |
2,300 lph (37,7 lpm) |
2,500 lph (41 lpm) |
|
Flow Rate Minimum |
Eccentric Shaft 5° |
50 lph (0.8 lpm) |
25 lph (0.41 lpm) |
25 lph (0.41 lpm) |
160 lph (2,7 lpm) |
120 lph (2 lpm) |
25 lph (0.41 lpm) |
|
Pressure |
Temperature of Fluid < 40°C (104°F) |
6 bar (87 psi) |
6 bar (87 psi) |
6 bar (87 psi) |
6 bar (87 psi) |
6 bar (87 psi) |
6 bar (87 psi) |
|
Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
4 bar (58 psi) |
|
|
Maximum Temperature |
Fluid |
80°C (176°F) |
80°C (176°F) |
80°C (176°F) |
80°C (176°F) |
80°C (176°F) |
80°C (176°F) |
|
CIP |
90°C (194°F) |
90°C (194°F) |
90°C (194°F) |
90°C (194°F) |
90°C (194°F) |
90°C (194°F) |
|
|
SIP |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
|
|
Autoclave |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
130°C (266°F) |
|
|
Ambient Temperature |
Minimum |
10°C (50°F) |
10°C (50°F) |
10°C (50°F) |
10°C (50°F) |
10°C (50°F) |
10°C (50°F) |
|
Maximum |
30°C (86°F) |
30°C (86°F) |
30°C (86°F) |
30°C (86°F) |
30°C (86°F) |
30°C (86°F) |
|
|
Pump Speed Range |
rpm |
30-1750 |
20-1800 |
20-1800 |
97-1800 |
72-1440 |
20-1800 |
|
Suction Lift Dry at Maximum Speed |
Eccentric Shaft 5° |
4 - 4.5 m (13.1 - 14.7 ft) |
4 - 4.5 m (13.1 - 14.7 ft) |
4 - 4.5 m (13.1 - 14.7 ft) |
4 - 4.5 m (13.1 - 14.7 ft) |
4 - 4.5 m (13.1 - 14.7 ft) |
4 - 4.5 m (13.1 - 14.7 ft) |
|
Volume Specifications |
Approximated Volume per Revolution at Free Output |
27 ml |
27 ml |
27 ml |
27 ml |
27 ml |
27 ml |
|
Approximated Filling Volume Without Connectors |
210 ml |
210 ml |
210 ml |
210 ml |
210 ml |
210 ml |
|
|
Connection Specification (Standard) |
Connectors |
1" TC |
1" TC |
1" TC |
1" TC |
1" TC |
1" TC |
|
Position of Connectors |
Front |
Front |
Front |
Front |
Front |
Front |
|
|
Product Wetted Materials (Standard) |
Pump Chamber |
SS316L |
SS316L |
SS316L |
SS316L |
SS316L |
SS316L |
|
Valve Plate |
SS316L |
SS316L |
SS316L |
SS316L |
SS316L |
SS316L |
|
|
Diaphragms |
TPE |
TPE |
TPE |
TPE |
TPE |
TPE |
|
|
Valves |
EPDM |
EPDM |
EPDM |
EPDM |
EPDM |
EPDM |
|
|
O-rings |
EPDM |
EPDM |
EPDM |
EPDM |
EPDM |
EPDM |
|
|
Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; FDA21CFR177; |
USP <88> Cl. VI; FDA21CFR177; |
USP <88> Cl. VI; FDA21CFR177; |
USP <88> Cl. VI; FDA21CFR177; |
USP <88> Cl. VI; FDA21CFR177; |
USP <88> Cl. VI; |
|
Stainless Steel Parts (product wetted) |
3.1; Surface Roughness; Ferrite Content |
3.1; Surface Roughness; Ferrite (EN10204) |
3.1; Surface Roughness; Ferrite Content |
3.1; Surface Roughness; Ferrite Content |
3.1; Surface Roughness; Ferrite Content |
3.1; Surface Roughness; |
|
|

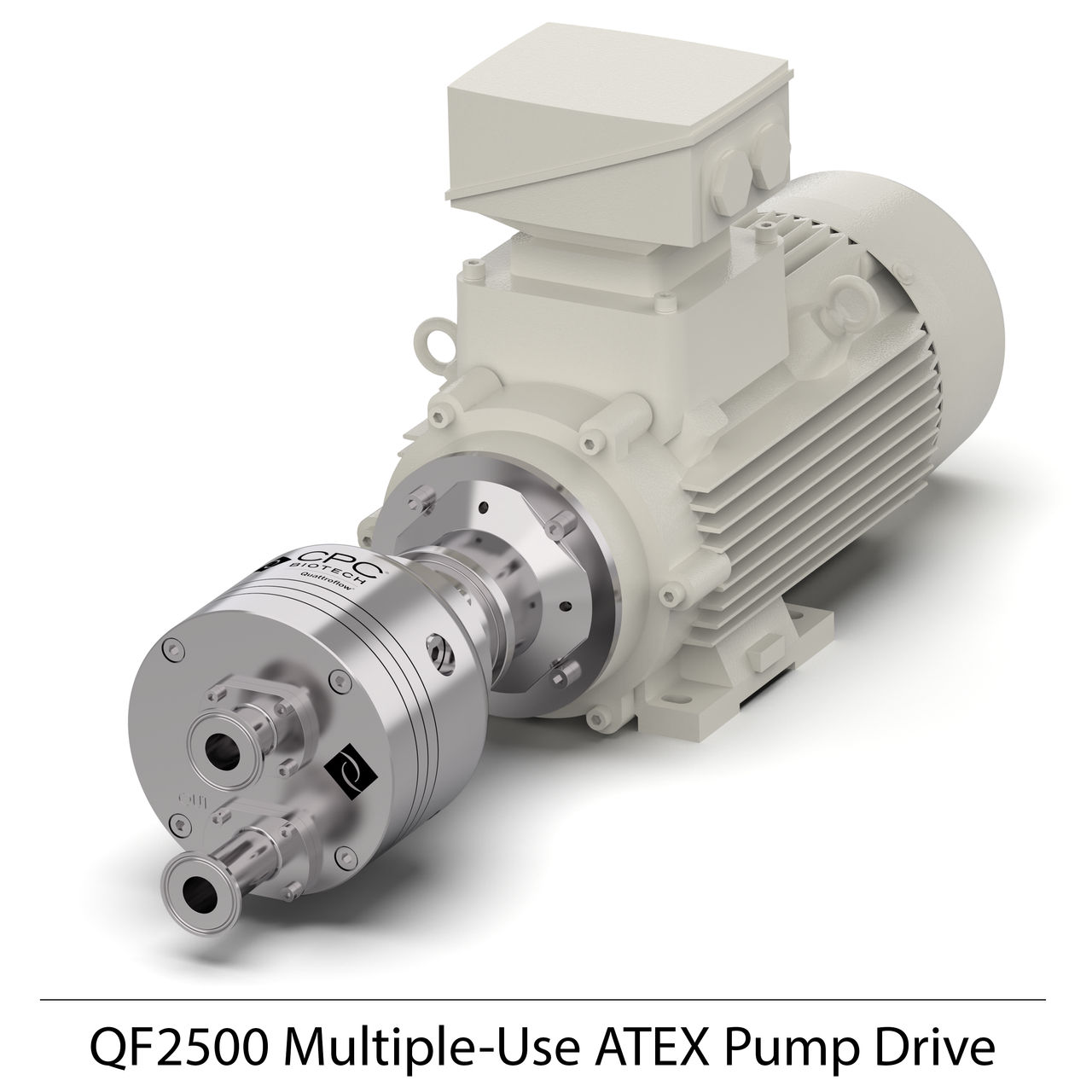

ATEX (Motor) |
- |
- |
- |
II 2G Ex db eb IIB T4 Gb |
II 2G Ex db eb IIB T4 Gb |
— |
|
|
ATEX (Coupling) |
- |
- |
- |
II 2G Ex h IIC T4 Gb |
II 2G Ex h IIC T4 Gb |
— |
|
|
ATEX (Pump) |
- |
- |
- |
II 2G Ex h IIC T4 Gb X |
II 2G Ex h IIC T4 Gb X |
— |
|
|
Motor (Standard) |
Rated speed @ 50Hz |
1445 min-1 |
1800 min-1 |
1800 min-1 |
975 min-1 |
720 min-1 |
1800 min-1 |
|
Voltage |
230/400 V |
400 V |
3 x 230V / 3 x 400V |
400 V |
400 V |
400 V |
|
|
Power |
1.5 kW |
1.5 kW |
- |
1.1 kW |
1.5 kW |
1.5 kW |
|
|
Pump Dimension with Motor and Housing |
Length |
815 mm (32.09") |
824 mm (32.44") |
516 mm (20.32") |
807mm (31.77") |
831mm (32.72") |
926mm (36,46") |
|
Width |
215 mm (8.46") |
275 mm (10.83") |
187 mm (7.36") |
240 mm (9.45") |
205 mm (8.07") |
275 mm (10.83") |
|
|
Height |
295 mm (11.61") |
382.5 mm (15.06") |
210 mm (8.27") |
391 mm (15.39") |
360 mm (14.17") |
403mm (15,87") |
|
|
Pump Weight with Motor and Housing |
|
63 kg (139 lb) |
67 kg (148 lb) |
30.9 kg (68.1 lb) |
92.7kg (204.4 lb) |
99.7kg (219.8 lb) |
67 kg (148 lb) |
Other connection specifications, materials, and motors available on request.
*3 x 230 V as an option

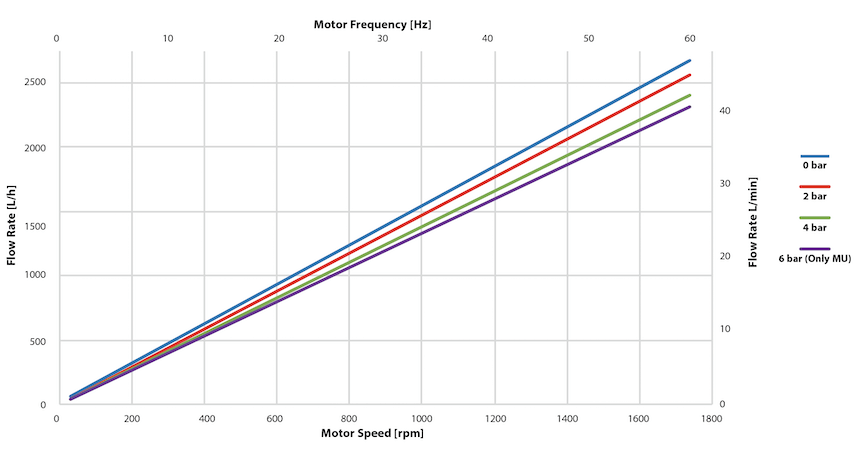

Performance Chart QF2500MU

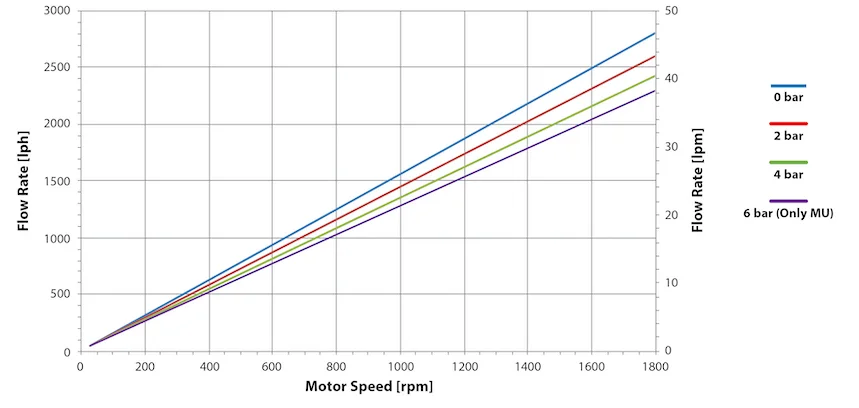

Performance Chart QF2500MU-HT
Brochures
