Product Information
|
|
|
QF20kMU-AC |
|---|---|---|
|
Flow Rate Maximum |
Eccentric Shaft 7° |
16000 lph (267 lpm) |
|
Flow Rate Minimum |
Eccentric Shaft 7° |
1000 lph (16.7 lpm) |
|
Pressure |
Temperature of Fluid < 40°C (104°F) |
6 bar (87 psi) |
|
Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
|
|
Maximum Temperature |
Fluid |
80°C (176°F) |
|
CIP |
90°C (194°F) |
|
|
SIP |
130°C (266°F) |
|
|
Autoclave |
130°C (266°F) |
|
|
Suction Lift Dry at 330 rpm |
Eccentric Shaft 7° |
4 - 4.5 m (13.1 - 14.7 ft) |
|
Volume Specifications |
Approximated Volume per Revolution at Free Output |
470 ml |
|
Filling Volume Without Connectors |
2950 ml |
|
|
Connection Specification (Standard |
Connectors |
2" TC |
|
Position of Connectors |
Front |
|
|
Product Wetted Materials (Standard) |
Pump Housing |
SS316L |
|
Valve Plate |
SS316L |
|
|
Diaphragms |
TPE |
|
|
Valves |
EPDM/SS316L |
|
|
O-rings |
EPDM |
|
|
Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; |
|
Stainless Steel Parts (product wetted) |
3.1; Surface Roughness; Ferrite Content |
|
|
Motor (Standard) |
Rated speed |
1460/474 min-1 (50 Hz) |
|
Voltage |
230/400 V |
|
|
Power |
4 kW |
|
|
Pump Dimension with Motor and Housing |
Length |
1152.5 mm (45.37") |
|
Width |
400 mm (15.75") |
|
|
Height |
416 mm (16.38") |
|
|
Pump Weight with Motor and Housing |
|
217 kg (478 lb) |
Other connection specifications, materials, and motors available on request.

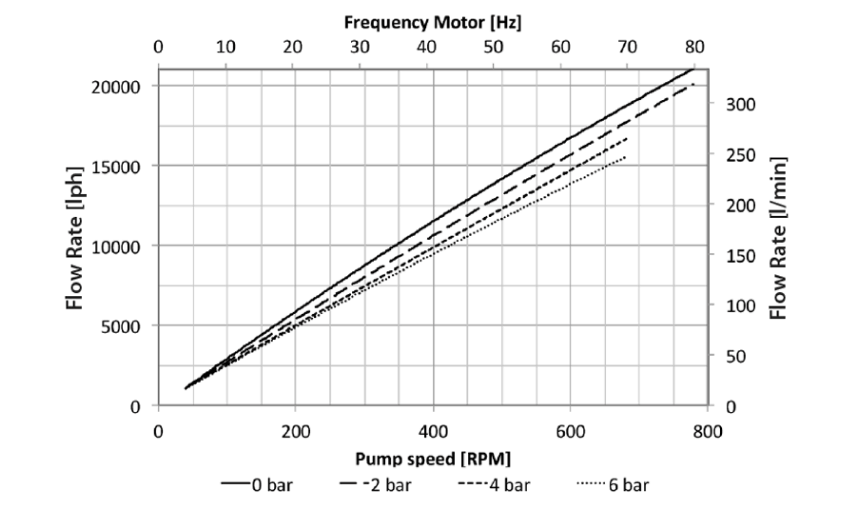

Performance Chart QF20kMU Liter

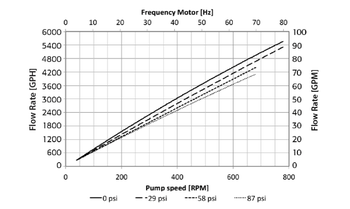

Performance Chart QF20kMU Gallon
