Product Information
|
|
QF10kMU-AC |
QF10kMU-ATEX |
|
|---|---|---|---|
|
Flow Rate Maximum |
Eccentric Shaft 6° |
10000 lph (167 lpm) |
10000 lph (167 lpm) |
|
Flow Rate Minimum |
Eccentric Shaft 6° |
500 lph (8.3 lpm) |
1000 lph (16.7 lpm) |
|
Pressure |
Temperature of Fluid < 40°C (104°F) |
6 bar (87 psi) |
4 bar (58 psi) |
|
Temperature of Fluid > 40°C (104°F) |
4 bar (58 psi) |
4 bar (58 psi) |
|
|
Maximum Temperature |
Fluid |
80°C (176°F) |
80°C (176°F) |
|
CIP |
90°C (194°F) |
80°C (176°F) |
|
|
SIP |
130°C (266°F) |
130°C (266°F) |
|
|
Autoclave |
130°C (266°F) |
130°C (266°F) |
|
|
Ambient Temperature |
Minimum |
10°C (50°F) |
10°C (50°F) |
|
Maximum |
30°C (86°F) |
25°C (77°F) |
|
|
Suction Lift Dry at 1,800 rpm |
Eccentric Shaft 6° |
4 – 4.5 m (13.1-14.7 ft) |
4m (13.1 ft) |
|
Volume Specifications |
Approximated Volume per |
195 ml |
195 ml |
|
Filling Volume Without Connectors |
1,300 ml |
1,300 ml |
|
|
Connection Specification (Standard) |
Connectors |
2" TC |
2" TC |
|
Position of Connectors |
Front |
Front |
|
|
Product Wetted Materials (Standard) |
Pump Housing |
SS316L |
SS316L |
|
Valve Plate |
SS316L |
SS316L |
|
|
Diaphragms |
TPE |
TPE |
|
|
Valves |
EPDM |
EPDM |
|
|
O-rings |
EPDM |
EPDM |
|
|
Certificates/Proofs (Optional) |
Elastomere (product wetted) |
USP <88> Cl. VI; FDA21CFR177; |
USP <88> Cl. VI; FDA21CFR177; |
|
Stainless Steel Parts (product wetted) |
3.1; Surface Roughness; Ferrite Content |
3.1; Surface Roughness; Ferrite Content |
|
|
ATEX (Motor/Drive) |
- |
II 2G Ex db eb IIB T4 Gb |
|
|
ATEX (Coupling) |
- |
II 2G Ex h IIC T4 Gb |
|
|
ATEX (Pump) |
- |
II 2G Ex h IIC T4 Gb X |
|
|
Motor (Standard) |
Rated speed |
2,894 min-1 (50 Hz) |
730 min-1 (50 Hz) |
|
Voltage |
230/400 V |
400 V |
|
|
Power |
3.0 kW |
4.0 kW |
|
|
Gear |
4.32:1 |
- |
|
|
Pump Dimension with Motor and Housing |
Length |
1155 mm (45.48") |
1189 mm (46.81") |
|
Width |
437 mm (17.20") |
314 mm (12.36") |
|
|
Height |
430 mm (16.38") |
511 mm (20.12") |
|
|
Pump Weight with Motor and Housing |
|
185 kg (408 lb) |
229kg (505.36 lb) |
Other connection specifications, materials and motors available on request.

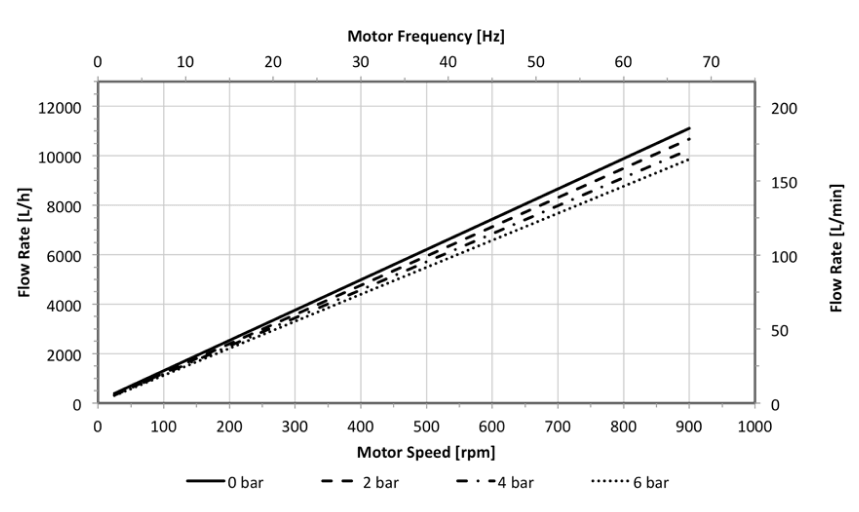

Performance Chart QF10kMU Liter

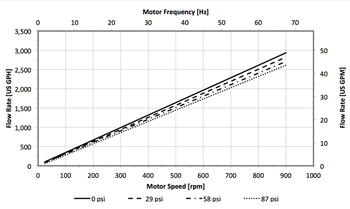

Performance Chart QF10kMU Gallon
