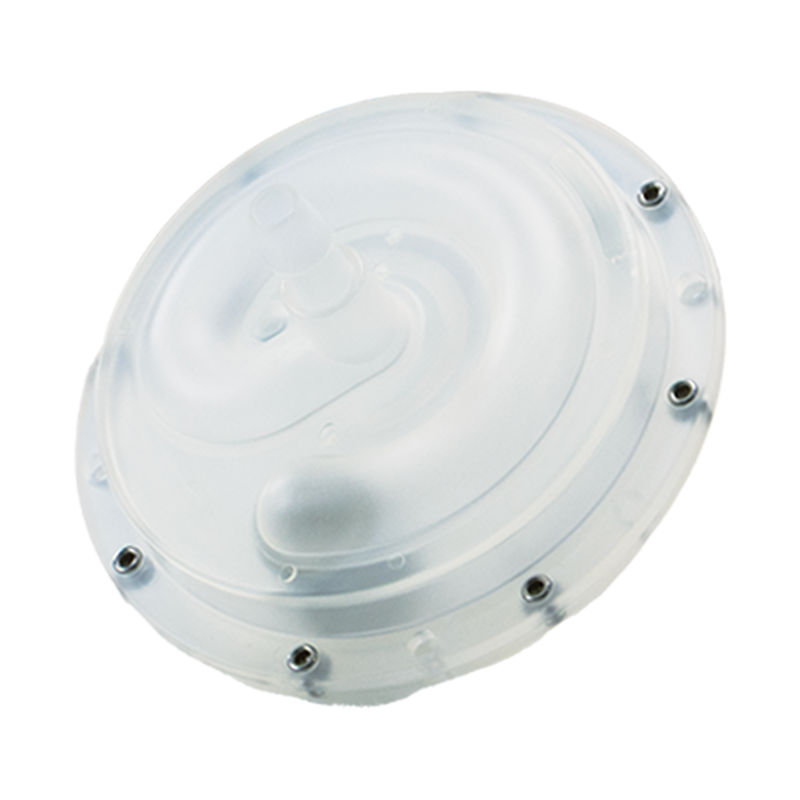

DMP-7000 Pulsation Dampeners

Single-Use Pulsation Dampener

DMP-7000 Pulsation Dampeners reduce pulsation and variation in the flow of critical biopharmaceutical media in processing and transfer applications. Manufactured with all-plastic wetted surfaces that meet USP Class VI, USP 661.2, and USP 788 requirements, the molded design diminishes shear and improves surface smoothness.

Positive displacement pumps, such as diaphragm and peristaltic pumps, produce pulsations in fluid. These pulsations can negatively impact single-use pharmaceutical production processes such as tangential flow filtration and chromatography, which necessitate tightly controlled flow rates and line pressures. DMP-7000 Pulsation Dampeners are designed for single-use applications in bioprocessing applications.

Talk to an Expert

Product Information


Features
Up to 95% reduction in peak-to-peak flow pulsation Wetted fluid path made of Polyurethane and PEEK that meets USP Class VI, USP 661.2, and USP 788 requirements Patented single-use design eliminates pulsation of flow rate and line pressure Gamma-stable to 40 kGy Available for line sizes from 1/8” to 1” ID, with hose barb or triclamp fluid connections


Applications
Filling and Fluid Transfer Chromatography Tangential Flow Filtration Depth Filtration


SPECIFICATIONS
Sizes	1/4”, 3/8”, 1/2”, 3/4”, 1”
Operating Pressure	75 psig (5 bar) max.
Operating Temperature	40°C max.
Burst Pressure	90 psig (6 bar)

Didn't find what you are looking for? Feel free to contact us. We look forward to hearing from you!

Talk to an Expert

Features


Features
Up to 95% reduction in peak-to-peak flow pulsation Wetted fluid path made of Polyurethane and PEEK that meets USP Class VI, USP 661.2, and USP 788 requirements Patented single-use design eliminates pulsation of flow rate and line pressure Gamma-stable to 40 kGy Available for line sizes from 1/8” to 1” ID, with hose barb or triclamp fluid connections


Applications
Filling and Fluid Transfer Chromatography Tangential Flow Filtration Depth Filtration

Specifications


SPECIFICATIONS
Sizes	1/4”, 3/8”, 1/2”, 3/4”, 1”
Operating Pressure	75 psig (5 bar) max.
Operating Temperature	40°C max.
Burst Pressure	90 psig (6 bar)

Downloads

Flyers

DMP-7000 Flyer

Data Sheet

DMP-7000 Pulsation Dampener Data Sheet

Manuals

DMP-7000 Manual
