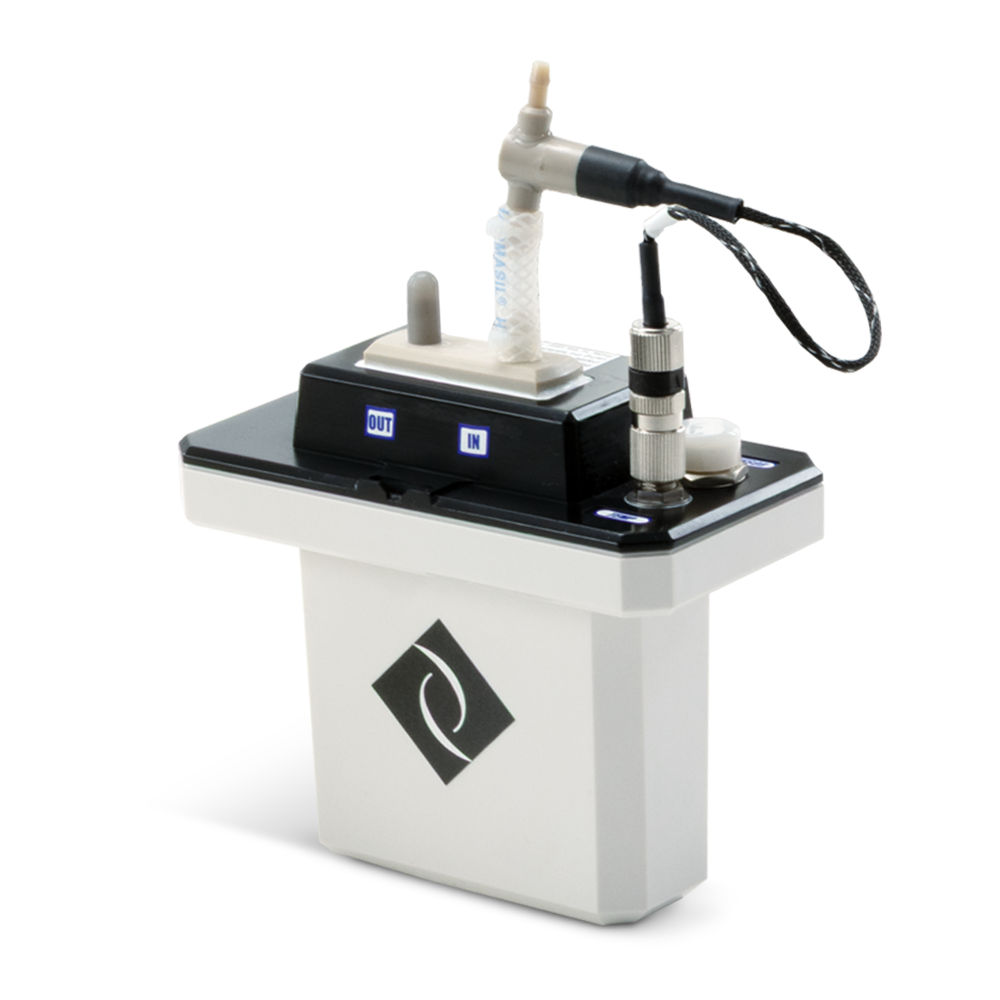

SumoFlo^® CPFM-8103 Ultra Low Flow

Single-Use Ultra Low Flow Coriolis Mass Flow Meters

Achieve accurate and repeatable measurement at extremely low flow rates with SumoFlo^® CPFM-8103 Series Ultra Low Flow Single-Use Coriolis Mass Flow Meter. Featuring flow ranges from 0.002 to 0.05 kg/min, SumoFlo Ultra Low Flow Coriolis Flow Meter is specially designed for measuring liquids in high-purity bio-pharmaceutical and other applications that require all gamma-sterilizable wetted surfaces.

Due to patented Coriolis technology, SumoFlo Ultra Low Flow Meters offer ±1.5% accuracy of mass flow rate readings that is unaffected by flow regime or variations to the velocity profile, allowing for accurate measurements of bubbly or frothy fluids. All fluid contacting surfaces are made of unreinforced PEEK (Polyether ether ketone) that meet USP Class VI, USP 661, and USP 788 standards.

The accompanying Integral Display Transmitter provides instantaneous process metrics, enabling operators to identify and respond to process variations and failures quicker with less wasted time and materials. The 144x144mm panel-mounted display simultaneously shows flow rate, totalized flow, and temperature. Available in either panel mounted or table-top version, the display transmitter is a durable component that can be reused due to non-contact with fluids.

Designed and assembled in California, USA, from American and imported materials. This product is protected by U.S. and International patents.

SumoFlo Flow Meters are also available in seven other models for high flow ranges up to 100 kg/min.

Talk to an Expert

Product Information


Features
Fluid measurement performance independent of fluid properties, eliminating the need to calibrate on different fluids Accuracy unaffected by flow regime (e.g., laminar or turbulent flow) or variations in flow velocity profile 1/8" barb connections Supports fluid flow ranges from 2 g/min. to 50 g/min. Disposable drop-in sensor option for single use applications CE Marking certified Custom sensor mounting cradle available Accuracy: ±1.5% of mass flow rate reading or ±0.3 g/min, whichever is higher Optional Integral Display Transmitter shows flow rate, totalized flow, and temperature


Applications
Chromatography Fluids with varying density or viscosity Depth Filtration Tangential Flow Filtration Pure water or ultra-high purity chemicals


SPECIFICATIONS
Fluid Type	Liquids
Accuracy	±1.5% of reading or ±0.3 g/min, whichever is higher
Maximum Operating Temperature	40° C
Input Power	24 Vdc ±10%
Sizes Offered	1/8"


MEASUREMENT Specifications
Sensor Model	CSEN-8103-U08*
Flow Range**	2–50 g/min
Temperature	Ambient: 0°–50°C Fluid: 2°–40°C
Operating Pressure	30 PSIG max. (80 psig max. upon request)

*For applications involving temperature below 16^°C, consult factory for special calibration.
**Pressure drop at max. flow range = 10 psi in water (1cP)


Electrical Specifications
Power Consumption	Max 6 W
Programming	Operator parameter configuration through configuration port with a PC
Digital Input/Output Module	Configurable as Frequency or Digital I/O Optional MODBUS over RS485
Analog Output Module	1x 4-20 mA for mass flow rate or volumetric flow rate 2x 4-20 mA for mass flow rate, volumetric flow rate, temperature or density 3x 4-20 mA for mass flow rate, volumetric flow rate, temperature or density 4x 4-20 mA mass flow rate, volumetric flow rate, temperature and density


CERTIFICATIONS/COMPLIANCES
USP Class VI Material Certification	CE Compliance via the following testing: EN61000-4-2: Electrostatic Discharge EN61000-4-3: Radiated Immunity (and Radiated Emissions) EN61000-4-4: Electrical Fast Transients EN61000-4-5: Surge – Power Line EN61000-4-6: Conducted Immunity
USP 661.2 for Containers/Plastics
USP 788.1 for Containers/Plastics
Directive 2011/65/EU (RoHS)

Note: Specifications are subject to change without notice.

Didn't find what you are looking for? Feel free to contact us, we look forward to hearing from you!

TALK TO AN EXPERT

Features


Features
Fluid measurement performance independent of fluid properties, eliminating the need to calibrate on different fluids Accuracy unaffected by flow regime (e.g., laminar or turbulent flow) or variations in flow velocity profile 1/8" barb connections Supports fluid flow ranges from 2 g/min. to 50 g/min. Disposable drop-in sensor option for single use applications CE Marking certified Custom sensor mounting cradle available Accuracy: ±1.5% of mass flow rate reading or ±0.3 g/min, whichever is higher Optional Integral Display Transmitter shows flow rate, totalized flow, and temperature


Applications
Chromatography Fluids with varying density or viscosity Depth Filtration Tangential Flow Filtration Pure water or ultra-high purity chemicals

Specifications


SPECIFICATIONS
Fluid Type	Liquids
Accuracy	±1.5% of reading or ±0.3 g/min, whichever is higher
Maximum Operating Temperature	40° C
Input Power	24 Vdc ±10%
Sizes Offered	1/8"


MEASUREMENT Specifications
Sensor Model	CSEN-8103-U08*
Flow Range**	2–50 g/min
Temperature	Ambient: 0°–50°C Fluid: 2°–40°C
Operating Pressure	30 PSIG max. (80 psig max. upon request)

*For applications involving temperature below 16^°C, consult factory for special calibration.
**Pressure drop at max. flow range = 10 psi in water (1cP)


Electrical Specifications
Power Consumption	Max 6 W
Programming	Operator parameter configuration through configuration port with a PC
Digital Input/Output Module	Configurable as Frequency or Digital I/O Optional MODBUS over RS485
Analog Output Module	1x 4-20 mA for mass flow rate or volumetric flow rate 2x 4-20 mA for mass flow rate, volumetric flow rate, temperature or density 3x 4-20 mA for mass flow rate, volumetric flow rate, temperature or density 4x 4-20 mA mass flow rate, volumetric flow rate, temperature and density


CERTIFICATIONS/COMPLIANCES
USP Class VI Material Certification	CE Compliance via the following testing: EN61000-4-2: Electrostatic Discharge EN61000-4-3: Radiated Immunity (and Radiated Emissions) EN61000-4-4: Electrical Fast Transients EN61000-4-5: Surge – Power Line EN61000-4-6: Conducted Immunity
USP 661.2 for Containers/Plastics
USP 788.1 for Containers/Plastics
Directive 2011/65/EU (RoHS)

Note: Specifications are subject to change without notice.

Downloads

Flyers

SumoFlo CPFM-8103 Ultra Low Flow Flyer

SumoFlo CPFM-8103 Integral Display Transmitter Flyer

Spec Sheets

SumoFlo CPFM-8103 Ultra Low Flow Spec Sheet

Application Notes

SumoFlo Application Note: Gamma Shadowing

Manuals

SumoFlo CPFM-8103 Ultra Low Flow Manual
