SumoFlo^® CPFM-8103

Single-Use Coriolis Mass Flow Meters

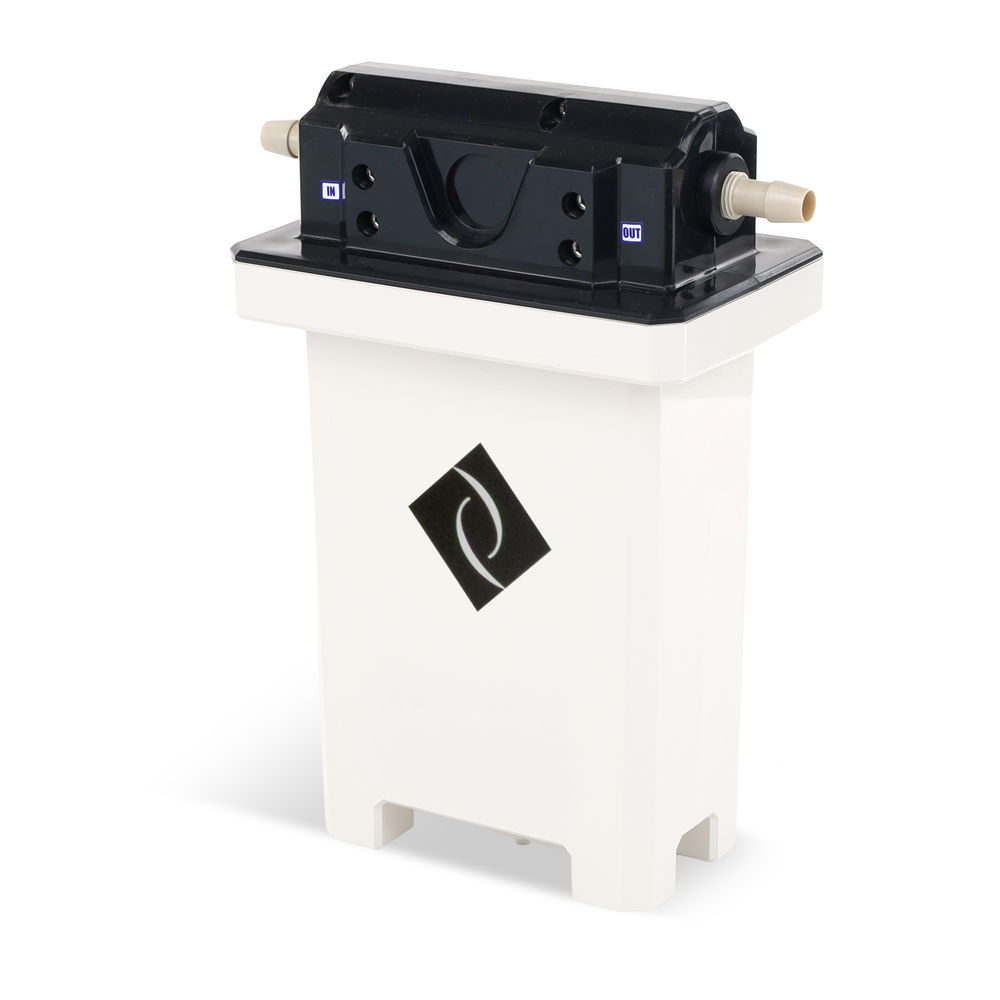

SumoFlo CPFM-8103 Series Single-Use Coriolis Flow Meters, the world's only gamma-sterilizable Coriolis mass flow meters, provide best in class accuracy of ±1% of reading. With flow ranges from 0.05 to 100 kg/min and available in seven models, SumoFlo Coriolis Flow Meters are designed to measure liquids in high-purity bioprocessing applications that require all gamma-sterilizable wetted surfaces.

SumoFlo Flow Meters utilize patented Coriolis technology to offer ±1% accuracy of mass flow rate readings unaffected by flow regime or variations to the velocity profile, allowing for precise measurement of bubbly or frothy fluids. Available in a disposable, drop-in form factor for single-use applications, all fluid contacting surfaces are made of unreinforced PEEK (Polyether ether ketone) that meet USP Class VI, USP 661, and USP 788 standards.

Pair with the optional SumoFlo Integral Display Transmitter for instantaneous process metrics, enabling operators to rapidly identify and respond to process variations and failures. Featuring a 144mm x 144mm panel-mounted four-line display to simultaneously show flow rate, totalized flow, density and temperature, the display transmitter offers re-zero and reset totalizer capabilities from the front of the display pane. this durable, reusable component with non-contact with fluids is available in either a panel-mounted or table-top version.

Designed and assembled in California, USA, from American and imported materials. This product is protected by U.S. and international patents.

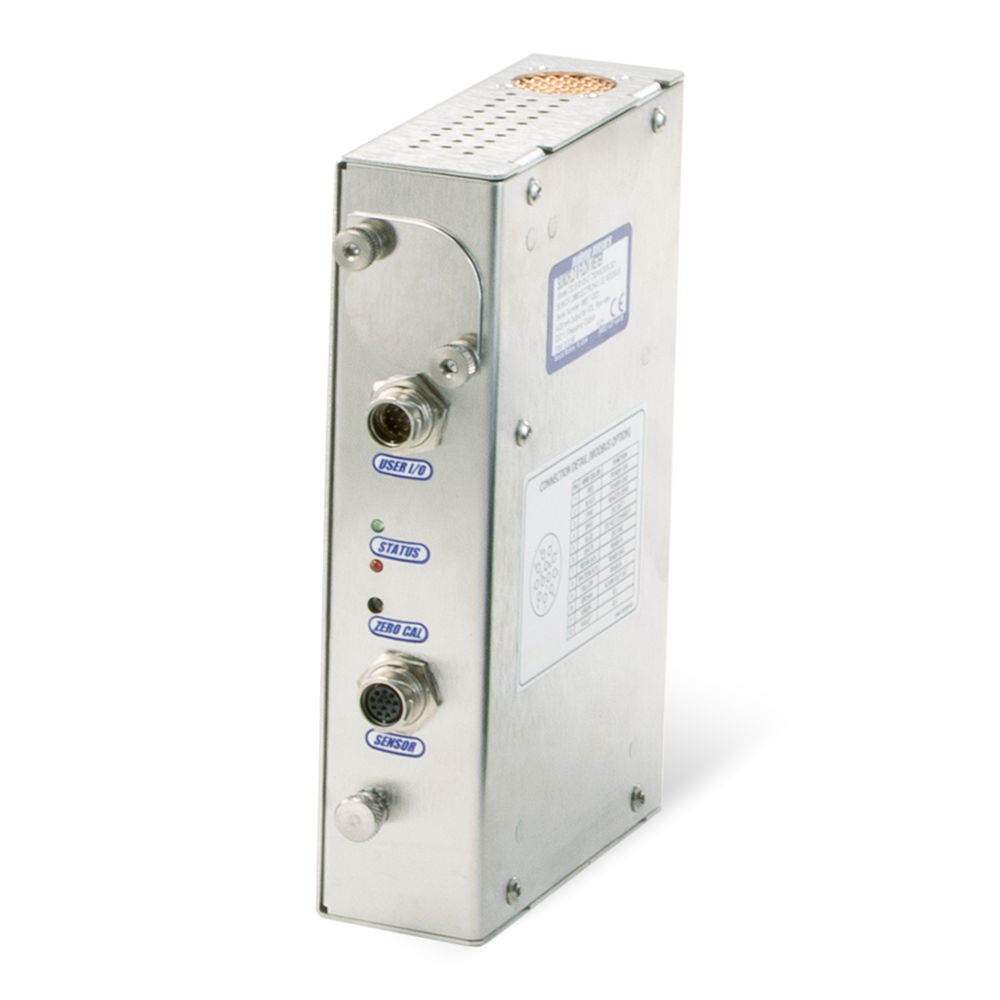

SumoFlo Flow Meters are also available in a low flow version with a flow rate range of 0.002 to 0.05 kg/min.

Talk to an Expert

Product Information


Features
Fluid measurement performance is independent of fluid properties, eliminates the need to calibrate on different fluids Accuracy is unaffected by flow regime (e.g., laminar or turbulent flow) or variations in flow velocity profile Multiple sensor sizes from 1/8" to 1" (available with barb or tri-clamp connections) Supports fluid flow ranges from 20 g/min. to 100 kg/min. Disposable drop-in sensor option for single use applications CE marking certified Custom sensor mounting cradle available Accuracy ±1% of mass flow rate reading, unaffected by flow regime or velocity profile variations Accompanying Integral Display Transmitter displays flow rate, totalized flow, density and temperature to provide instantaneous process metrics


APPLICATIONS
Pure water or ultra high purity chemicals Chromatography Fluids with varying density or viscosity Depth Filtration Tangential Flow Filtration


SPECIFICATIONS
Fluid Type	Liquids
Accuracy	±1% of reading
Output	4 to 20 mA, 0 to 10 kHz
Fluid Pressure	0 to 80 psig max
Input Power	24 Vdc ±10%
Sizes Offered	1/8", 1/4”, 3/8", 1/2", 3/4", 1"


Material Specifications
Process Connections	1/8", 1/4", 3/8", 1/2", 3/4", or 1" barb connection* Mini TriClamp, 1" laddish TriClamp
Wetted Material	USP Class VI PEEK (Polyether Ether Ketone) USP Class VI Silicone 316L Stainless Steel
Programming	Standard 3m; Maximum up to 30m

*Consult the factory for other types of process connection options.

MEASUREMENT SPECIFICATIONS


Model CSEN-8103-**	031	032	062	063	082	151	152	153
Mass Flow Accuracy	±1% of rate for 10% to 100% of full scale rated flow rate ±1% of rate + Z.O.S. for flow rates <10% of full scale rated flow rate
Density Accuracy	±1%
Temperature*	Ambient: 0°–50°C Fluid: 2°–40°C (for applications involving temperatures below 10°C, consult factory for special calibration)
Operating Pressure	45 psig (3.10 Bar G) max.	60 psig (4.14 Bar G) max.	80 PSIG max.
Flow Range**	0.05 — 1.5 kg/min	0.02 — 3 kg/min	0.5 — 5 kg/min	0.9 — 9 kg/min	2 — 20 kg/min	4 — 40 kg/min	6 — 60 kg/min	10 — 100 kg/min
Zero Offset Stability (Z.O.S.)	0.0023 kg/min		0.00375 kg/min	0.007 kg/min	0.015 kg/min	0.03 kg/min	0.045 kg/min

*Dynamic temperature compensation available.
**Pressure drop at max. flow range = 10 psi in water (1cP).


Electrical Specifications
Power Consumption	Max 6 W
Programming	Operator parameter configuration through configuration port with a PC
Digital Input/Output Module	Configurable as Frequency or Digital I/O Optional MODBUS over RS485
Analog Output Module	1x 4-20 mA for mass flow rate or volumetric flow rate 2x 4-20 mA for mass flow rate, volumetric flow rate, temperature or density 3x 4-20 mA for mass flow rate, volumetric flow rate, temperature or density 4x 4-20 mA mass flow rate, volumetric flow rate, temperature and density


CERTIFICATIONS/COMPLIANCES
USP Class VI Material Certification	CE Compliance via the following testing: EN61000-4-2: Electrostatic Discharge EN61000-4-3: Radiated Immunity (and Radiated Emissions) EN61000-4-4: Electrical Fast Transients EN61000-4-5: Surge – Power Line EN61000-4-6: Conducted Immunity
USP 661.2 for Containers/Plastics
USP 788.1 for Containers/Plastics
Directive 2011/65/EU (RoHS)

Note: Specifications are subject to change without notice.

Didn't find what you are looking for? Feel free to contact us, we look forward to hearing from you!

TALK TO AN EXPERT

Features


Features
Fluid measurement performance is independent of fluid properties, eliminates the need to calibrate on different fluids Accuracy is unaffected by flow regime (e.g., laminar or turbulent flow) or variations in flow velocity profile Multiple sensor sizes from 1/8" to 1" (available with barb or tri-clamp connections) Supports fluid flow ranges from 20 g/min. to 100 kg/min. Disposable drop-in sensor option for single use applications CE marking certified Custom sensor mounting cradle available Accuracy ±1% of mass flow rate reading, unaffected by flow regime or velocity profile variations Accompanying Integral Display Transmitter displays flow rate, totalized flow, density and temperature to provide instantaneous process metrics


APPLICATIONS
Pure water or ultra high purity chemicals Chromatography Fluids with varying density or viscosity Depth Filtration Tangential Flow Filtration

Specifications


SPECIFICATIONS
Fluid Type	Liquids
Accuracy	±1% of reading
Output	4 to 20 mA, 0 to 10 kHz
Fluid Pressure	0 to 80 psig max
Input Power	24 Vdc ±10%
Sizes Offered	1/8", 1/4”, 3/8", 1/2", 3/4", 1"


Material Specifications
Process Connections	1/8", 1/4", 3/8", 1/2", 3/4", or 1" barb connection* Mini TriClamp, 1" laddish TriClamp
Wetted Material	USP Class VI PEEK (Polyether Ether Ketone) USP Class VI Silicone 316L Stainless Steel
Programming	Standard 3m; Maximum up to 30m

*Consult the factory for other types of process connection options.

MEASUREMENT SPECIFICATIONS


Model CSEN-8103-**	031	032	062	063	082	151	152	153
Mass Flow Accuracy	±1% of rate for 10% to 100% of full scale rated flow rate ±1% of rate + Z.O.S. for flow rates <10% of full scale rated flow rate
Density Accuracy	±1%
Temperature*	Ambient: 0°–50°C Fluid: 2°–40°C (for applications involving temperatures below 10°C, consult factory for special calibration)
Operating Pressure	45 psig (3.10 Bar G) max.	60 psig (4.14 Bar G) max.	80 PSIG max.
Flow Range**	0.05 — 1.5 kg/min	0.02 — 3 kg/min	0.5 — 5 kg/min	0.9 — 9 kg/min	2 — 20 kg/min	4 — 40 kg/min	6 — 60 kg/min	10 — 100 kg/min
Zero Offset Stability (Z.O.S.)	0.0023 kg/min		0.00375 kg/min	0.007 kg/min	0.015 kg/min	0.03 kg/min	0.045 kg/min

*Dynamic temperature compensation available.
**Pressure drop at max. flow range = 10 psi in water (1cP).


Electrical Specifications
Power Consumption	Max 6 W
Programming	Operator parameter configuration through configuration port with a PC
Digital Input/Output Module	Configurable as Frequency or Digital I/O Optional MODBUS over RS485
Analog Output Module	1x 4-20 mA for mass flow rate or volumetric flow rate 2x 4-20 mA for mass flow rate, volumetric flow rate, temperature or density 3x 4-20 mA for mass flow rate, volumetric flow rate, temperature or density 4x 4-20 mA mass flow rate, volumetric flow rate, temperature and density


CERTIFICATIONS/COMPLIANCES
USP Class VI Material Certification	CE Compliance via the following testing: EN61000-4-2: Electrostatic Discharge EN61000-4-3: Radiated Immunity (and Radiated Emissions) EN61000-4-4: Electrical Fast Transients EN61000-4-5: Surge – Power Line EN61000-4-6: Conducted Immunity
USP 661.2 for Containers/Plastics
USP 788.1 for Containers/Plastics
Directive 2011/65/EU (RoHS)

Note: Specifications are subject to change without notice.

Downloads

Flyers

SumoFlo CPFM-8103 Flyer

SumoFlo CPFM-8103 Integral Display Transmitter Flyer

Spec Sheets

SumoFlo CPFM-8103 Spec Sheet

Application Notes

SumoFlo Application Note: Gamma Shadowing

Manuals

SumoFlo CPFM-8103 Manual

Didn't find what you are looking for? Feel free to contact us, we look forward to hearing from you!

TALK TO AN EXPERT
