Lobe Pumps in Biopharma
In biopharmaceutical manufacturing, lobe pumps provide the capacity to maximise production scale while providing gentle product handling in critical applications. Due to their hygienic design, the pumps are cleanable and can be sterilized for aseptic product handling and therefore help to preserve product integrity in applications such as filtration, purification or clarification.
The CPC Biotech QL Series Advantage
To meet the rigorous requirements in biopharmaceutical applications, CPC Biotech provides sophisticated engineered lobe pumps that answer to the most critical points in lobe pump design. QL Series lobe pumps are manufactured within extremely high tolerances ensuring optimal pumping efficiencies and elimination of abrasion and product contamination.
Main Advantages of QL Series Lobe Pumps:
- Sterility by design with full CIP/SIP compatibility
- Regulatory confidence built in, using FDA- and biopharma grade seals
- Engineered for endurance, delivering long service life with minimal maintenance
- Designed to adapt, with customizable configurations and automation-ready integration

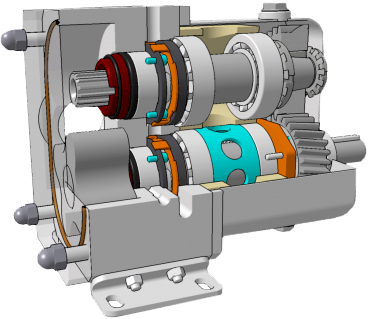

- Simplified maintenance with front-loaded seal design
- Interchangeable single or double mechanical seal layout
- Application-specific lobe design and selection
|
Pump Name |
Qmax CIP @ 2bar [m³/h] |
Qmax product @ 5bar [m³/h] |
Qmax product @ 10bar [m³/h] |
Displacement Per rev (Liter/rev) |
|---|---|---|---|---|
|
QL115s |
24,3 |
8 |
5 |
0,550 |
|
QL115si |
31,5 |
12 |
8 |
0,750 |
|
QL115i |
43 |
18 |
13 |
0,950 |
|
QL115l |
56,5 |
24 |
18 |
1,230 |
|
QL130s |
72 |
28 |
21 |
1,600 |
|
QL130l |
100 |
45 |
36 |
2,340 |
