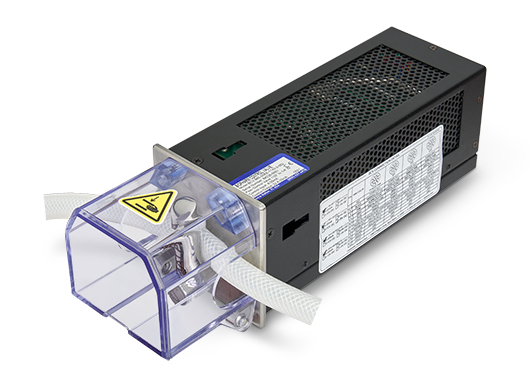

BCV-980
Maintain stable and reliable process operation with BCV-980 Control Valves, intelligent pinch valves designed to precisely control flow or pressure in seconds in critical bioprocessing applications such as media preparation and tangential flow filtration. This integrated, robust solution is compatible with a wide range of tubing sizes, offers authomatic and remote modes of operation, and utilizes proprietary integral PID control algorithms to deliver repeatable performance.
|
Performance Specifications |
|
|---|---|
|
Fluid Temperature |
4° – 60°C* |
|
Ambient Temperature/Humidity |
0° – 40°C / 30% – 80% RH, non-condensing |
|
Maximum Expected Operating Pressure |
6 bar (g) |
|
Differential Pressure Range |
0 – 6 bar (d) |
*Contact us for higher temperature applications.
|
Electrical Specifications |
|
|---|---|
|
Power Supply Input |
24 Vdc ±10% |
|
Current Consumption |
4 A max, 1 A typical |
|
Alarm Signals |
Max 30 Vdc, 200 mA NPN open collector |
|
Control Signal In* |
4 – 20 mA, 1 – 5 Vdc, 0 – 5 Vdc, 0 – 10 Vdc |
|
Signal Out (Valve Position) |
4 – 20 mA |
*Up to four external analog signals.
|
Material Specifications |
|
|---|---|
|
Wetted Parts |
None |
|
Non Wetted Parts, Enclosure |
Non-magnetic 316L Stainless Steel, Non-magnetic Powder-coated Stainless Steel |
|
Physical Specifications |
|
|---|---|
|
Mounting Orientation |
Performance unaffected by mounting orientation |
|
Fluid Connections |
1/8” – 1” ID flexible tube, braided or un-braided |
|
Ingress Rating |
NEMA 4X (optional) |
|
Panel Mounting |
Universal thickness (accommodates any panel thickness) |
|
Panel Cut out |
1/4 DIN (88mm x 88mm) |
|
Mass |
2.6 kg – 3.3 kg |
|
Features |
Benefits |
|---|---|
|
Single enclosure for valve and control electronics |
Minimal maintenance required |
|
Utilizes proprietary PID control algorithms |
Monitors up to four analog signals from external sensors or controllers |
|
Easy installation |
All electrical cabling facilitated from the rear panel |
|
