Product Information
KEY FACTS |
|---|
|
OEM Specifications |
|---|
|
Applications
In upstream processes such as buffer and media preparation or cell cultivation, BioPro FlowSU In-Line Flow Meters provide feedback in pump or dose feeding processes.
In downstream applications such as depth filtration, tangential flow filtration, in-line buffer formulation, or chromatography, BioPro FlowSU can be used to hygienically and precisely measure the flow. The sterilizable in-line flow meter can be easily integrated and combined with different pump types, such as Quattroflow® Single Use Pumps. The integrated bubble detection adds safety to air-sensitive applications.
- Minimal Shear: Straight flow-cell design has minimal impact on sensitive cells and proteins.
- Ease of Use: Every sensor size easily connects to a standard transmitter mount for seamless integration.
- Bubble Detector: Visual LED alarm as well as integrable into PLC.
- Calibration: Pre-calibrated for every sensor size, ensuring accuracy, seamless startup, and an adjustable calibration table.
- Transmitter: Easy-to-mount holder profile with integrated electronics.
- Smart Sensor: Single-use flow measurement and air-in-line detection with one sensor.
- Size: One transmitter size scales to all tubing sizes.
- Single Use: No regular recalibrations with the SU sensor.

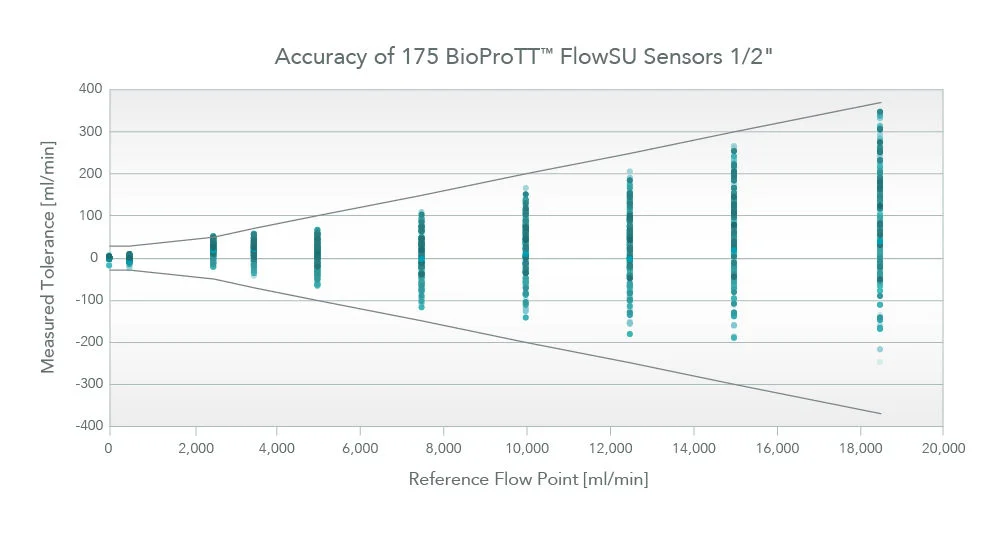

Fig. 1: In total, 175 FlowSU 1/2" were tested with water at 21°C.
All sensors were within the defined specification without an individual calibration of each sensor.

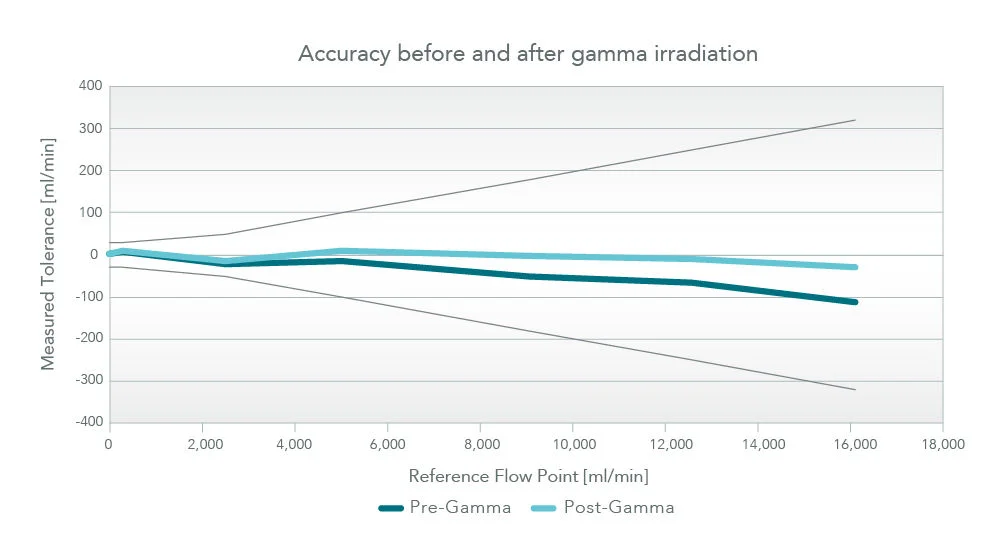

Fig. 2: Comparison of the accuracy of the BioPro FlowSU System 1/2" before and after gamma irradiation (50 kGy). The curves represent the mean over 25 samples tested.
Videos
Introducing BioPro FlowSU System
Didn't find what you are looking for? Feel free to contact us. We look forward to hearing from you!
