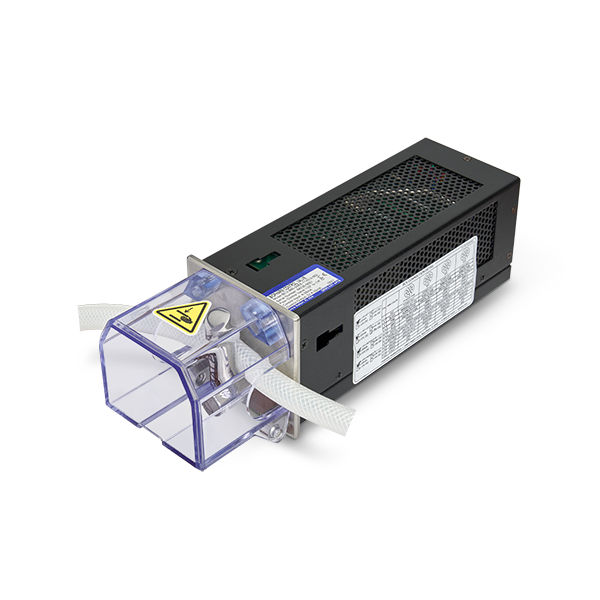

Product Information
Features |
|---|
|
|
Performance Specifications |
|
|---|---|
|
Fluid Temperature |
4° – 60°C* |
|
Ambient Temperature/Humidity |
0° – 40°C / 30% – 80% RH, non-condensing |
|
Maximum Expected Operating Pressure |
6 bar (g) |
|
Differential Pressure Range |
0 – 6 bar (d) |
*Contact us for higher temperature applications.
|
Electrical Specifications |
|
|---|---|
|
Power Supply Input |
24 Vdc ± 10% |
|
Current Consumption |
4 A max, 1 A typical |
|
Alarm Signals |
Max 30 Vdc, 200 mA NPN open collector |
|
Control Signal In* |
4 – 20 mA, 1 – 5 Vdc, 0 – 5 Vdc, 0 – 10 Vdc |
|
Signal Out (Valve Position) |
4 – 20 mA |
*Up to four external analog signals.
|
Material Specifications |
|
|---|---|
|
Wetted Parts |
None |
|
Non Wetted Parts, Enclosure |
Non-magnetic 316L Stainless Steel, Non-magnetic Powder-coated Stainless Steel |
|
Physical Specifications |
|
|---|---|
|
Mounting Orientation |
Performance unaffected by mounting orientation |
|
Fluid Connections |
1/8” – 1” ID flexible tube, braided or un-braided |
|
Ingress Rating |
NEMA 4X (optional) |
|
Panel Mounting |
Universal thickness (accommodates any panel thickness) |
|
Panel Cut out |
1/4 DIN (88mm x 88mm) |
|
Mass |
2.6 kg – 3.3 kg |
Didn't find what you are looking for? Feel free to contact us. We look forward to hearing from you!
