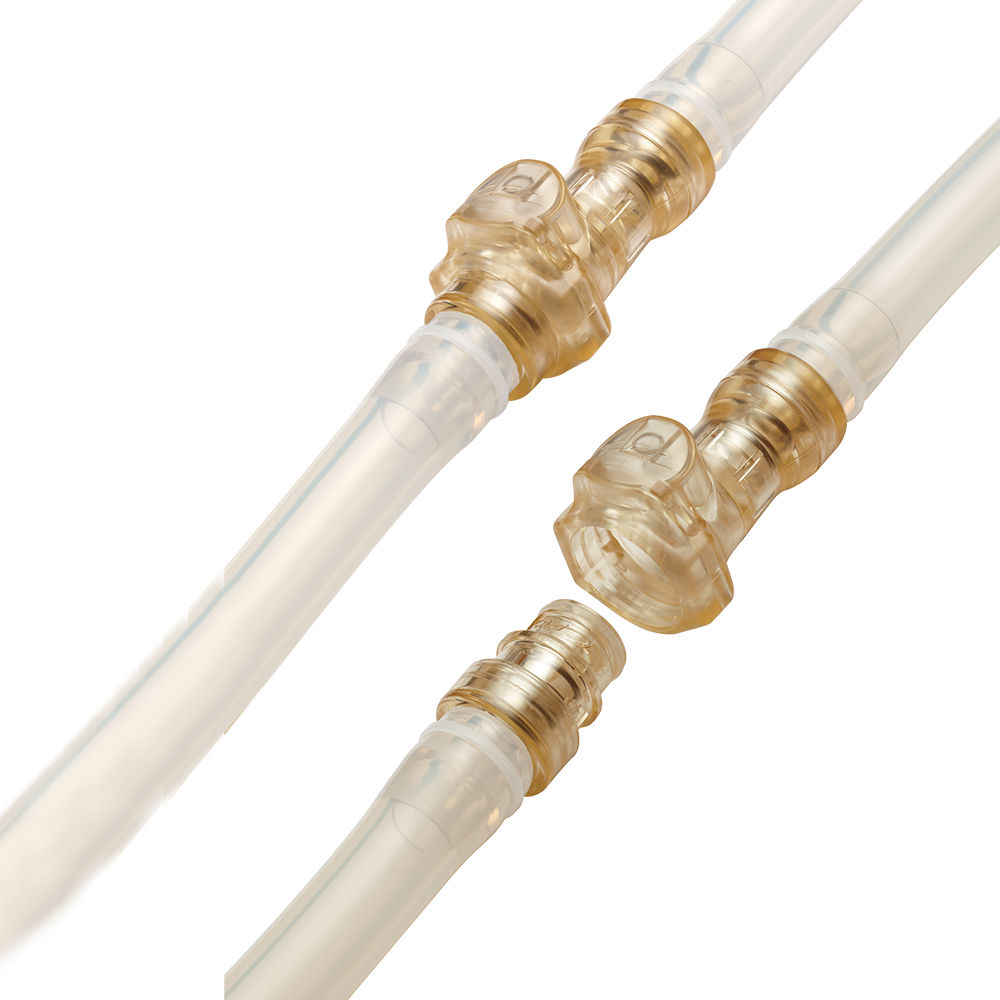

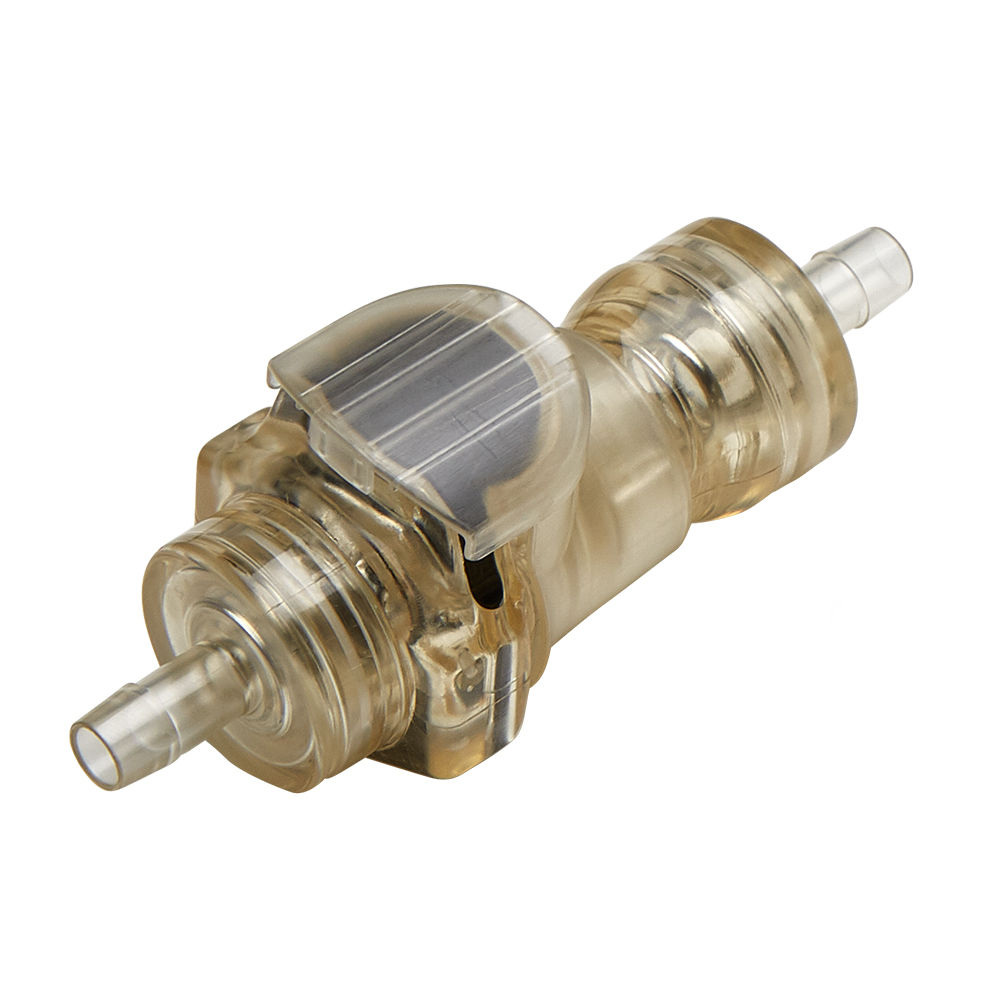

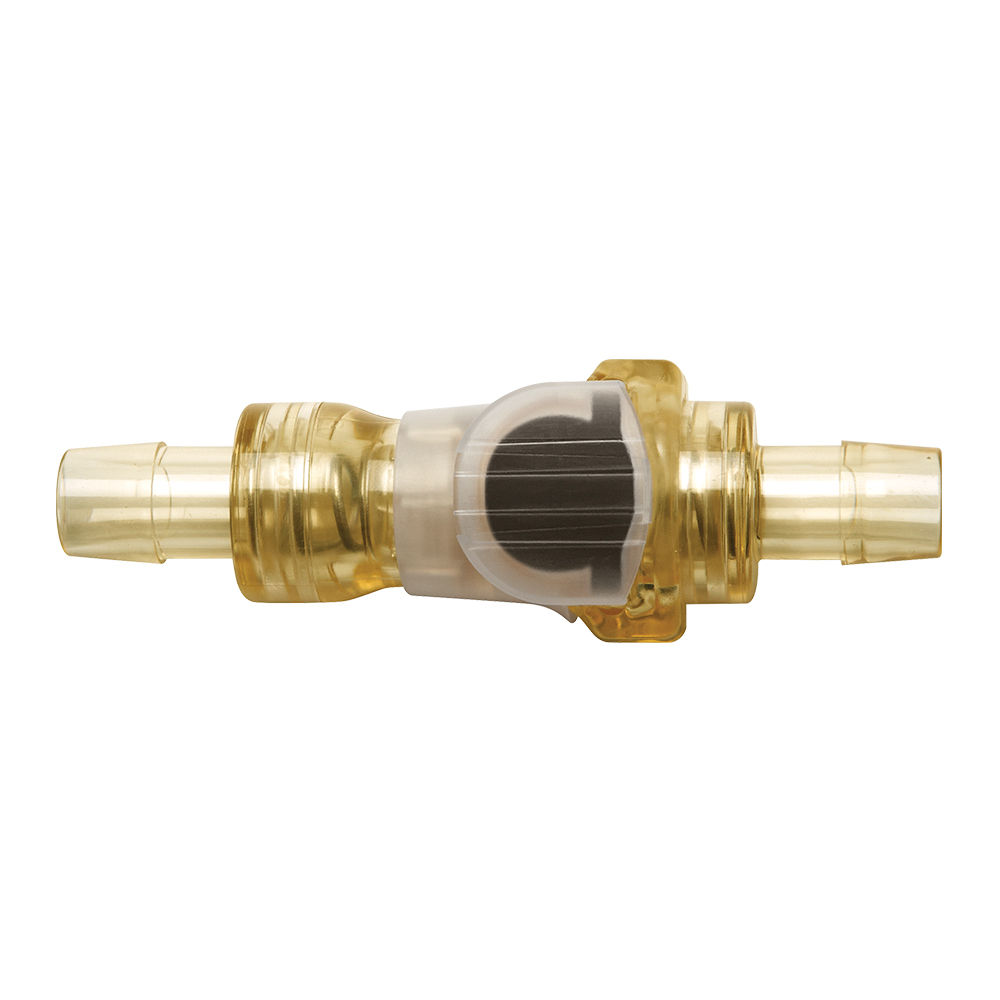

HFC Disconnect
HFC Disconnect
.jpg.thumb.1280.1280.png)
.jpg.thumb.1280.1280.png)
.jpg.thumb.1280.1280.png)
Spec Sheet
Video
HFC Disconnect: How to Guide

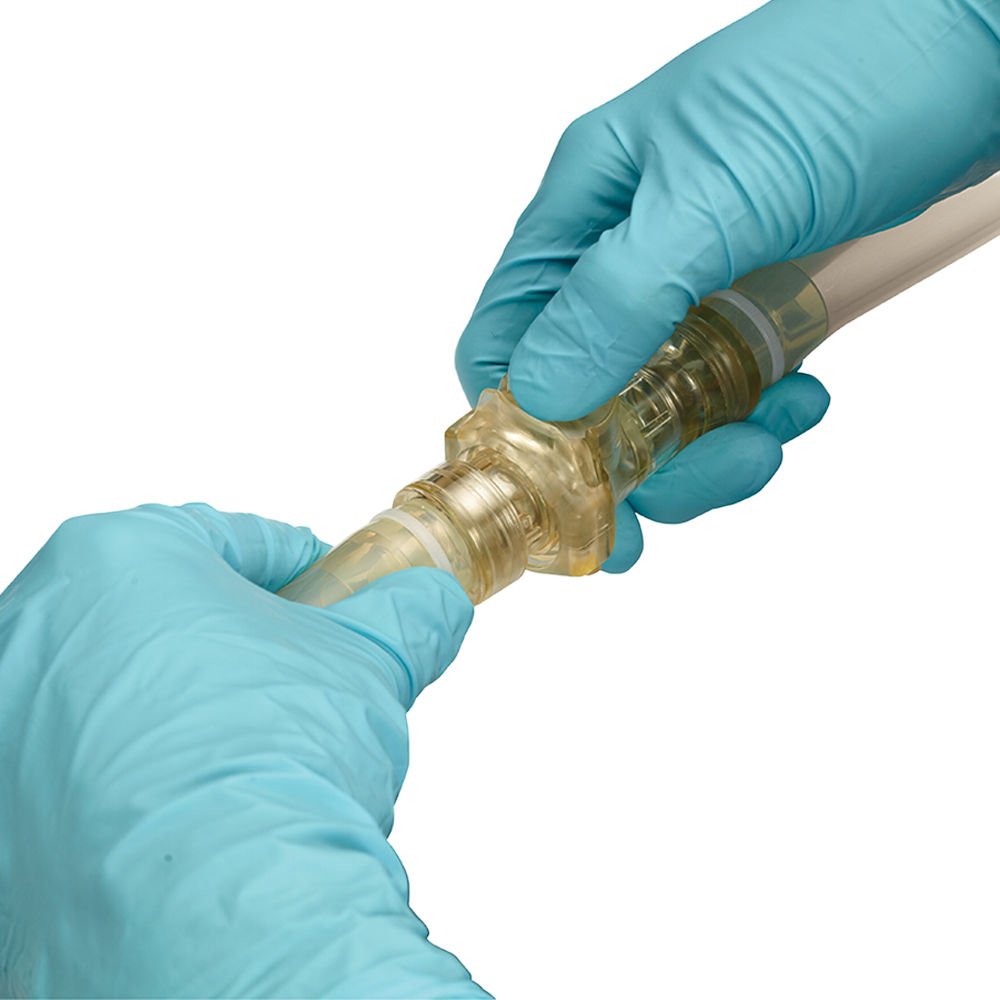

The HFC Disconnects offer quick, secure, leak-free disconnects. In this learn the 2 steps to perform a sterile disconnect.
|
OPERATING CONDITIONS (FLUID TRANSFER) |
|
|---|---|
|
Pressure: |
Up to 75 psi, 5.17 bar |
|
Temperature: |
34°F (1°C) to 104°F (40°C) |
|
CV VALUE |
|
|---|---|
|
HFC Disconnect 1/4” CV Value 0.77 |
|
|
HFC Disconnect 3/8” CV Value 1.1 |
|
|
HFC Disconnect 1/2” CV Value 1.9 |
|
|
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses). |
|
Materials |
|
|---|---|
|
Main Components: |
Polysulfone (amber tint) |
|
O-rings: |
Silicone (clear), platinum-cured |
|
Flow Path Springs: |
Alloy C-276 |
|
STERILIZATION |
|
|---|---|
|
Gamma: |
Up to 50 kGy irradiation. Sterilize coupled or uncoupled. |
|
Autoclave: |
Up to 270°F (132°C) for 60 minutes. One cycle. |
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
Spec Sheet
Video
HFC Disconnect: How to Guide
The HFC Disconnects offer quick, secure, leak-free disconnects. In this learn the 2 steps to perform a sterile disconnect.
|
OPERATING CONDITIONS (FLUID TRANSFER) |
|
|---|---|
|
Pressure: |
Up to 75 psi, 5.17 bar |
|
Temperature: |
34°F (1°C) to 104°F (40°C) |
|
CV VALUE |
|
|---|---|
|
HFC Disconnect 1/4” CV Value 0.77 |
|
|
HFC Disconnect 3/8” CV Value 1.1 |
|
|
HFC Disconnect 1/2” CV Value 1.9 |
|
|
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses). |
|
Materials |
|
|---|---|
|
Main Components: |
Polysulfone (amber tint) |
|
O-rings: |
Silicone (clear), platinum-cured |
|
Flow Path Springs: |
Alloy C-276 |
|
STERILIZATION |
|
|---|---|
|
Gamma: |
Up to 50 kGy irradiation. Sterilize coupled or uncoupled. |
|
Autoclave: |
Up to 270°F (132°C) for 60 minutes. One cycle. |
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
