SaniQuik

SaniQuik Sanitary Terminations

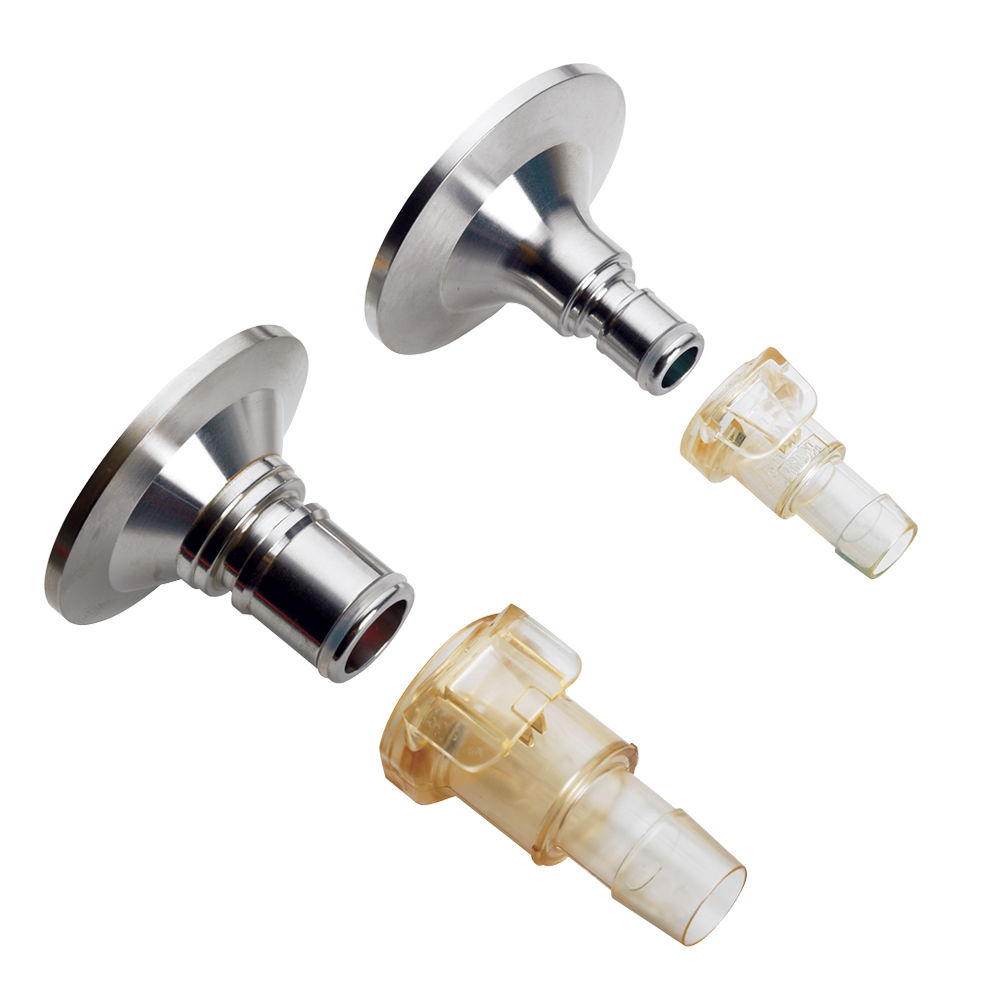

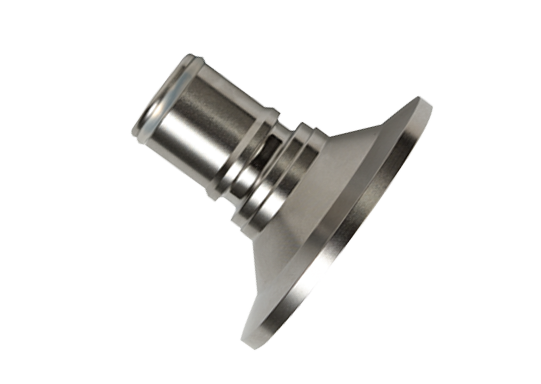

CPC Biotech's SaniQuik™ connection enables integration of single-use components with your existing stainless processing equipment. This sanitary termination attaches to hard-plumbed systems with tri-clover clamps. Once attached it permits quick and easy connection to single-use bag systems, manifolds or tube sets with Colder disposable coupling bodies.

Features & Benefits:

3/4" and 1-1/2" sanitary terminations: Connect to hard plumbed systems with sanitary standard gaskets and tri-clover clamps
Compatible with MPC & MPX Series: Quick and easy connections to industry standard plastic couplings on single-use bag and tube sets
Integral coupling adaptor: Disconnecting coupling reduces sanitary gasket replacement
BSE/TSE free materials: Meets ADCF requirements


OPERATING CONDITIONS (FLUID TRANSFER)
Pressure:	Vacuum to 60 psi, 4.14 bar
Temperature:	-40°F to 300°F (-40°C to 149°C)


STERILIZATION
Sterilization:	Autoclave


Materials
Main Components:	316L
Seals:	Silicone (clear), platinum-cured


CV VALUE
Cv~14.2 (204.60) max
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.

Assets & Downloads

Specifications


OPERATING CONDITIONS (FLUID TRANSFER)
Pressure:	Vacuum to 60 psi, 4.14 bar
Temperature:	-40°F to 300°F (-40°C to 149°C)


STERILIZATION
Sterilization:	Autoclave


Materials
Main Components:	316L
Seals:	Silicone (clear), platinum-cured


CV VALUE
Cv~14.2 (204.60) max
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
