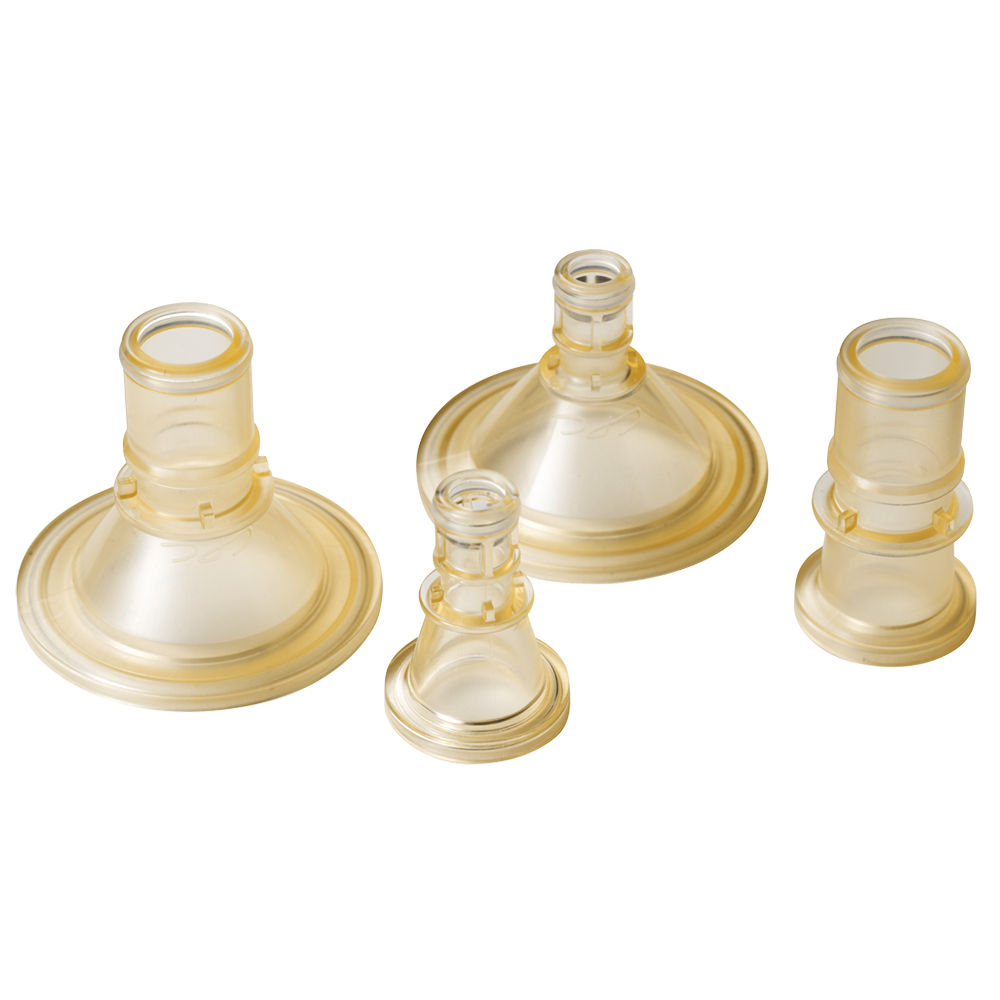

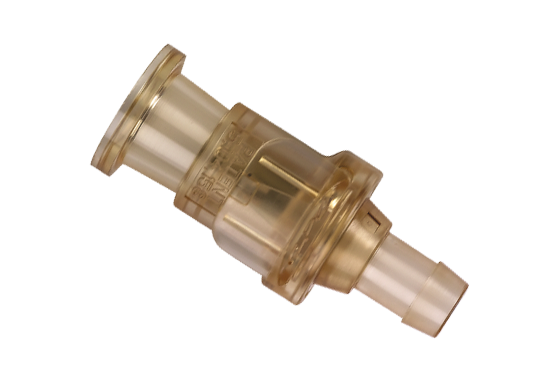

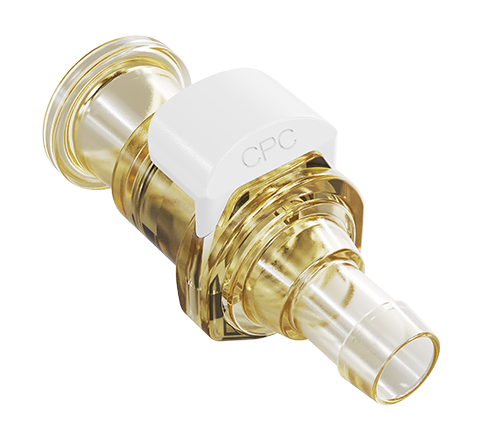

Sanitary Connectors

Sanitary-Spec-sheet-thmb_180x200


OPERATING CONDITIONS (FLUID TRANSFER)
Pressure:	Vacuum to 60 psi, 4.14 bar
Temperature:	-40°F (-40°C) to 300°F (149°C)


STERILIZATION
Autoclave:	At 270°F (132°C) for 60 minutes, up to 25 cycles
Gamma irradiation:	Up to 50 kGy


Materials
Main Components:	Polysulfone (amber tint)
Seals:	Silicone (clear), platinum-cured
Sanitary sizes:	3/4" mini and 1" maxi


CV VALUE
Cv ~ 5.5 (79.25) max with MPC inserts
Cv ~ 14.2 (204.60) max with MPX inserts
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.

Assets & Downloads

Sanitary-Spec-sheet-thmb_180x200

Specifications


OPERATING CONDITIONS (FLUID TRANSFER)
Pressure:	Vacuum to 60 psi, 4.14 bar
Temperature:	-40°F (-40°C) to 300°F (149°C)


STERILIZATION
Autoclave:	At 270°F (132°C) for 60 minutes, up to 25 cycles
Gamma irradiation:	Up to 50 kGy


Materials
Main Components:	Polysulfone (amber tint)
Seals:	Silicone (clear), platinum-cured
Sanitary sizes:	3/4" mini and 1" maxi


CV VALUE
Cv ~ 5.5 (79.25) max with MPC inserts
Cv ~ 14.2 (204.60) max with MPX inserts
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
