MPX Connectors

MPX Series Connectors

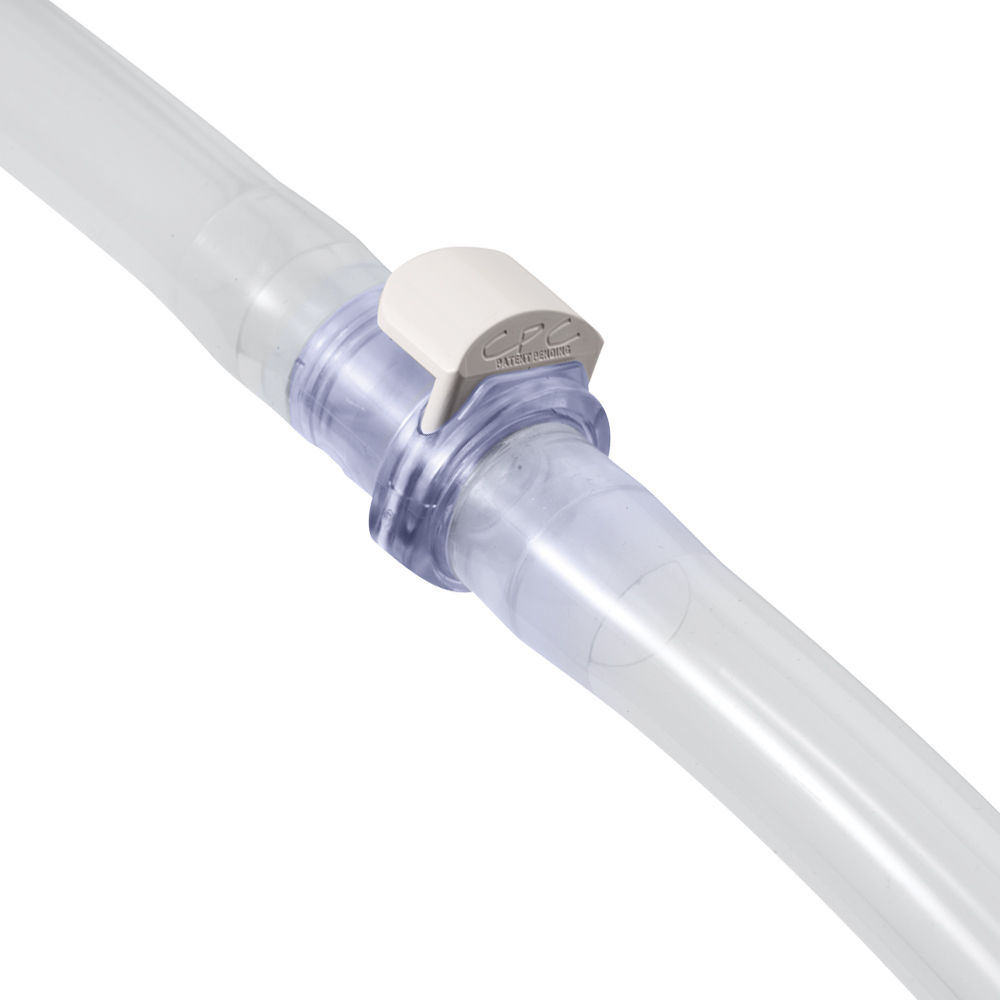

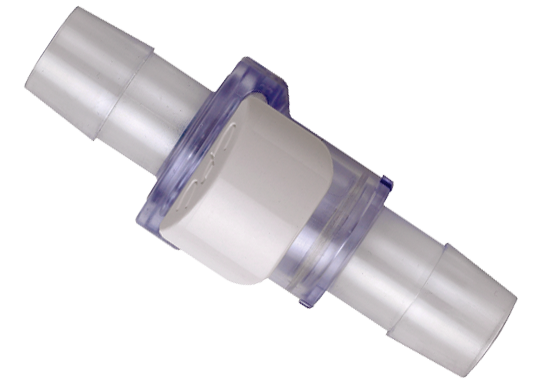

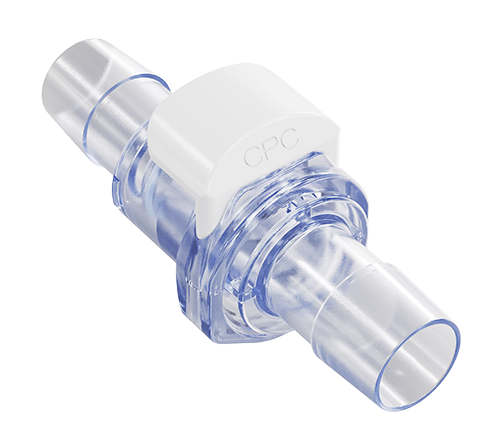

MPX connectors make it easy to quickly connect-disconnect and transfer fluid or media anywhere in your process. Simply push the two halves together to connect and disconnect by pressing the thumb latch to separate. To protect the lines before and between transfers, caps and plugs are available for sealing off disconnected halves and optional locking sleeves are available to prevent accidental disconnects. Coupling halves can be rotated while connected to reduce tube kinks. The MPX offers additional flexibility when changing to a larger tubing size, with the Back-to-Back adapter connecting to the MPC product. Choose from a full line of male and female MPC connectors and configurations, in sizes to fit 1/2", 3/8" and 3/4" tubing. For a quick connection rely on the MPX series connectors.

Features & Benefits:

Ergonomic thumb latch: Easy to operate – even with gloved hands
USP Class VI materials: Meets biocompatibility requirements
Sterilizable by autoclave, Et0, e-beam or gamma: Robust and economical for single-use applications
Parting line-free hose barb: Eliminates potential leak path
BSE/TSE free materials: Meets ADCF requirements

MPX Series Spec Sheet

Assembly Video

MPC & MPX Connections Overview video


Materials
Main Components:	Polycarbonate (purple tint)
Main Components:	Polysulfone (amber tint)
Locking sleeves:	Polysulfone (white)
Thumb latches:	Polycarbonate (white), PVDF (white)
O-rings:	Silicone (clear), platinum-cured

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.


STERILIZATION
Gamma Irradiation:	Up to 50 kGy irradiation.
Autoclave:	Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only.
Autoclave:	Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.


CV VALUE
Cv ~ 14.2 (204.60) max
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).

Assets & Downloads

MPX Series Spec Sheet

Assembly Video

MPC & MPX Connections Overview video

Specifications


Materials
Main Components:	Polycarbonate (purple tint)
Main Components:	Polysulfone (amber tint)
Locking sleeves:	Polysulfone (white)
Thumb latches:	Polycarbonate (white), PVDF (white)
O-rings:	Silicone (clear), platinum-cured

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.


STERILIZATION
Gamma Irradiation:	Up to 50 kGy irradiation.
Autoclave:	Polycarbonate: Up to 250°F (121°C), 30 minutes, up to 10 repetitions. Sterilize uncoupled only.
Autoclave:	Polysulfone: Up to 270°F (132°C) for 60 minutes, up to 25 repetitions. Sterilize uncoupled only.


CV VALUE
Cv ~ 14.2 (204.60) max
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses).
