AseptiQuik® X
Sterile Connectors
AseptiQuik® X
Sterile Connectors
.png.thumb.1280.1280.png)
.png.thumb.1280.1280.png)
.png.thumb.1280.1280.png)
SPEC SHEET
AseptiQuik X Assembly Video

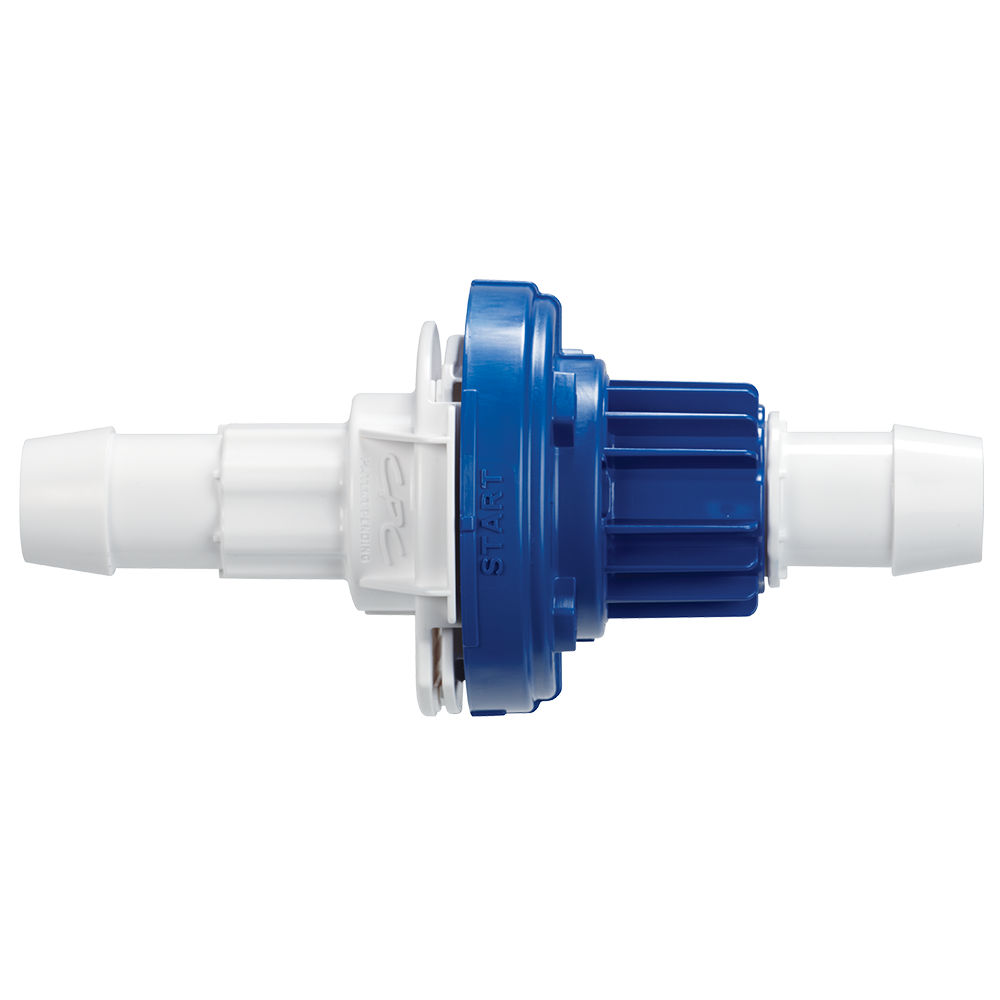

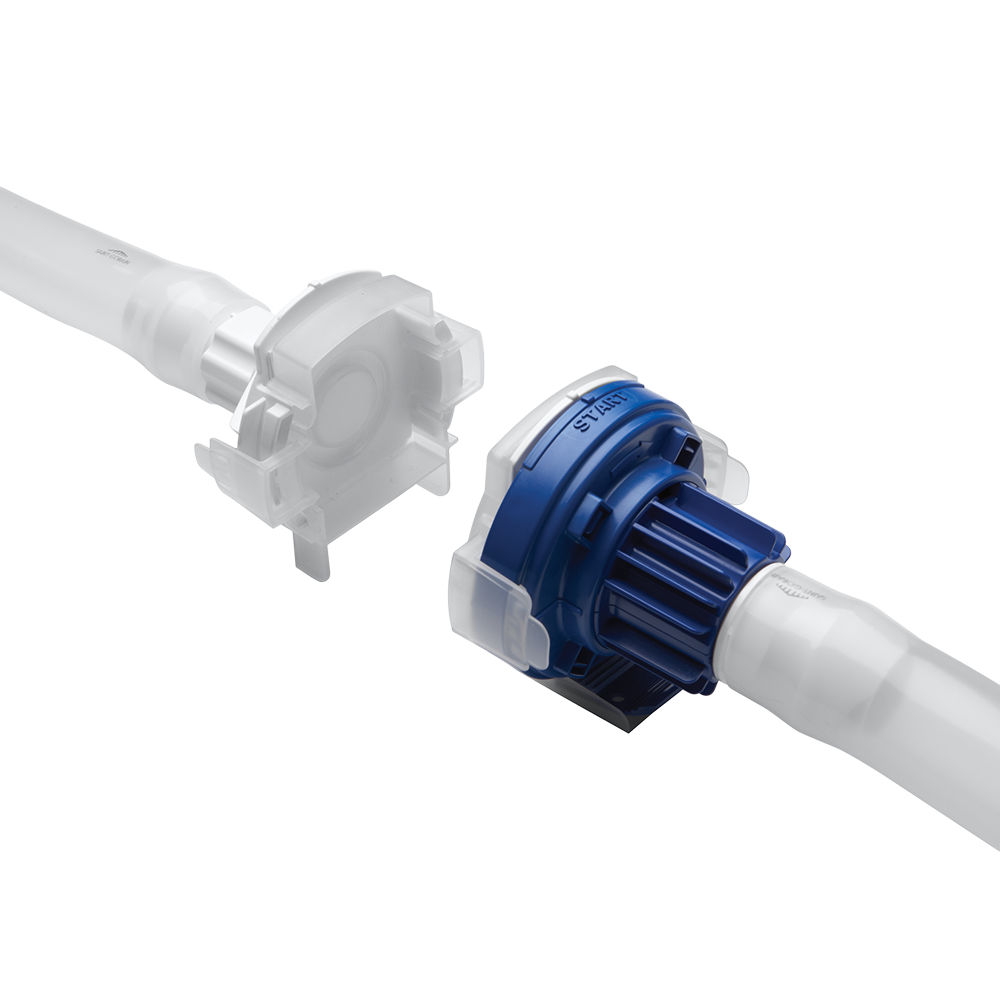

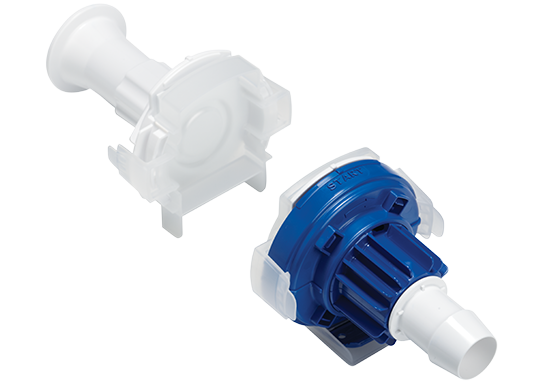

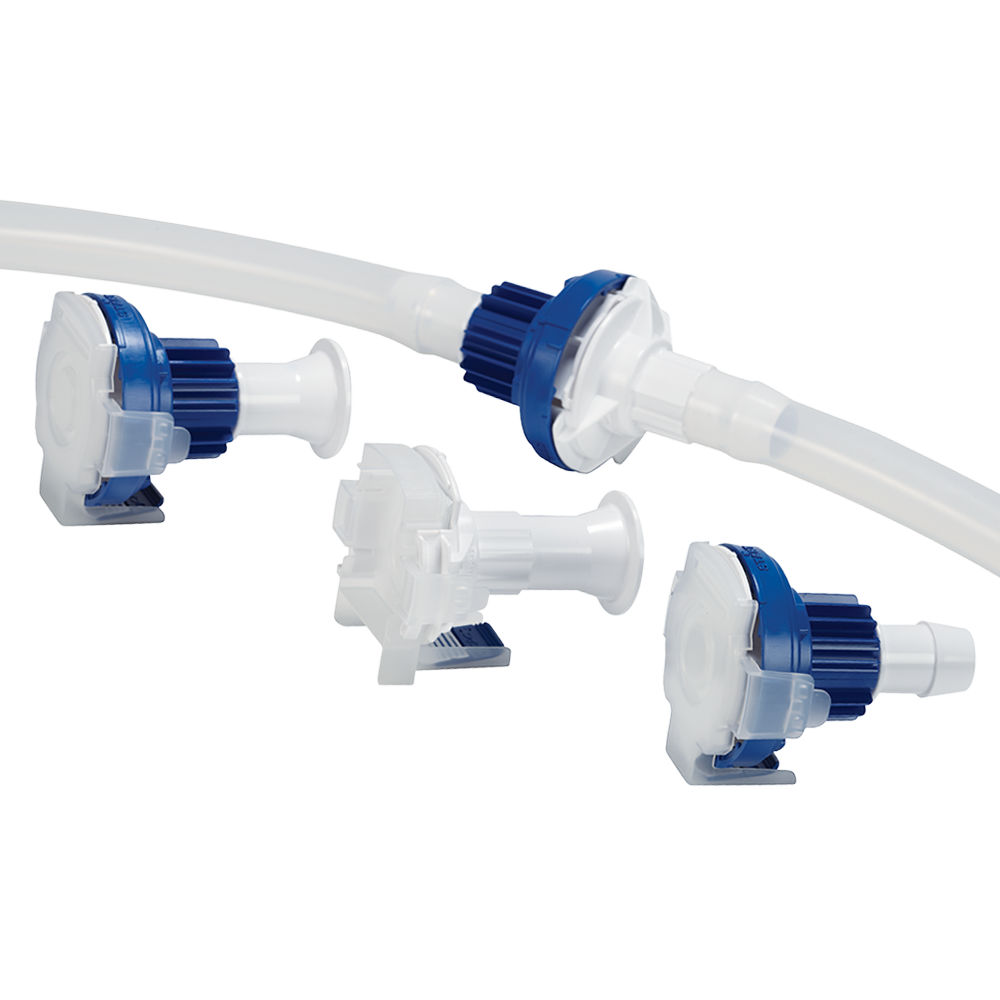

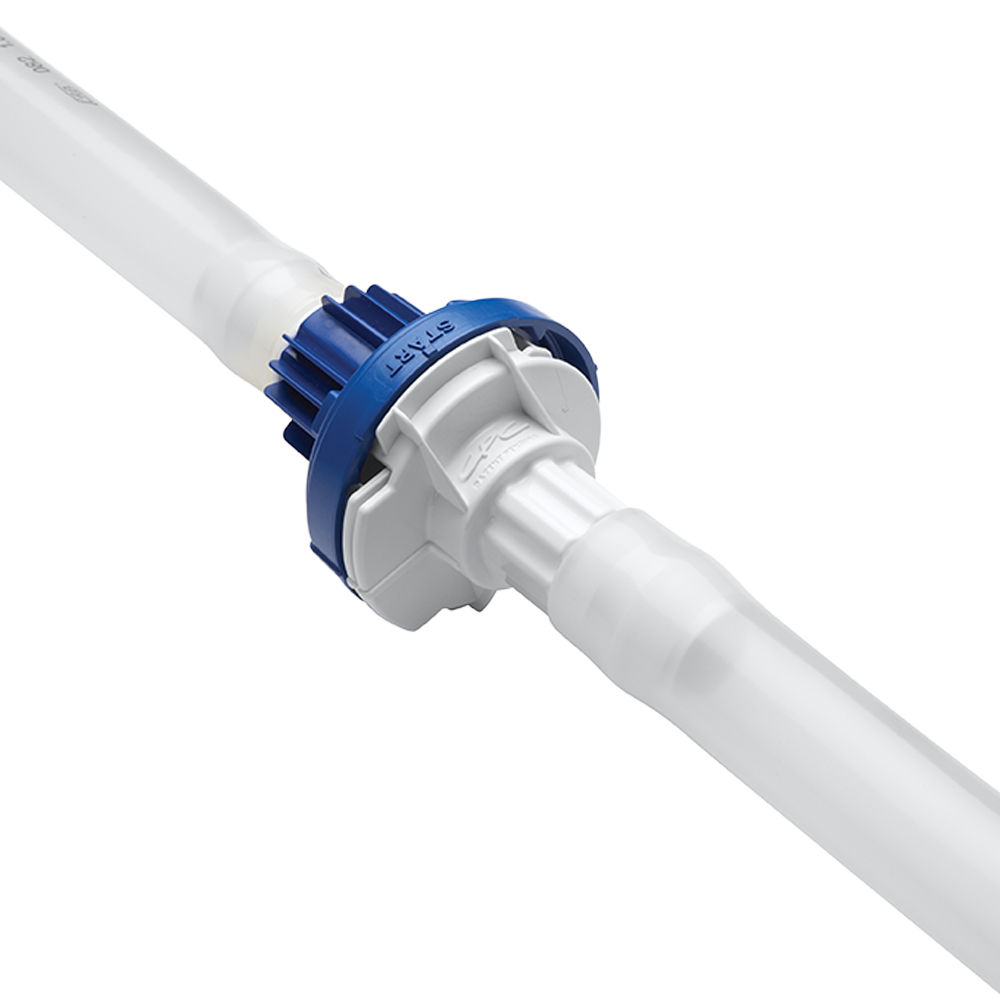

AseptiQuik X large format 1-inch connectors provide quick and easy sterile connections for high flow applications, even in non-sterile environments. AseptiQuik X ease-of-use “TWIST-PULL-TWIST” design enables users to quickly transfer large volumes of media easily with less risk of operator error.
AseptiQuik X Best Practices Video
Check out how the CPC AseptiQuik® X Connector for high-flow applications, even in non-sterile environments, makes reliable 1" sterile connections.
STERILIZATION |
|
|---|---|
|
Gamma: |
Up to 50 kGy irradiation |
|
Autoclave: |
High Temp (HT) Version: Up to 266°F (130°C) for 30 minutes |
OPERATING CONDITIONS (FLUID TRANSFER) |
|
|---|---|
|
Pressure: |
Upto to 60 psi, 4.1 bar |
|
Temperature: |
39°F to 104°F (4°C to 40°C) |
|
Typical Flow Rate: |
Cv~14.4 max |
Cv Value |
|
|---|---|
|
Cv~14.4 max |
|
|
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses). |
MATERIALS |
|
|---|---|
|
Main Components: |
Polycarbonate (white) |
|
Lock Ring: |
Polycarbonate, PVDF (blue) |
|
Polycarbonate (blue, standard version), USP Class VI, ADCF |
|
|
Pull Tabs: |
Polycarbonate (white, HT version), USP Class VI, ADCF |
|
Caps: |
Polypropylene (clear), USP Class VI, ADCF |
|
Seals: |
Silicone (clear), platinum-cured, USP Class VI, ADCF |
|
Polyethylene (standard version), USP Class VI, ADCF |
|
|
Membrane: |
Hydrophobic polyethersulfone (HT version), USP Class VI |
OTHER |
|
|---|---|
|
Termination Size: |
3/4" and 1" ID hose barb (19.0mm and 25.4mm), 1-1/2" |
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
SPEC SHEET
AseptiQuik X Assembly Video
AseptiQuik X large format 1-inch connectors provide quick and easy sterile connections for high flow applications, even in non-sterile environments. AseptiQuik X ease-of-use “TWIST-PULL-TWIST” design enables users to quickly transfer large volumes of media easily with less risk of operator error.
AseptiQuik X Best Practices Video
Check out how the CPC AseptiQuik® X Connector for high-flow applications, even in non-sterile environments, makes reliable 1" sterile connections.
STERILIZATION |
|
|---|---|
|
Gamma: |
Up to 50 kGy irradiation |
|
Autoclave: |
High Temp (HT) Version: Up to 266°F (130°C) for 30 minutes |
OPERATING CONDITIONS (FLUID TRANSFER) |
|
|---|---|
|
Pressure: |
Upto to 60 psi, 4.1 bar |
|
Temperature: |
39°F to 104°F (4°C to 40°C) |
|
Typical Flow Rate: |
Cv~14.4 max |
Cv Value |
|
|---|---|
|
Cv~14.4 max |
|
|
Cv values are based on gpm and psi, and Ipm and bar (shown in parentheses). |
MATERIALS |
|
|---|---|
|
Main Components: |
Polycarbonate (white) |
|
Lock Ring: |
Polycarbonate, PVDF (blue) |
|
Polycarbonate (blue, standard version), USP Class VI, ADCF |
|
|
Pull Tabs: |
Polycarbonate (white, HT version), USP Class VI, ADCF |
|
Caps: |
Polypropylene (clear), USP Class VI, ADCF |
|
Seals: |
Silicone (clear), platinum-cured, USP Class VI, ADCF |
|
Polyethylene (standard version), USP Class VI, ADCF |
|
|
Membrane: |
Hydrophobic polyethersulfone (HT version), USP Class VI |
OTHER |
|
|---|---|
|
Termination Size: |
3/4" and 1" ID hose barb (19.0mm and 25.4mm), 1-1/2" |
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
