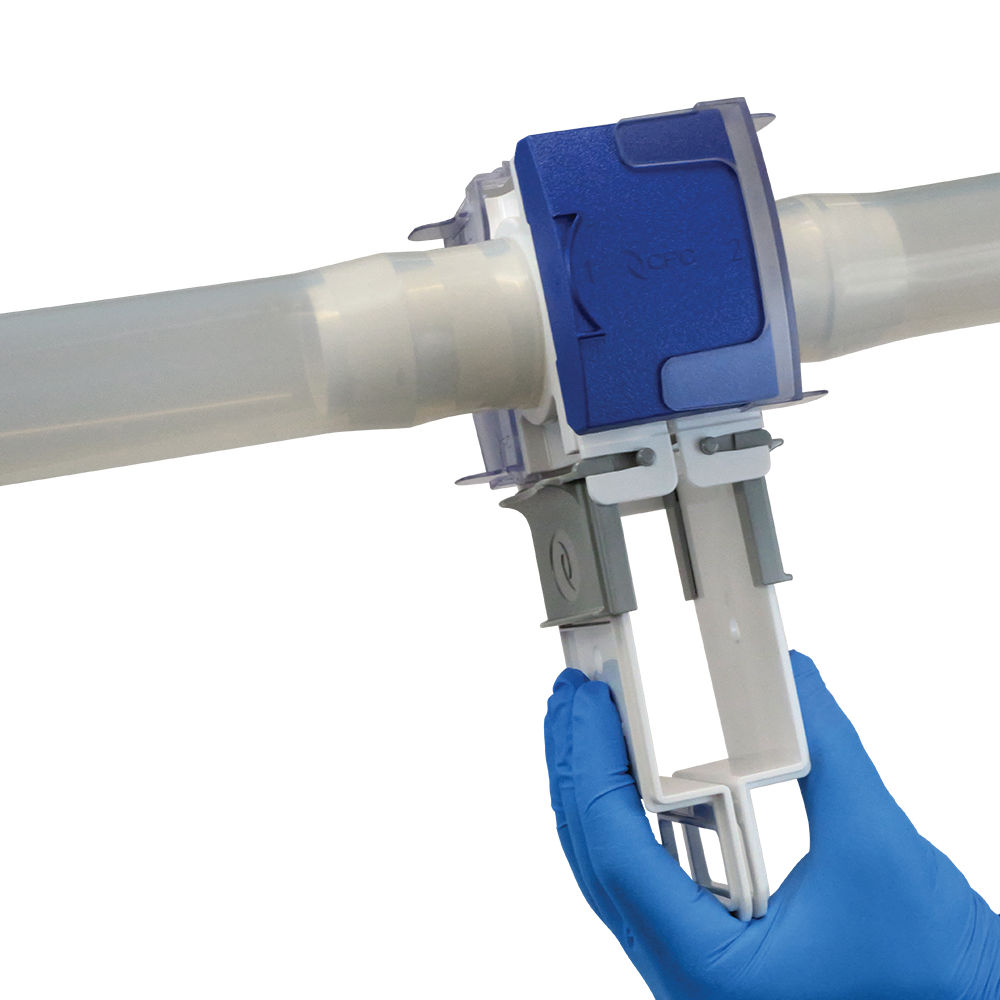

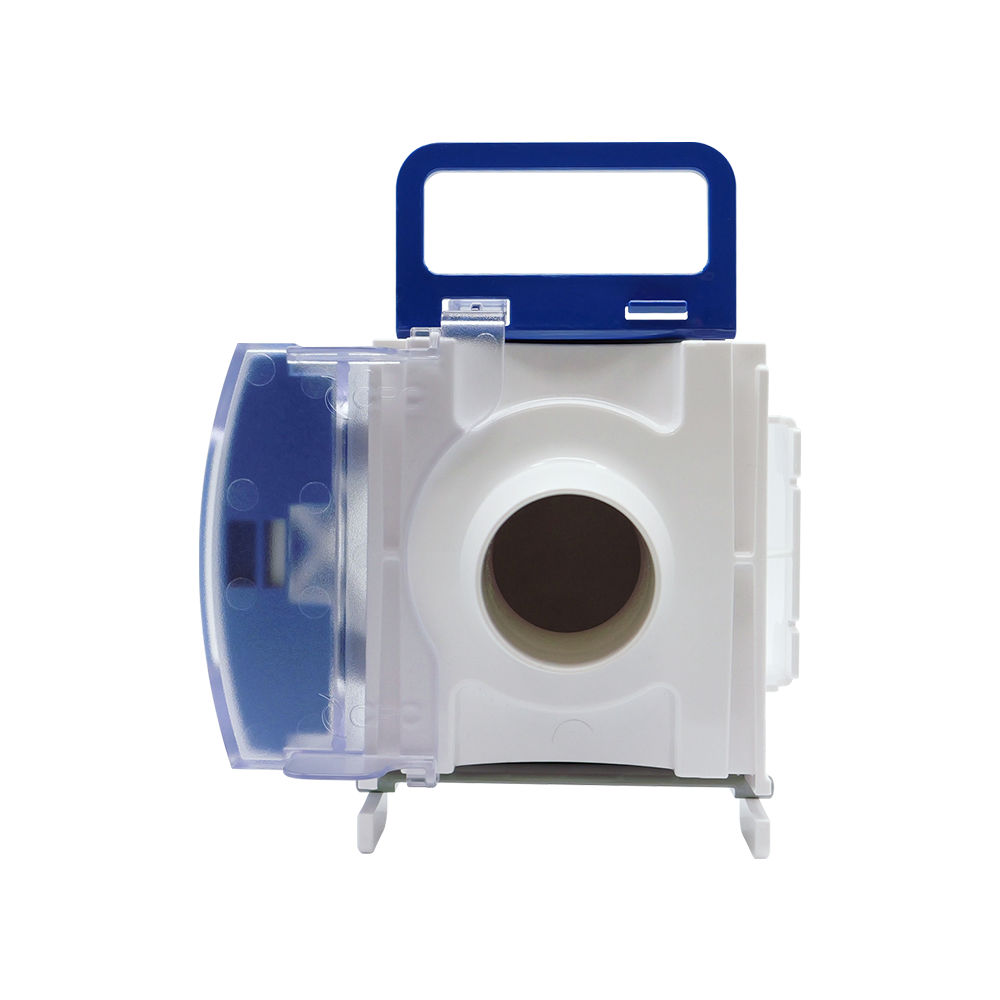

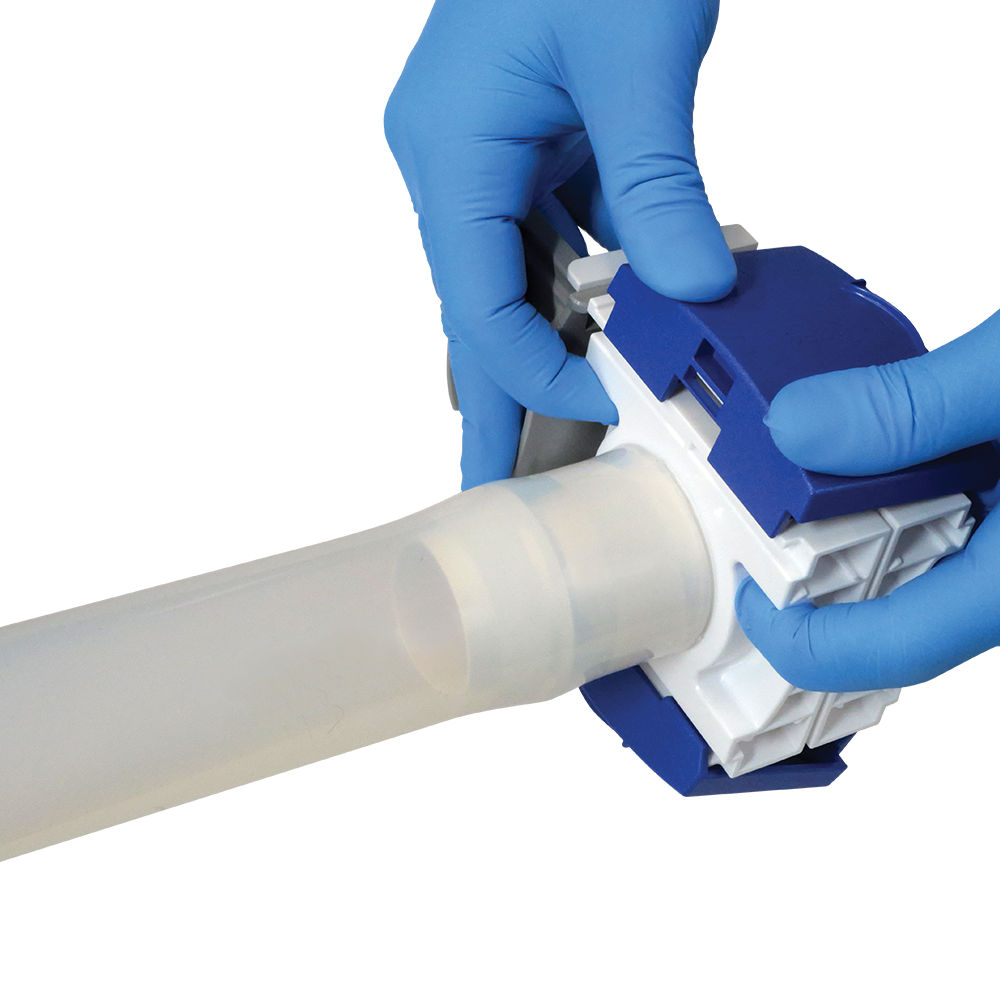

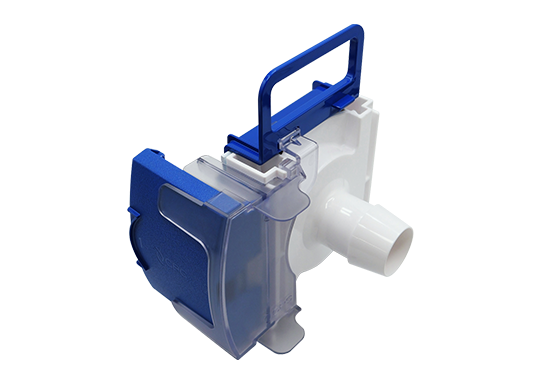

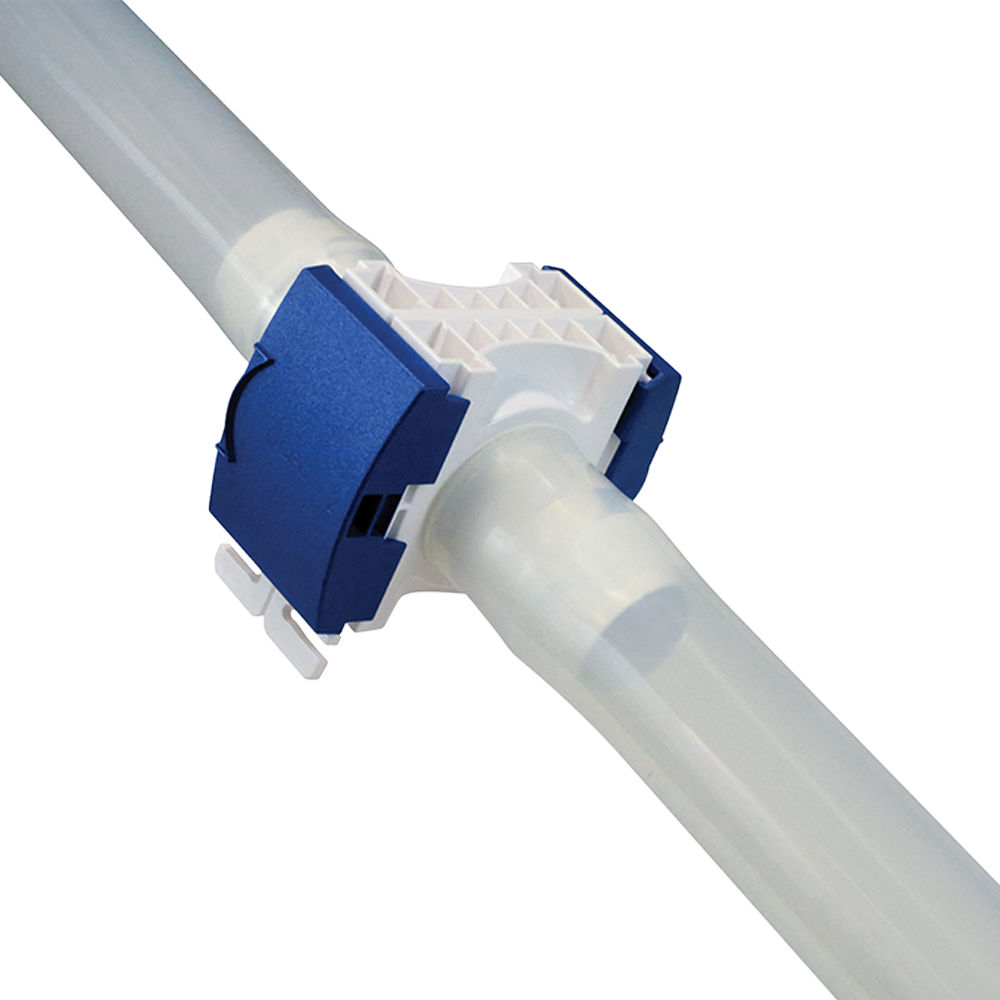

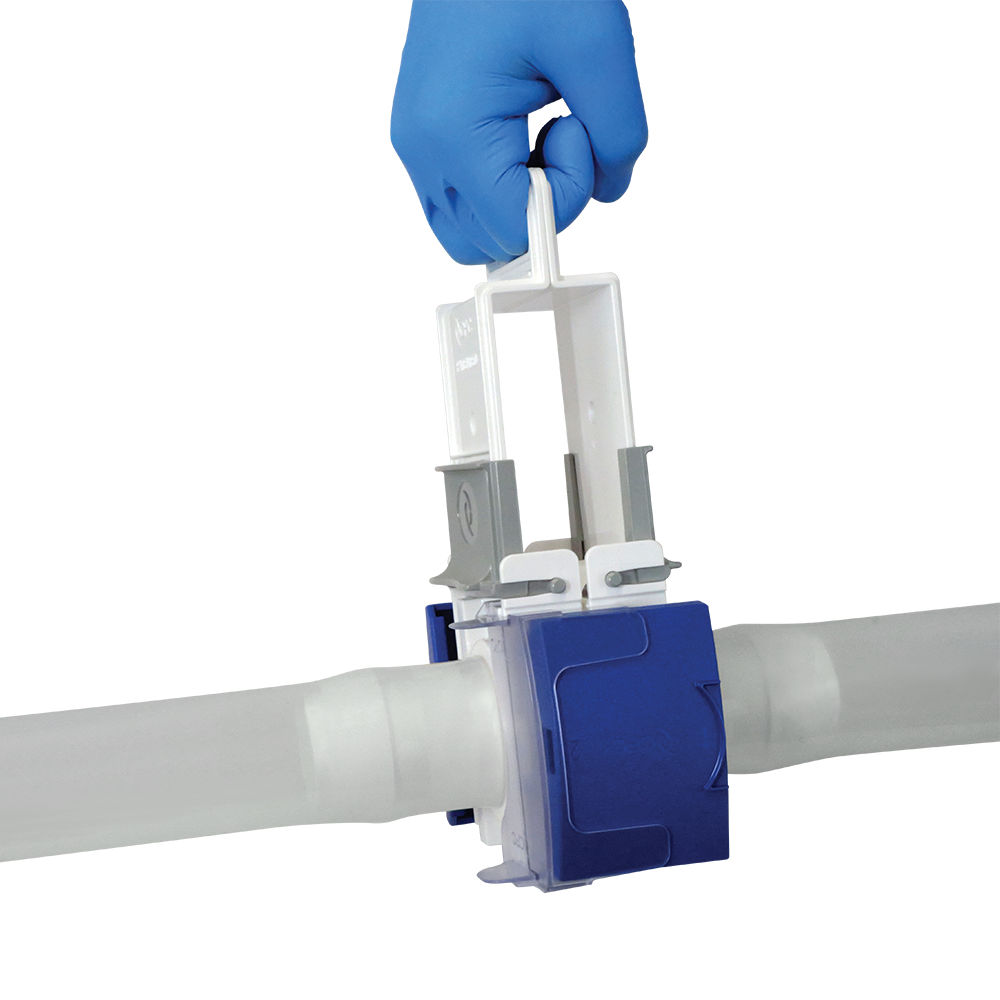

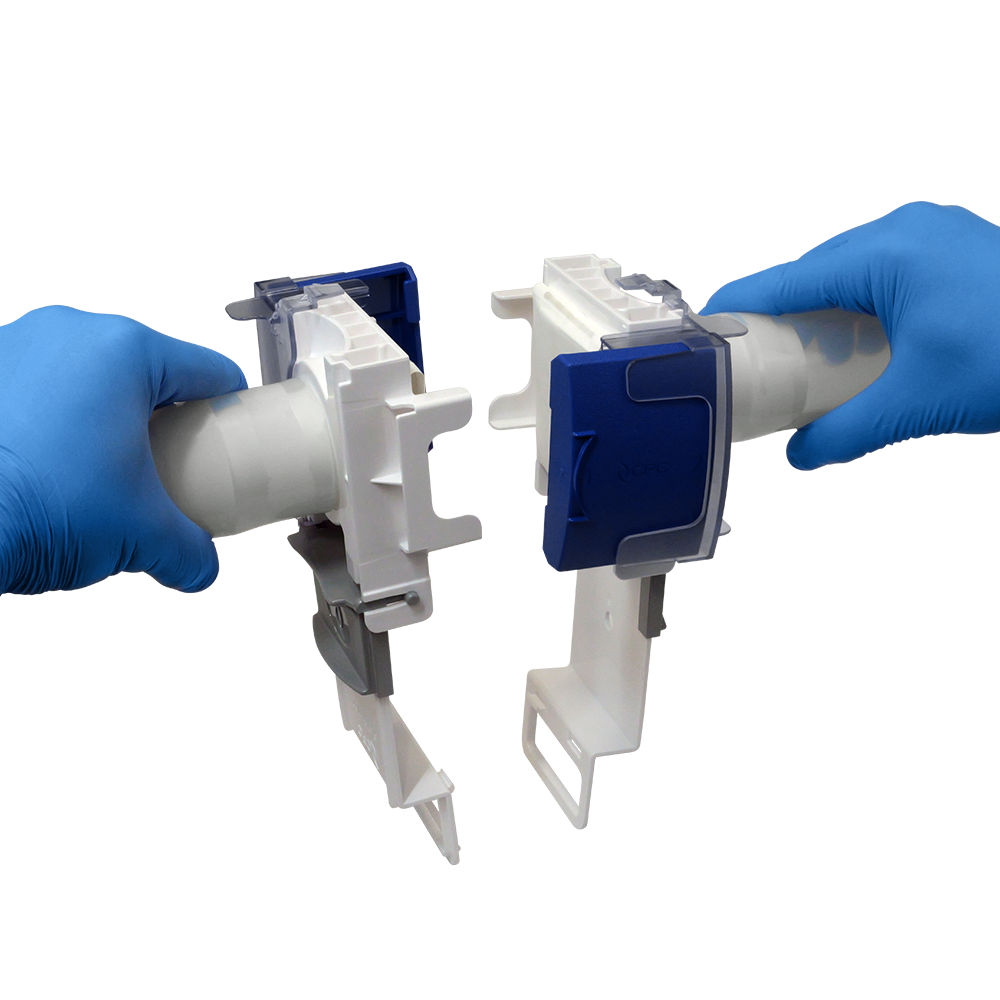

AseptiQuik® W
Sterile Connectors
AseptiQuik® W
Sterile Connectors
.png.thumb.1280.1280.png)
.png.thumb.1280.1280.png)
.png.thumb.1280.1280.png)
.png.thumb.1280.1280.png)
.png.thumb.1280.1280.png)
.png.thumb.1280.1280.png)
SPEC SHEET
OPERATING CONDITIONS (FLUID TRANSFER) |
|
|---|---|
|
Pressure: |
Upto to 60 psi, 4.1 bar |
|
Up to 75 psi, 5.1 bar for 48 hours |
|
|
Temperature: |
34°F to 104°F (1°C to 40°C) |
|
Typical Flow Rate: |
Cv Value Range: 39 to 118 |
|
Termination Size: |
1", 1 1/4", 1 1/2" hose barb, 1 1/2" Sanitary (25.4mm, 31.75 mm, 38.1 mm, 38.1 mm) |
STERILIZATION |
|
|---|---|
|
Gamma: |
Up to 50 kGy irradiation |
|
Autoclave High Temp (HT) Version: |
Up to 266°F (130°C) for 60 minutes |
MATERIALS |
|
|---|---|
|
Connector: |
Polycarbonate (white) |
|
Shipping Clip: |
Polycarbonate (clear) |
|
Pull Tabs/Caps: |
Polycarbonate (white, HT version) |
|
Pull Tab Guide: |
Polyphenylsulfone (gray) |
|
Side Latch: |
Polyphenylsulfone (blue) |
|
Seals: |
Silicone (clear), platinum-cured |
|
Membrane: |
Hydrophobic Polyethersulfone (HT version), PTFE strip sticker |
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
SPEC SHEET
OPERATING CONDITIONS (FLUID TRANSFER) |
|
|---|---|
|
Pressure: |
Upto to 60 psi, 4.1 bar |
|
Up to 75 psi, 5.1 bar for 48 hours |
|
|
Temperature: |
34°F to 104°F (1°C to 40°C) |
|
Typical Flow Rate: |
Cv Value Range: 39 to 118 |
|
Termination Size: |
1", 1 1/4", 1 1/2" hose barb, 1 1/2" Sanitary (25.4mm, 31.75 mm, 38.1 mm, 38.1 mm) |
STERILIZATION |
|
|---|---|
|
Gamma: |
Up to 50 kGy irradiation |
|
Autoclave High Temp (HT) Version: |
Up to 266°F (130°C) for 60 minutes |
MATERIALS |
|
|---|---|
|
Connector: |
Polycarbonate (white) |
|
Shipping Clip: |
Polycarbonate (clear) |
|
Pull Tabs/Caps: |
Polycarbonate (white, HT version) |
|
Pull Tab Guide: |
Polyphenylsulfone (gray) |
|
Side Latch: |
Polyphenylsulfone (blue) |
|
Seals: |
Silicone (clear), platinum-cured |
|
Membrane: |
Hydrophobic Polyethersulfone (HT version), PTFE strip sticker |
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
AseptiQuik® W Products
