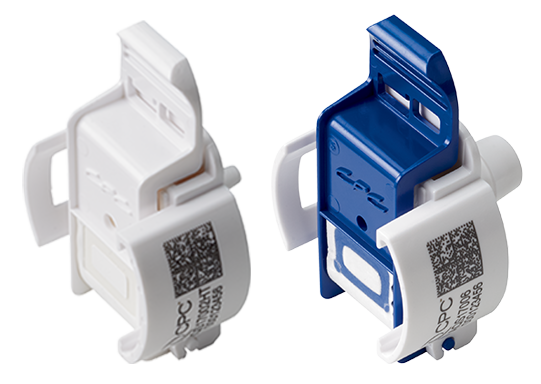

AseptiQuik® S Single-Use Aseptic Sterile Connectors

AseptiQuik® S for Small-format Tubing

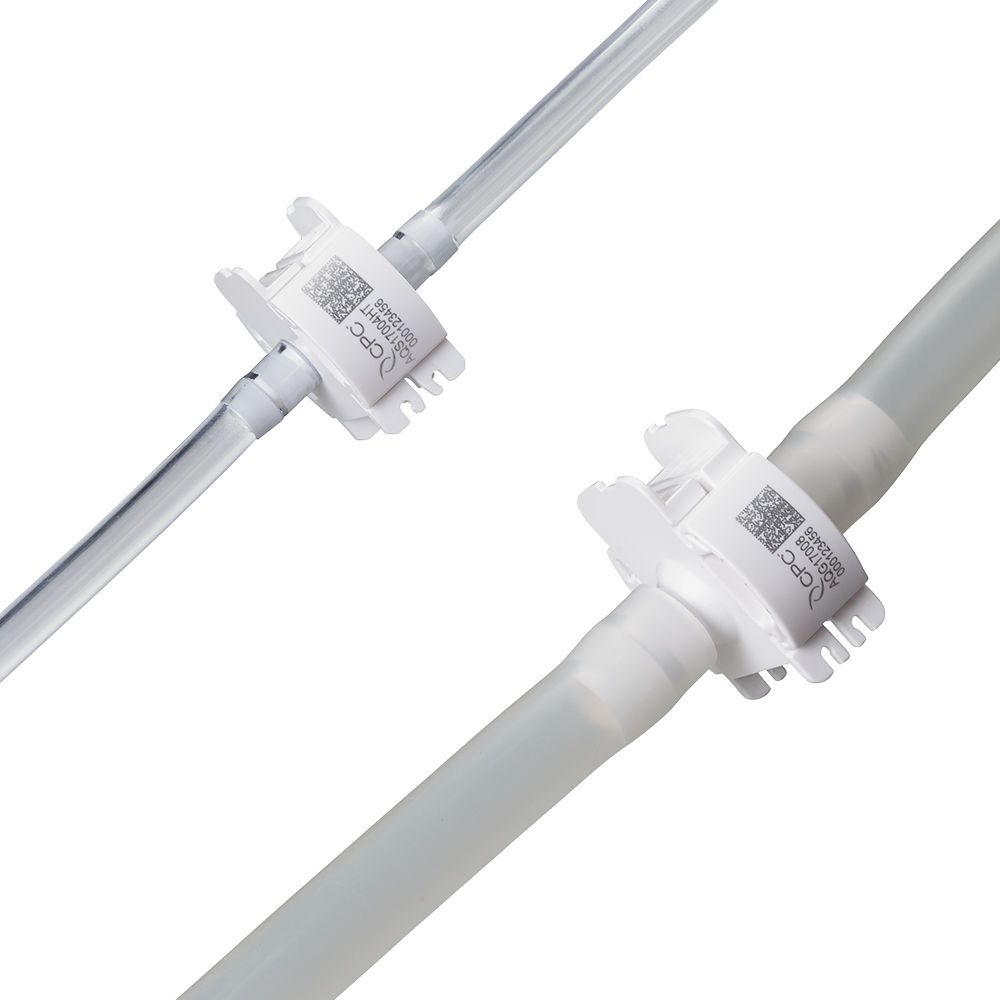

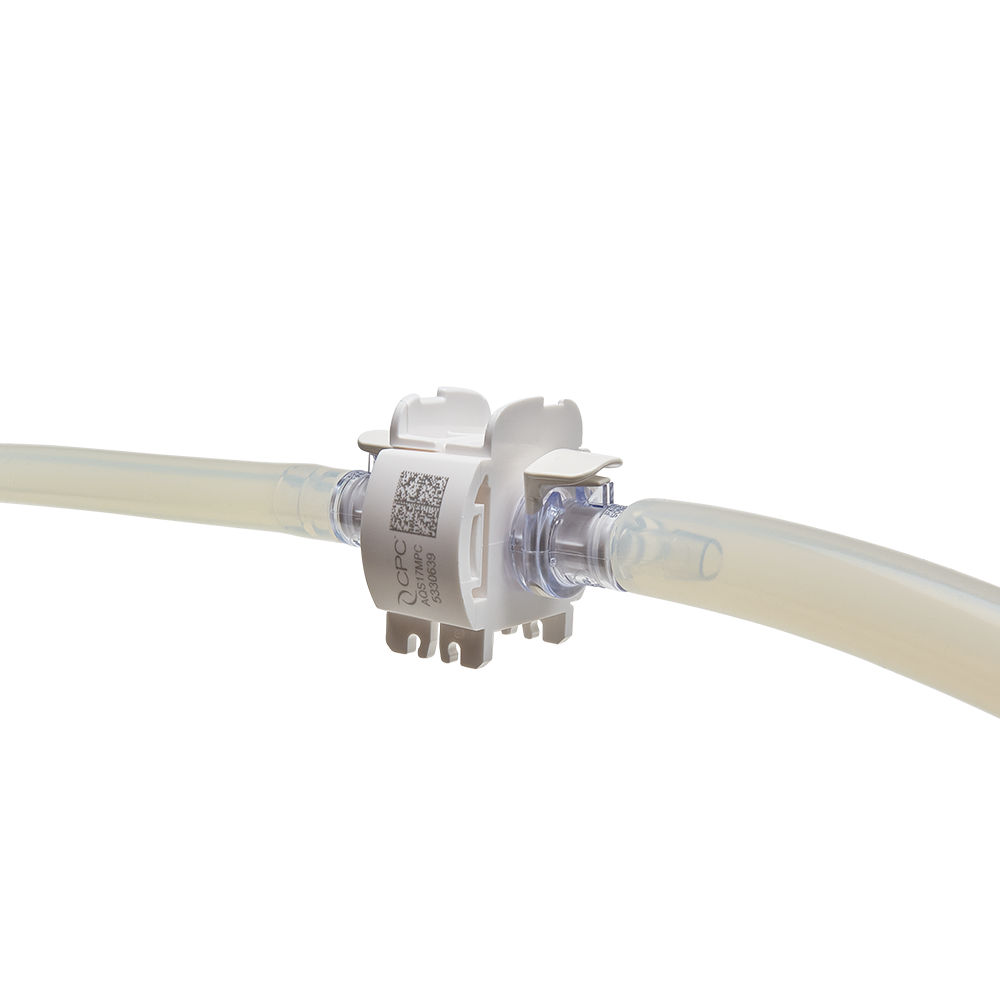

AseptiQuik® S provides sterile connections for small format 1/8", 1/4" and 3/8" hose barb and the 1/4" & 3/4" sanitary terminations. The AseptiQuik S provides quick and easy sterile connections for small-flow applications, even in non-sterile environments. The “FLIP-CLICK-PULL” design of AseptiQuik S enables users to quickly transfer small volumes of media easily with less risk of operator error. The connector's genderless and robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can now make 1/8", 1/4" and 3/8" sterile connections with the quality and market availability they expect from the leader in single-use connection technology.

Features & Benefits

Genderless Design: Ease single-use systems specifications with one part number for both halves

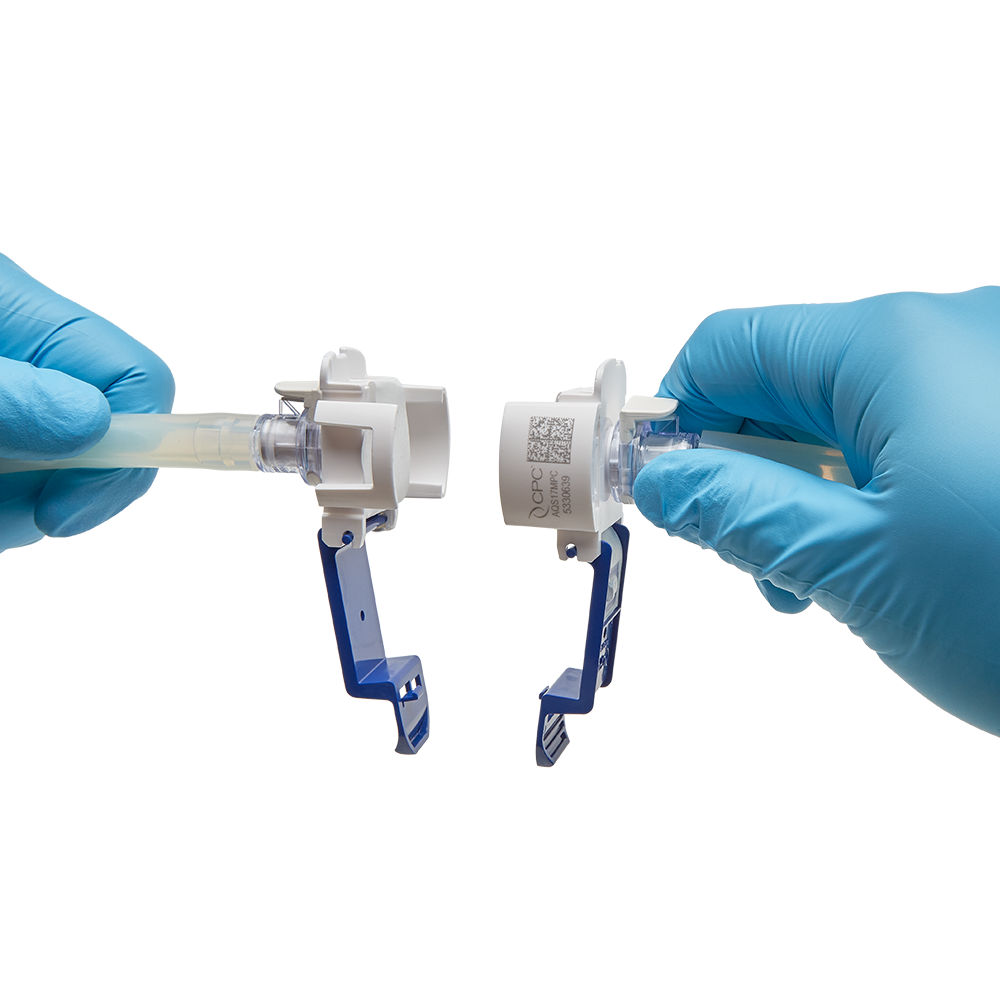

FLIP-CLICK-PULL: Intuitive three-step connection process reduces risk of operator error

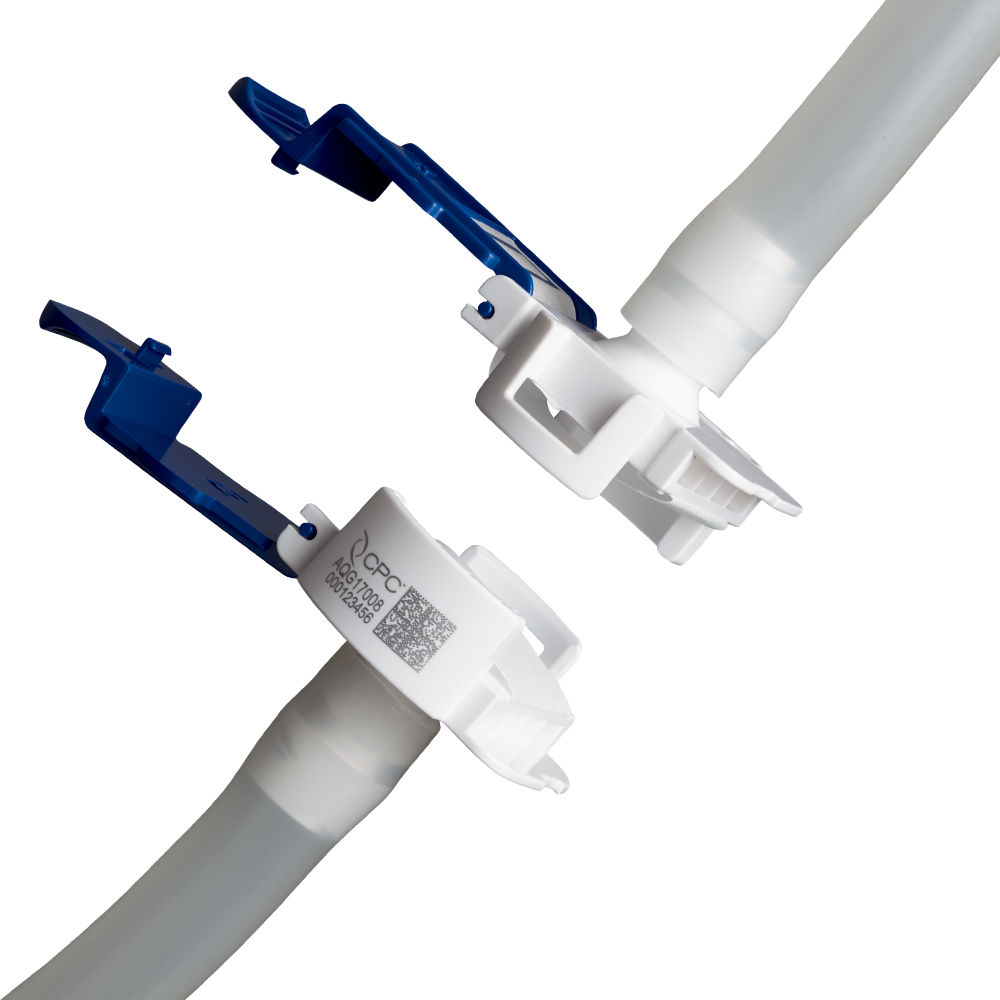

Integrated Pull Tab Covers: Pull tabs act as protective cover reducing part complexity and ensure simultaneous removal of both membranes
Robust Construction: Repeatable and reliable performance with no additional hardware required
1/4" Sanitary termination with straight bore: Minimizes transitional flow disruptions through upstream processing

Spec Sheet

AseptiQuik® S Assembly Video

In this video, users can find the simple CPC three-step process of “FLIP-CLICK-PULL.” The small format 1/8" and 1/4" sterile connectors provide quick and easy sterile connections for small-flow applications, even in non-sterile environments. The AseptiQuik S design enables users to quickly transfer small volumes of media easily with less risk of operator error.

AseptiQuik® S Best Practices Video

In this video, users will find best practices for using the small format sterile connectors. The connector’s genderless and robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can now make 1/8" and 1/4" sterile connections with the quality and market availability they expect from the leader in single-use connection technology.


OPERATING CONDITIONS (FLUID TRANSFER)
Temperature:	39°F to 104°F (4°C to 40°C)
Pressure:	Up to 60 psi, 4.1 bar
Typical Flow Rate:	Cv 1.74 for ¼” to ¼” and .19 for 1/8” to 1/8”


STERILIZATION
Gamma:	Up to 50 kGy irradiation
Autoclave:	High Temp (HT) Version: Up to 266°F (130°C) for 60 minutes


MATERIALS
Main Components:	Polycarbonate (white)
Pull Tabs/Covers:	Polycarbonate (blue, standard version)
Pull Tabs/Covers:	Polycarbonate (white, HT version)
Seals:	Silicone (clear), platinum-cured
Membrane:	Polyethylene (standard version)
Membrane:	Hydrophobic polyethersulfone (HT version)


CV VALUE
Cv 1.74 for ¼” to ¼”
Cv .19 for 1/8” to 1/8”
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.

Assets & Downloads

Spec Sheet

AseptiQuik® S Assembly Video

In this video, users can find the simple CPC three-step process of “FLIP-CLICK-PULL.” The small format 1/8" and 1/4" sterile connectors provide quick and easy sterile connections for small-flow applications, even in non-sterile environments. The AseptiQuik S design enables users to quickly transfer small volumes of media easily with less risk of operator error.

AseptiQuik® S Best Practices Video

In this video, users will find best practices for using the small format sterile connectors. The connector’s genderless and robust design provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers can now make 1/8" and 1/4" sterile connections with the quality and market availability they expect from the leader in single-use connection technology.

Specifications


OPERATING CONDITIONS (FLUID TRANSFER)
Temperature:	39°F to 104°F (4°C to 40°C)
Pressure:	Up to 60 psi, 4.1 bar
Typical Flow Rate:	Cv 1.74 for ¼” to ¼” and .19 for 1/8” to 1/8”


STERILIZATION
Gamma:	Up to 50 kGy irradiation
Autoclave:	High Temp (HT) Version: Up to 266°F (130°C) for 60 minutes


MATERIALS
Main Components:	Polycarbonate (white)
Pull Tabs/Covers:	Polycarbonate (blue, standard version)
Pull Tabs/Covers:	Polycarbonate (white, HT version)
Seals:	Silicone (clear), platinum-cured
Membrane:	Polyethylene (standard version)
Membrane:	Hydrophobic polyethersulfone (HT version)


CV VALUE
Cv 1.74 for ¼” to ¼”
Cv .19 for 1/8” to 1/8”
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.

Validation Guides

Extractables Report
