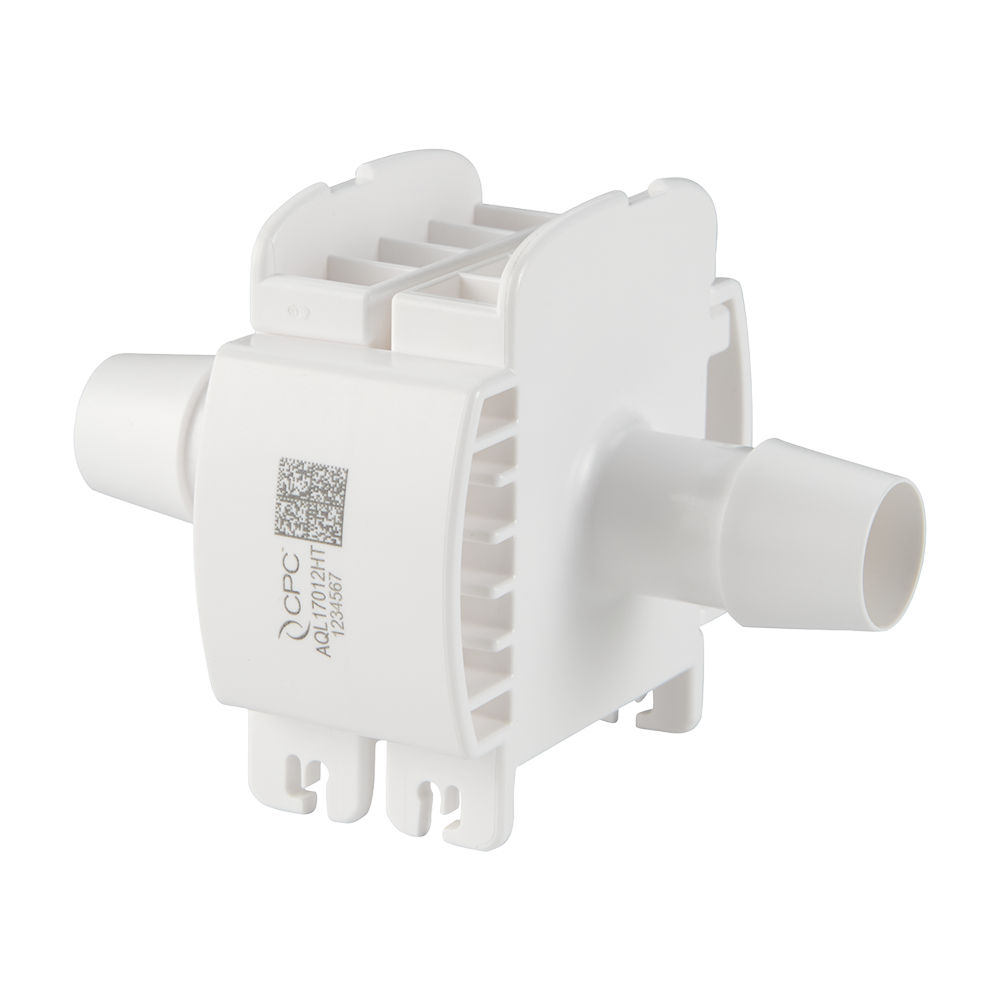

AseptiQuik® L Single-Use Aseptic Sterile Connectors

AseptiQuik® L Large Format Genderless Connectors

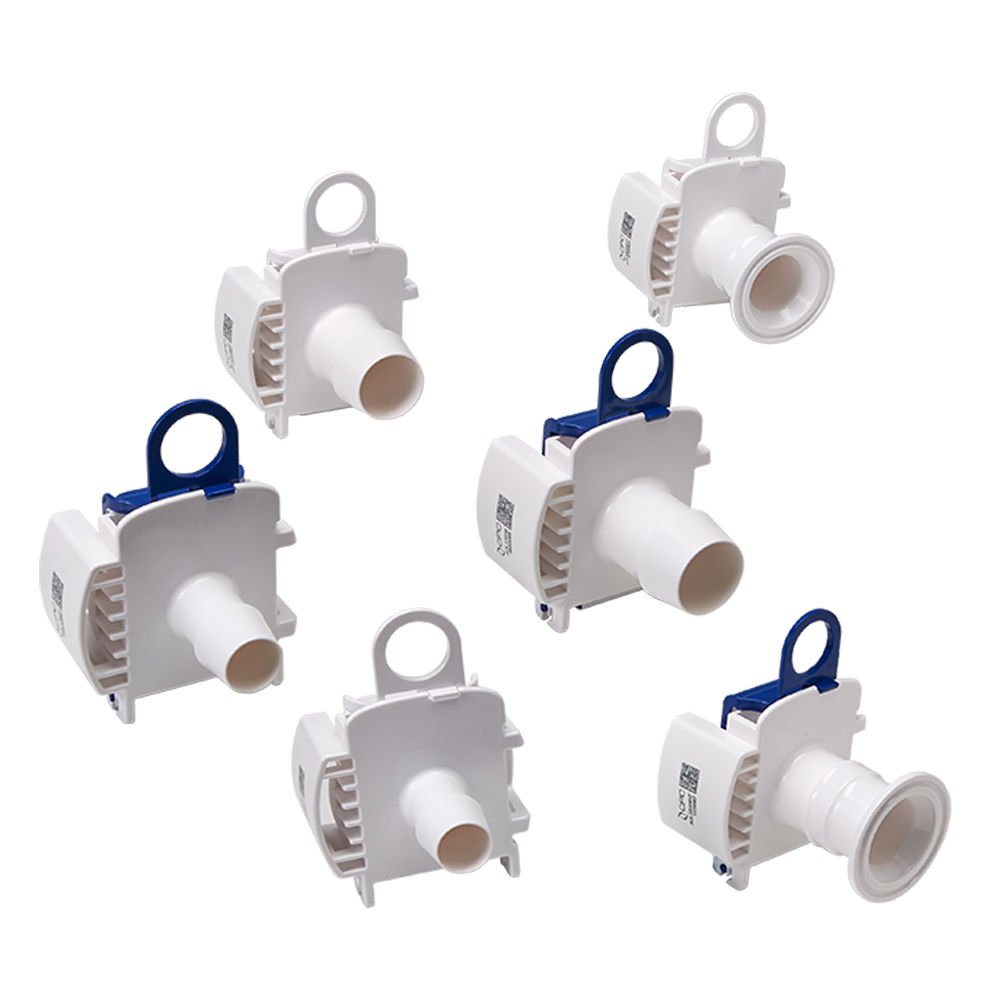

The AseptiQuik L connectors enable quick and easy sterile connections in large-volume, high-flow production environments. Available in 3/4", 1" and 1-1/2" hose barb sizes, the AseptiQuik L featues an easy-to-use 3-step design that simplifies system integration and minimizes the risk of operator error. The connectors' robust construction provides reliable performance without the need for clamps, fixtures or tube welders. Biopharmaceutical manufacturers benefit from the interchangeable connection sanitary flow solutions for full-scale bioprocessing production environments with the quality and market availability they expect from the leader in single-use connection technology. Biopharmaceutical manufacturers benefit from a full range of interchangeable 3/4" to 1½" flow solutions for production environments with the quality and market availability they expect from the leader in single-use connection technology.

Features & Benefits

Genderless design: Eases integration of single-use systems with one part number for both halves
Robust construction: Repeatable and reliable performance with no additional hardware required

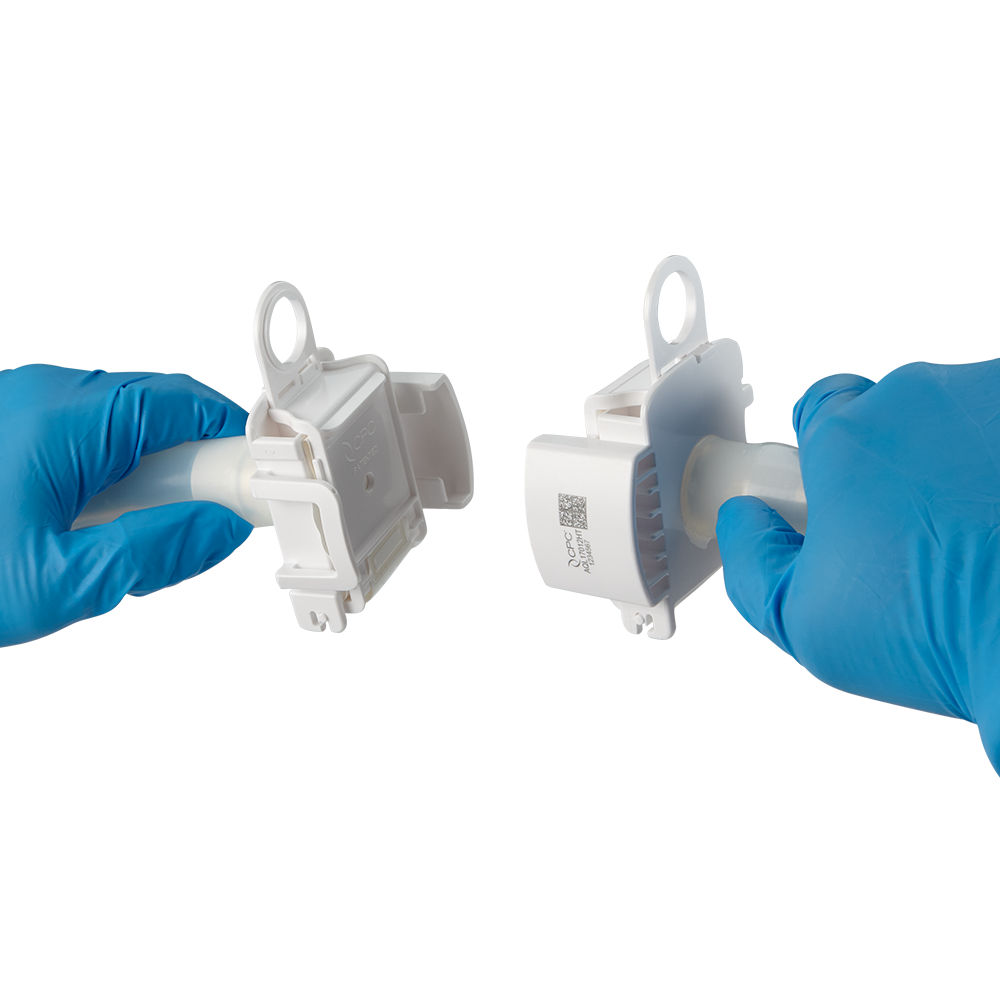

FLIP-CLICK-PULL: Intuitive three-step connection process reduces risk of operator error

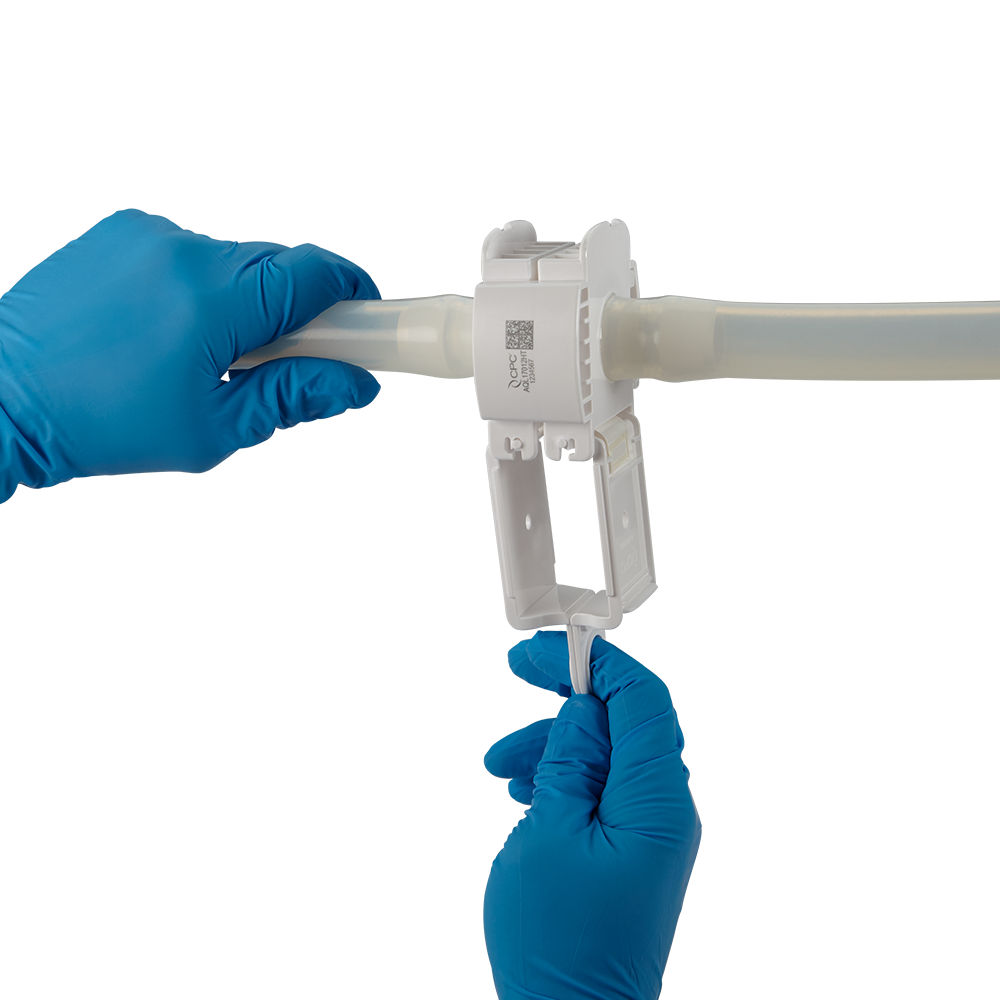

Integrated pull tab covers: Pull tabs act as protective cover reducing covers part complexity and ensure simultaneous removal of both membranes

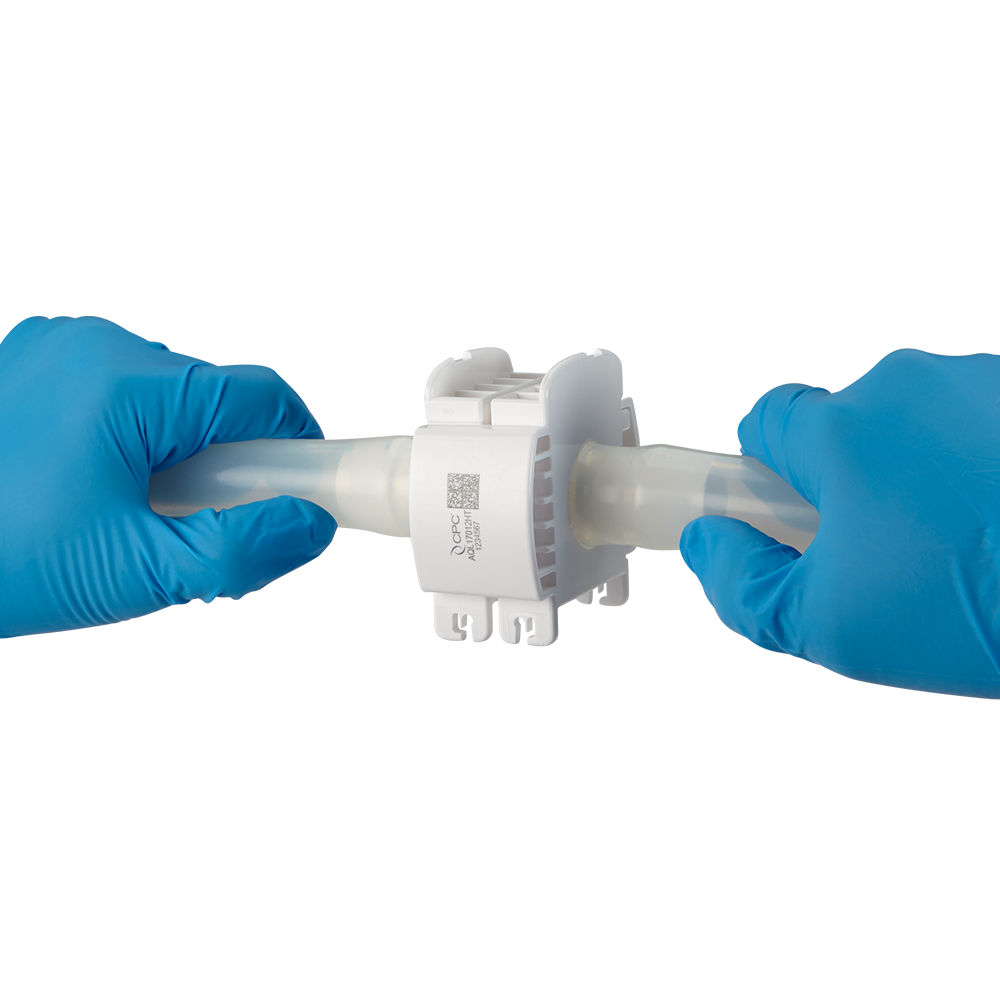

CPC Click: Audible confirmation of assembly
Chemical Compatibility: AseptiQuik PPSU enables genderless connection for a greater range of chemical applications.
pH range: AseptiQuik PPSU: Versatile connections across downstream processes with a pH range from 2 to 12

Spec Sheets

AseptiQuik L Videos

CPC AseptiQuik L Assembly Video

In this video, users can find the simple CPC three-step process of “FLIP-CLICK-PULL.” The connector’s robust construction provides reliable performance without the need for clamps, fixtures or tube welders. See why biopharmaceutical manufacturers use CPC AseptiQuik Connectors when they need reliable and performance in development and production operation.

CPC AseptiQuik L Best Practices Video

In this video, users can find best practices for the AseptiQuik L connectors that provide quick and easy sterile connections in large-volume, high-flow production environments. The large format, 3/4” and 1”genderless connections simplify system integration and minimize the risk of operator error.


OPERATING CONDITIONS (FLUID TRANSFER)
Pressure:	60 psi, 4.1 bar
Pressure:	75 psi, 5.1 bar for 48 hours
Temperature:	34°F to 104°F (1°C to 40°C)


STERILIZATION
Gamma:	Up to 50kGy irradiation
AutoClave:	One Cycle up to 130C for 60 minutes


CV VALUE
Cv~30-57
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.

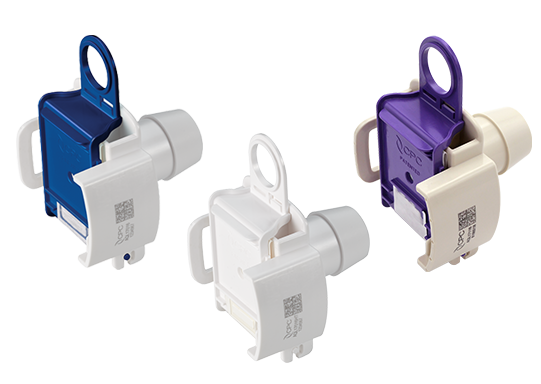

MATERIALS
Main Components:	Polycarbonate (white)
Main Components:	Polyphenylsulfone (cream, PPSU version)
Pull Tabs/Caps:	Polycarbonate (blue, standard version)
	Polycarbonate (white, HT version)
	Polycarbonate (purple, PPSU version)
Seals:	Silicone (clear), platinum-cured
Membrane:	Polyethylene (standard version, PPSU version)
Membrane:	Hydrophobic polyethersulfone (HT version), PTFE strip sticker
Compliance:	RoHS


OTHER
Color:	Molded white
Termination Size:	One Cycle up to 130C for 60 minutes

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.

Assets & Downloads

Spec Sheets

AseptiQuik L Videos

CPC AseptiQuik L Assembly Video

In this video, users can find the simple CPC three-step process of “FLIP-CLICK-PULL.” The connector’s robust construction provides reliable performance without the need for clamps, fixtures or tube welders. See why biopharmaceutical manufacturers use CPC AseptiQuik Connectors when they need reliable and performance in development and production operation.

CPC AseptiQuik L Best Practices Video

In this video, users can find best practices for the AseptiQuik L connectors that provide quick and easy sterile connections in large-volume, high-flow production environments. The large format, 3/4” and 1”genderless connections simplify system integration and minimize the risk of operator error.

Specifications


OPERATING CONDITIONS (FLUID TRANSFER)
Pressure:	60 psi, 4.1 bar
Pressure:	75 psi, 5.1 bar for 48 hours
Temperature:	34°F to 104°F (1°C to 40°C)


STERILIZATION
Gamma:	Up to 50kGy irradiation
AutoClave:	One Cycle up to 130C for 60 minutes


CV VALUE
Cv~30-57
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.


MATERIALS
Main Components:	Polycarbonate (white)
Main Components:	Polyphenylsulfone (cream, PPSU version)
Pull Tabs/Caps:	Polycarbonate (blue, standard version)
	Polycarbonate (white, HT version)
	Polycarbonate (purple, PPSU version)
Seals:	Silicone (clear), platinum-cured
Membrane:	Polyethylene (standard version, PPSU version)
Membrane:	Hydrophobic polyethersulfone (HT version), PTFE strip sticker
Compliance:	RoHS


OTHER
Color:	Molded white
Termination Size:	One Cycle up to 130C for 60 minutes

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.

Validation Guides

Extractables Report
