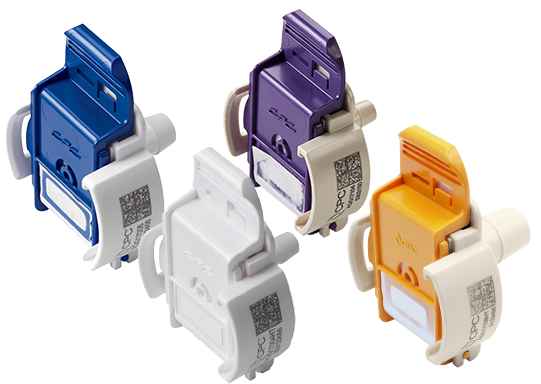

AseptiQuik® G Single-Use Aseptic Sterile Connectors

The Most Widely Used Sterile Connector in Bioprocessing

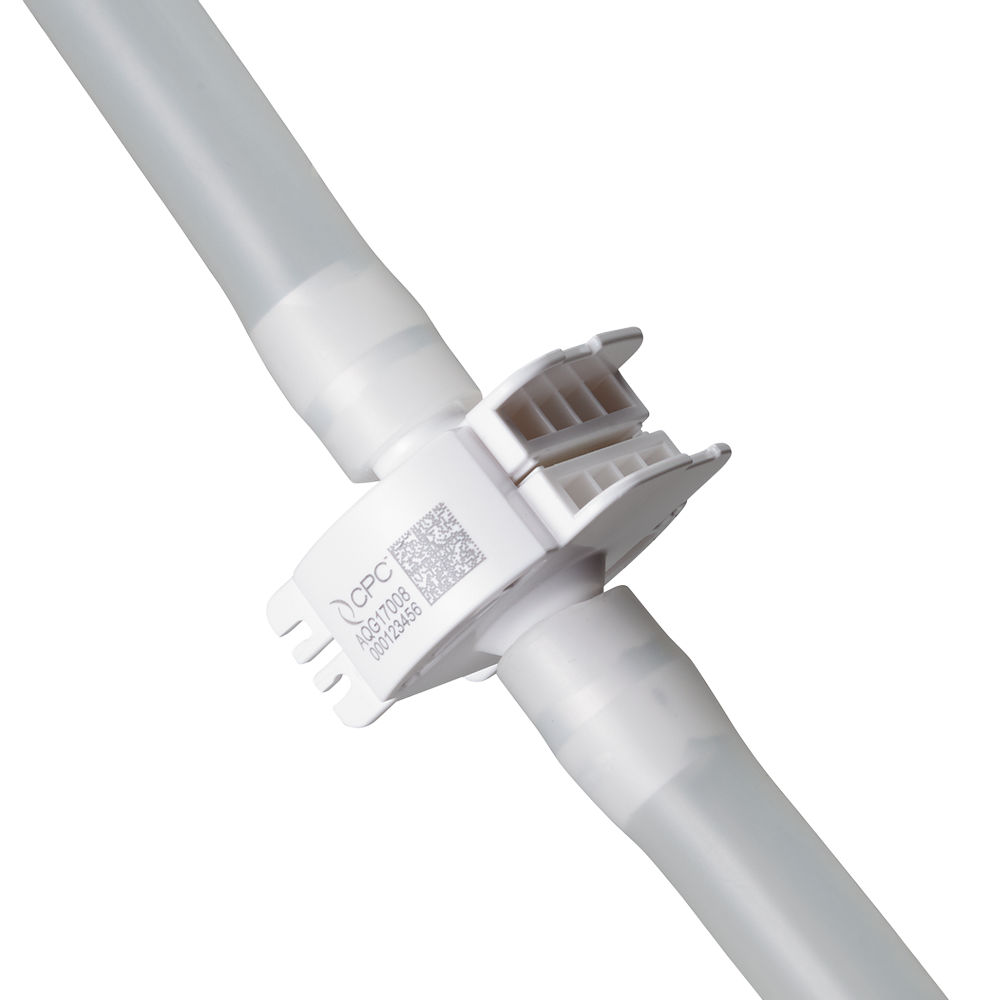

AseptiQuik® G Sterile Connectors provide quick and easy sterile connections, even in non-sterile environments—a critical capability for biopharmaceutical manufacturers. Featuring an easy to use three step design and a wide range of options—including 1/8- to 1 1/2 -inch sizes and genderless connections—the AseptiQuik family allows you to transfer media easily with less risk of error. Their robust, reliable performance eliminates the need for clamps, fixtures or tube welders, giving you sterile, high quality single-use connections every time.

Features & Benefits

Genderless Design: Eases integration of single-use systems with universal mating between G connectors

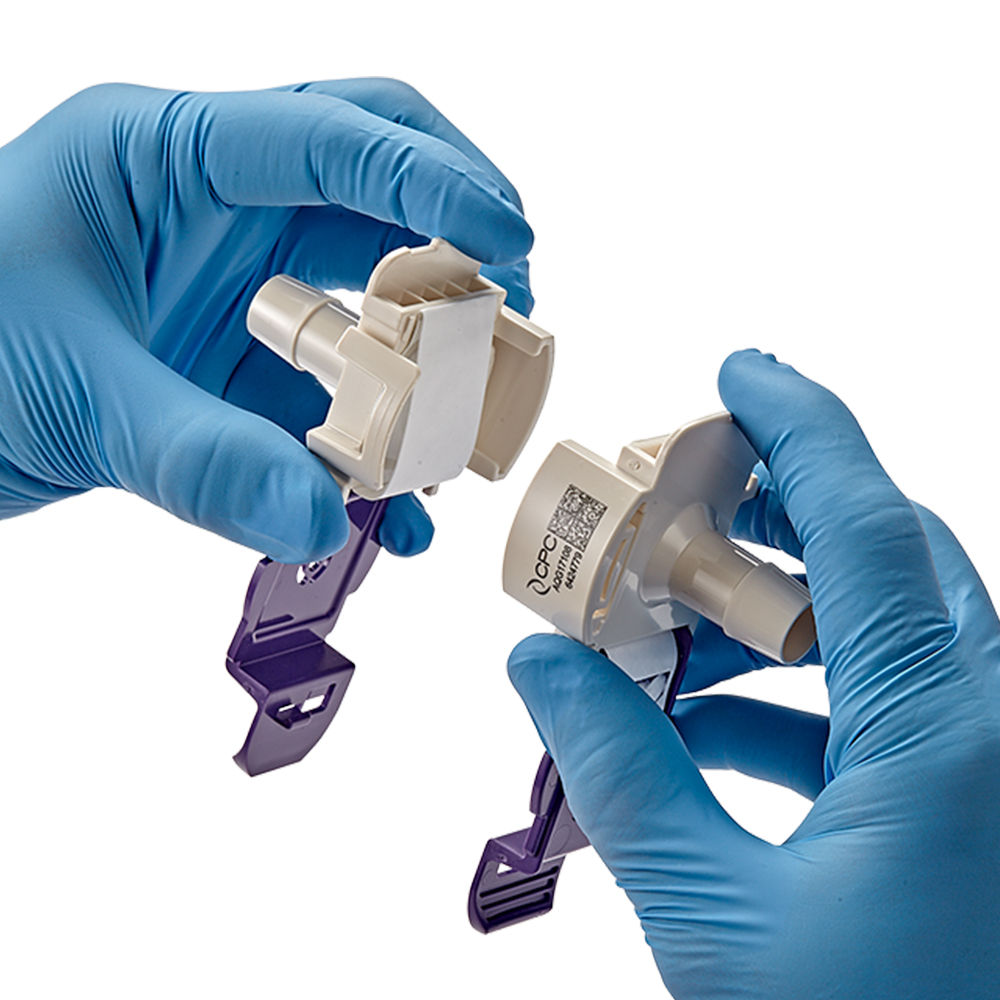

FLIP-CLICK-PULL: Intuitive three-step connection process reduces risk of operator error
Integrated Pull Tab Covers: Pull tabs act as protective cover reducing part complexity and ensure simultaneous removal of both membranes
Robust Construction: Repeatable and reliable performance with no additional hardware required
Chemical Compatibility: AseptiQuik PPSU enables genderless connection for a greater range of chemical applications.
The "CPC Click": Audible confirmation of assembly with no additional hardware required
pH range: AseptiQuik PPSU versatile connections across downstream processes with a pH range from 2 to 12

SPEC SHEETS

AseptiQuik G Assembly Video

Genderless AseptiQuik® G Connectors enable quick, secure sterile connections, even in non-sterile environments allowing for interchangeable terminations from 1/4" to 3/4".

CPC Aseptiquik G Best Practices

AseptiQuik® G Connectors' easy-to-use genderless design simplifies system integration and minimizes the risk of operator error. The connectors’ robust construction provides enhanced user confidence and reliable performance without the need for clamps, fixtures or tube welders.


OPERATING CONDITIONS (FLUID TRANSFER)
Pressure:	Up to 60 psi, 4.1 bar
Pressure:	Up to 75 psi, 5.1 bar for 48 hours
Temperature:	34°F to 104°F (1°C to 40°C)


STERILIZATION
Gamma Standard (blue) and PPSU (purple) Version:	Up to 50 kGy irradiation
AutoClave (white, High Temp(HT) Version):	High Temp (HT) Version: Up to 266°F (130°C) for 60 minutes


CV VALUE
Cv 1.74 for ¼” to ¼”
Cv .19 for 1/8” to 1/8”
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.


MATERIALS

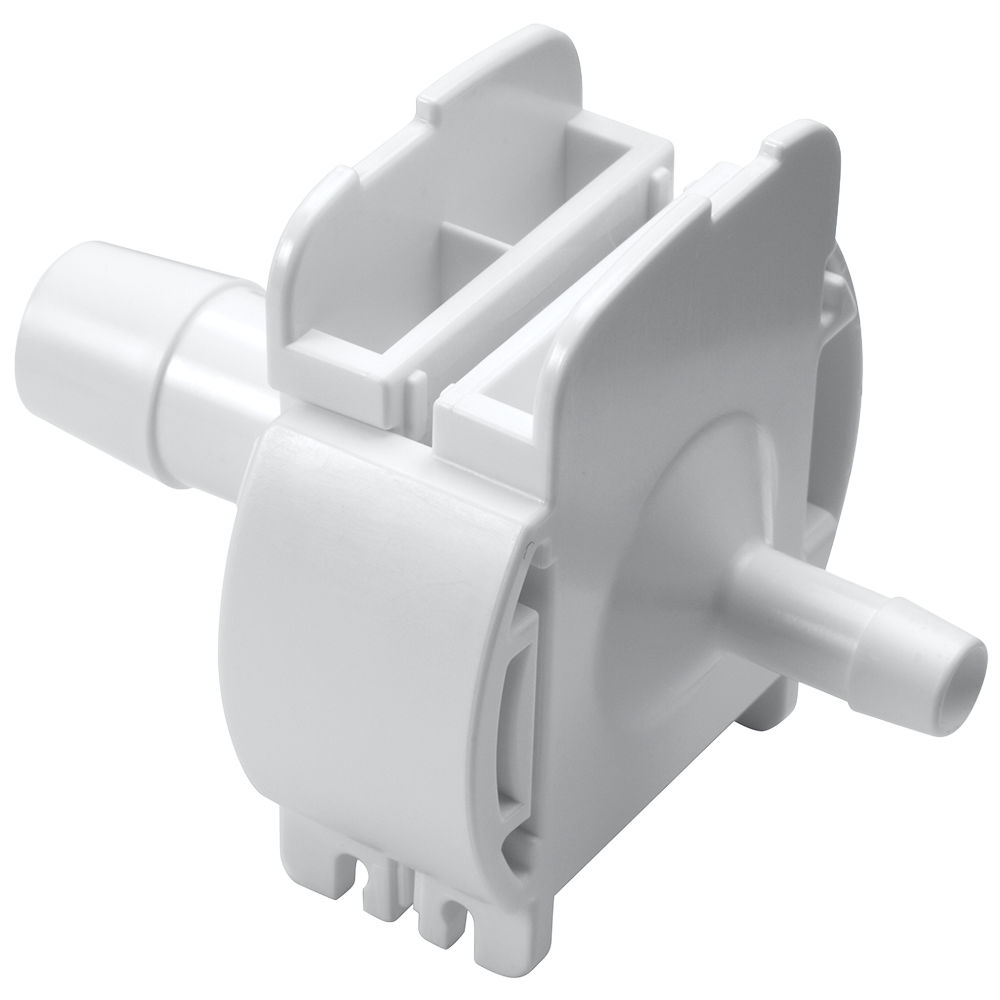

Main Components:	Polycarbonate (white)
Main Components:	Polyphenylsulfone - PPSU

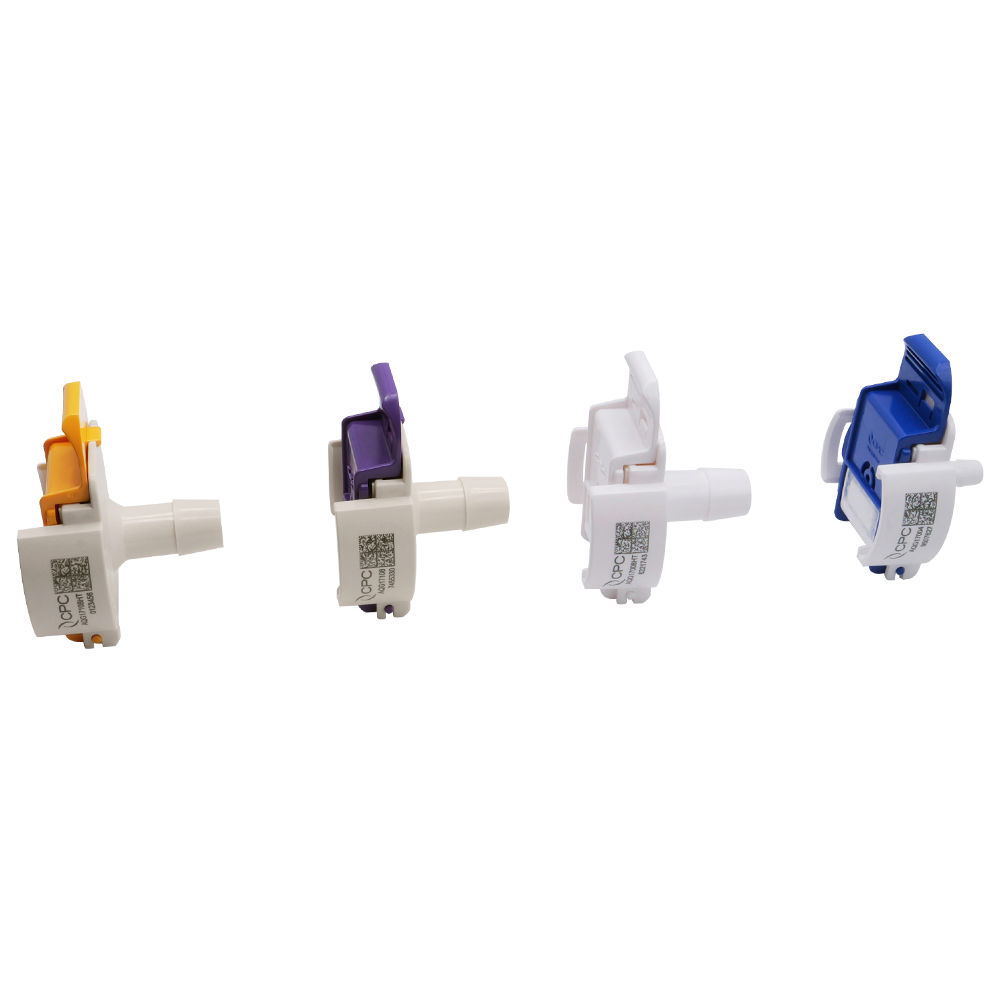

Pull Tabs/Caps:	Polycarbonate (blue, standard version
	Polycarbonate (white, HT version
	Polycarbonate (purple and gold tabs, PPSU versions)
Seals:	Silicone (clear), platinum-cured
Membrane:	Polyethylene (standard version, PPSU version)
Membrane:	Hydrophobic polyethersulfone with PTFE strip (HT versions)


OTHER
Termination Size:	1/4", 3/8”, 1/2", 3/4" ID hose barb (6.4mm, 9.5mm, 12.7mm, 19.0mm) and 3/4", 1-1/2" sanitary

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.

Assets & Downloads

SPEC SHEETS

AseptiQuik G Assembly Video

Genderless AseptiQuik® G Connectors enable quick, secure sterile connections, even in non-sterile environments allowing for interchangeable terminations from 1/4" to 3/4".

CPC Aseptiquik G Best Practices

AseptiQuik® G Connectors' easy-to-use genderless design simplifies system integration and minimizes the risk of operator error. The connectors’ robust construction provides enhanced user confidence and reliable performance without the need for clamps, fixtures or tube welders.

Specifications


OPERATING CONDITIONS (FLUID TRANSFER)
Pressure:	Up to 60 psi, 4.1 bar
Pressure:	Up to 75 psi, 5.1 bar for 48 hours
Temperature:	34°F to 104°F (1°C to 40°C)


STERILIZATION
Gamma Standard (blue) and PPSU (purple) Version:	Up to 50 kGy irradiation
AutoClave (white, High Temp(HT) Version):	High Temp (HT) Version: Up to 266°F (130°C) for 60 minutes


CV VALUE
Cv 1.74 for ¼” to ¼”
Cv .19 for 1/8” to 1/8”
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path.


MATERIALS
Main Components:	Polycarbonate (white)
Main Components:	Polyphenylsulfone - PPSU
Pull Tabs/Caps:	Polycarbonate (blue, standard version
	Polycarbonate (white, HT version
	Polycarbonate (purple and gold tabs, PPSU versions)
Seals:	Silicone (clear), platinum-cured
Membrane:	Polyethylene (standard version, PPSU version)
Membrane:	Hydrophobic polyethersulfone with PTFE strip (HT versions)


OTHER
Termination Size:	1/4", 3/8”, 1/2", 3/4" ID hose barb (6.4mm, 9.5mm, 12.7mm, 19.0mm) and 3/4", 1-1/2" sanitary

WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
