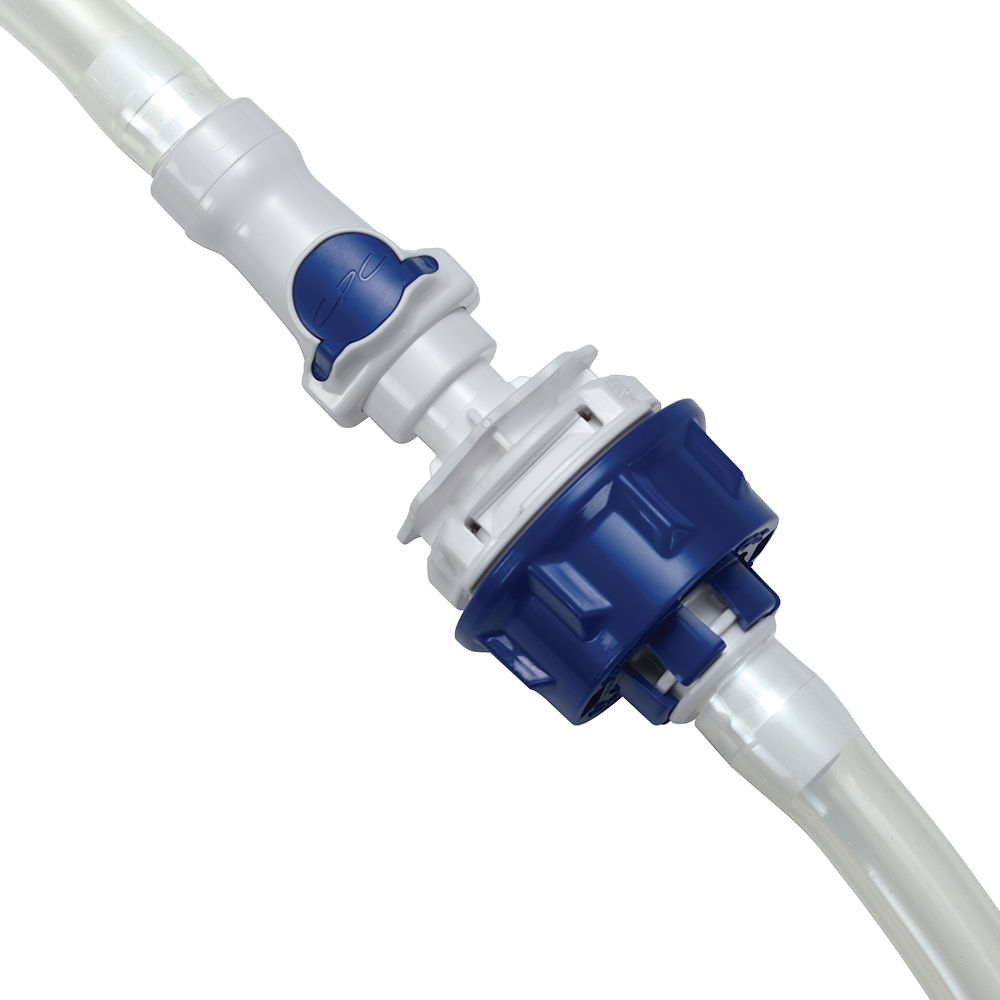

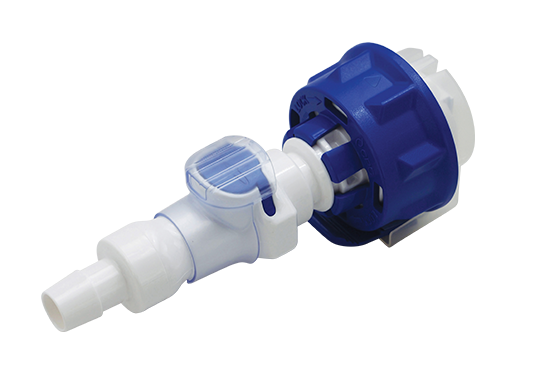

AseptiQuik® C DC
Sterile Connectors
AseptiQuik® C DC
Sterile Connectors
.png.thumb.1280.1280.png)
.png.thumb.1280.1280.png)
.png.thumb.1280.1280.png)
.png.thumb.1280.1280.png)
OPERATING CONDITIONS (FLUID TRANSFER) |
|
|---|---|
|
Pressure: |
Up to 60 psi, 4.1 bar |
|
Temperature: |
39°F to 104°F (4°C to 40°C) |
|
Typical Flow Rate: |
Cv~ .077 to 1.9 |
CV VALUE |
|
|---|---|
|
Cv~0.77 max (1/4" hose barb) |
|
|
Cv~1.1 max (3/8" hose barb) |
|
|
Cv~1.2 max (1/2" hose barb) |
|
|
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path |
STERILIZATION |
|
|---|---|
|
Gamma: |
Up to 50kGy irradiation |
Materials |
|
|---|---|
|
Connector: |
Polycarbonate (white) |
|
Lock Ring and Thumb latch: |
Polycarbonate (blue) |
|
Pull Tabs: |
Polycarbonate (blue, standard version) |
|
Caps: |
Polypropylene (clear) |
|
Seals: |
Silicone (clear), platinum-cured |
|
Membrane: |
Polyethylene (standard version) |
|
Springs: |
316 Stainless steel |
Other |
|
|---|---|
|
Termination Size: |
1/4" (6.4mm), 1/2"(12.7mm) and 3/8" (9.5mm) hose barb |
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
OPERATING CONDITIONS (FLUID TRANSFER) |
|
|---|---|
|
Pressure: |
Up to 60 psi, 4.1 bar |
|
Temperature: |
39°F to 104°F (4°C to 40°C) |
|
Typical Flow Rate: |
Cv~ .077 to 1.9 |
CV VALUE |
|
|---|---|
|
Cv~0.77 max (1/4" hose barb) |
|
|
Cv~1.1 max (3/8" hose barb) |
|
|
Cv~1.2 max (1/2" hose barb) |
|
|
Cv values represent the approximate expected flow rate in gallons per minute of water at room temperature for a 1 PSI pressure drop. The flow is generally constrained by the smallest diameter, which in some cases will be the termination diameter and not the Nominal Flow Path |
STERILIZATION |
|
|---|---|
|
Gamma: |
Up to 50kGy irradiation |
Materials |
|
|---|---|
|
Connector: |
Polycarbonate (white) |
|
Lock Ring and Thumb latch: |
Polycarbonate (blue) |
|
Pull Tabs: |
Polycarbonate (blue, standard version) |
|
Caps: |
Polypropylene (clear) |
|
Seals: |
Silicone (clear), platinum-cured |
|
Membrane: |
Polyethylene (standard version) |
|
Springs: |
316 Stainless steel |
Other |
|
|---|---|
|
Termination Size: |
1/4" (6.4mm), 1/2"(12.7mm) and 3/8" (9.5mm) hose barb |
WARNING: Pressure, temperature, chemicals and operating environment can affect the performance of couplings. It is the customer’s responsibility to test the suitability of Colder products in their own application conditions.
AseptiQuik C DC Products
