AQGSTC2330900HT

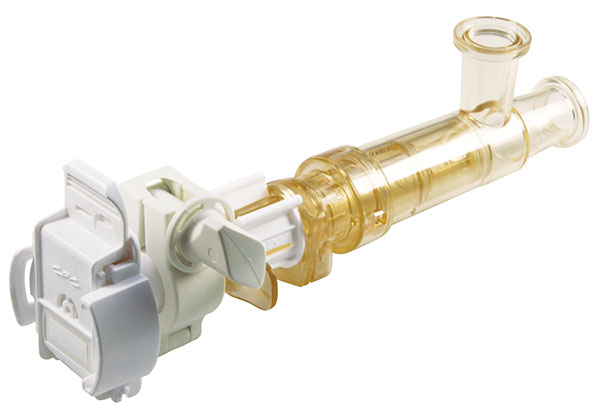

3/4 Sanitary AseptiQuik G STC - High Temperature
Download CAD Details
Request A Sample
ADD TO QUOTE REQUEST

Product Information

You are responsible for understanding your applications and fluids to determine the suitability in the use of all CPC products.

For your convenience, we offer this data which has been compiled from 3 main sources:

  1. Chemical Resistance Guides published by COMPASS© Publications
  2. Chemical Resistance guide published by VICTREX, the manufacturer of PEEK™
  3. Chemical manufactures


CPC is not responsible for the accuracy or completeness of this data, or your test results. CPC assumes no obligation of liability in the connection with its use.

CPC has small lot purchases (less than bag quantity) available for sale for your testing purposes.



Select a Chemical

Please select a chemical from one of the drop downs below. Once a chemical is selected, you will be able to filter the results by connector components.

    OR
      OR

        NOTE: All temperatures are in degrees Fahrenheit. Conversion: °C = (°F - 32) / 1.8

        Interpretation Of Test Data (In 30 days to 1 year of exposure)

         SWELLINGLOSS OF TENSILE STRENGTHDESCRIPTION OF CHEMICAL ATTACK
        A<10%  < =15%<15%  < =15%Excellent, little or no swelling, softening or surface deterioration
        B<15%  < =30%<30%  < =30%Good chemical resistance, minor swelling, softening or deterioration
        C<20%  < =50%<50%  < =60%Limited chemical resistance, moderate attack, conditional service
        NR<20%  < =50%<50%  < =60%Severe attack, not recommended for use

        WARNING:
        You are responsible for understanding your applications and fluids to determine the suitability in the use of all CPC products. For your convenience, we offer this data which has been compiled from 3 main sources: 1) the Chemical Resistance Guides published by COMPASSE© Publications 2) the Chemical Resistance guide published by VICTREX, the manufacturer of PEEKT™ and 3) the chemical manufactures themselves. CPC is not responsible for the accuracy or completeness of this data, or your test results. CPC assumes no obligation of liability in the connection with its use. CPC has small lot purchases (less than bag quantity) available for sale for your testing purposes.

        NOTES:
        *PVDF may discolor after prolonged exposure in Potassium Hydroxide.
        *Polypropylene may discolor after prolonged exposure in Sulfuric Acid.
        **Flourination of HDPE has been shown to dramatically improve the chemical resistance of HDPE material with certain chemicals. Samples are available to allow customers to evaluate in their specific application. Contact CPC Inside Sales for assistance.
        HIFLUOR® Fluorinated FKM will often be compatible in applications where standard FKM is 'NR". It bridges the price gap between FKM & FFKM perfluoroelastomers and is available only by special order (minimums may apply). Contact CPC Inside Sales for assistance.
        Viton®, Kalrez® & Teflon® are registered trademarks of Dupont, PEEKT™ is a trademark of Victrex USA, Inc, Chemraz® is a registered trademark of Green Tweed, Simriz® is a registered trademark of International Seal, Hifluor® is registered trademark of Parker Hannifin.

        Primary Material:
        Polycarbonate, USP Class VI, ADCF
        Material Finish:
        Molded White
        Operating Pressure Range:
        Steam Position: Up to 35 psi, 2.4 bar / Flow Position: Up to 20 psi, 1.4 bar
        Color:
        White with white pull tab
        Mounting Option:
        Free Floating
        Sterilization Methods:
        Gamma, autoclave
        Temperature Range:
        39°F - 104°F (4°C - 40°C)
        Seal Material:
        Silicone, platinum-cured
        Mating Type:
        Genderless
        Bag Quantity:
        1
